Product Details:
Payment & Shipping Terms:
|
| Bran: | Dongfeng, | Engine: | Cummins, Yuchai, Chaochai |
|---|---|---|---|
| Gearbox: | 6 Forward & 1 Reverse | Mixer Capacity: | 5CBM, 5000Liter, 6CBM, 6000 Liters |
| Hydraulic Motor: | EATON, PMP, | Hydraulic Pump: | EATON, PMP, Bonfiglioli, |
| Reductor: | ZF, PMP,Bonfiglioli,Sauer | ||
| Highlight: | self mixing concrete truck,concrete mixing transport trucks |
||

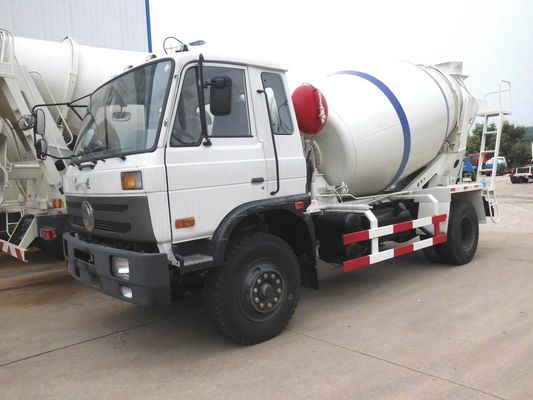

6-7Cubic Meters Ready Mixer Concrete Transportation Mixer Truck
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman,
2. High Tension Steel Q345B Tank Material in 5mm body & 6mm End plate.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Specifications of 6-7CBM Concrete Mixer Truck
| Item No. | Parameters | ||
| Overall Dimension | 7900x2490x3450 mm | ||
| Gross Vehicle Weight | 13950 kg | ||
| Curb Weight | 6950 kg | ||
| Loading Weight | 7000 kg | ||
| Wheel Base | 4500 mm | ||
| Front/rear Tread | 1940 /1860 mm | ||
| Approach/Departure Angle | 34/18 degree | ||
| Front Axle | 1 x 5,000 kg | ||
| Rear Axle | 1 x 10,000 kg | ||
| Cabin | RHD Dongfeng Cabin, Front Tipping with Air Conditioner. | ||
| Engine | Cummins, Diesel Engine B190 33, EURO III, 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Engine Horsepower | 190 HP | ||
| Displacement | 5.900 L / 5900cc | ||
| Gearbox | 6 Forward Gear & 1 Reverse Gear | ||
| Brake | Automatic Air-cut Brake | ||
| Max Driving Speed | 90 Km/h | ||
| Tire | 10.00R20, 6 pieces with one spare | ||
| Mixer Drum Capacity | 6 Cubic Meters | ||
| Tanker Material: | Q345 high tensile carbon steel, 6mm end plate, 5mm mixer body. | ||
| Hydraulic Pump | Italian PMP Brand | ||
| Hydraulic Motor | Italian PMP Brand | ||
| Reducer | Italian PMP Brand | ||
| Upper Mixing System | |
| Volume | 6 CBM |
| Water Supply Patterns | Air Pressure |
| Material | Q345 |
| Thickness | 6 mm Tank End plate, 5mm for Tank Body, Automatic Welding |
| Water Tank Capacity | 350 (L) |
| Rotation Speed | 0-15 (r/m) |
| Feeding speed | 3 (M3/min) |
| Discharging Speed | 2 (M3/min) |
| Material Remaining Ratio | ≤0.5% |
| Effective Mixing Volume | 6 CBM |
| Mixing Capacity | 6 CBM |
| Angle of Inclination | 15° |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of concrete mixer trucks I can order from your company?
A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied concrete mixer truck to any overseas companies?
A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
