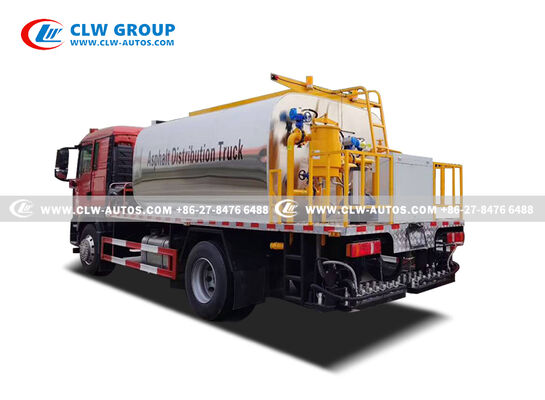

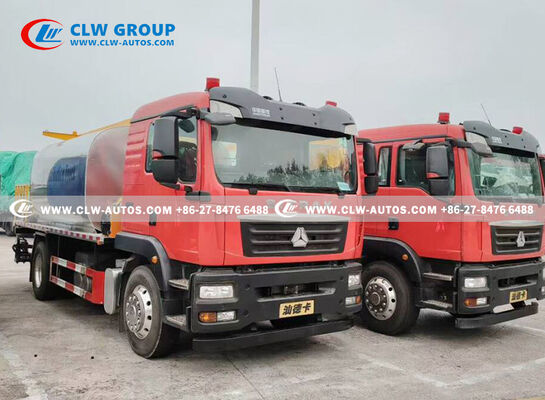

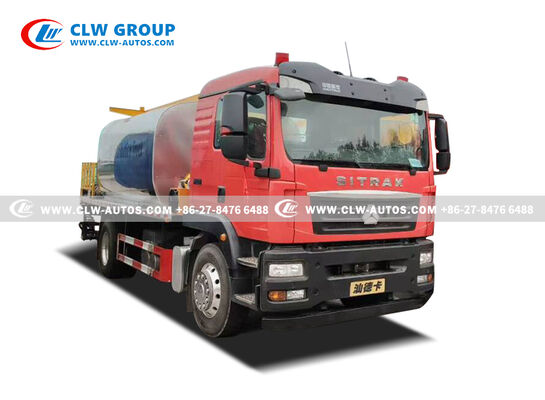

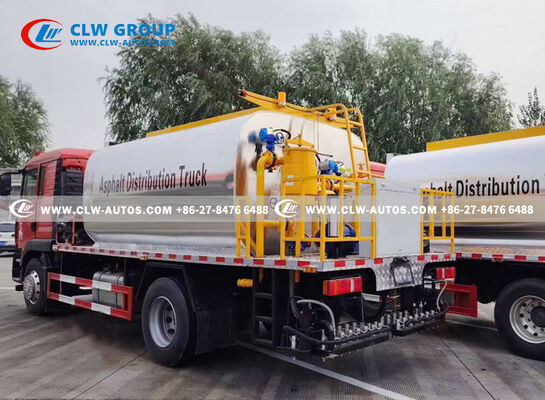

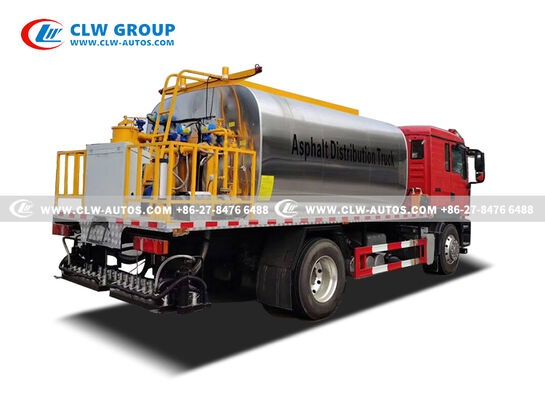

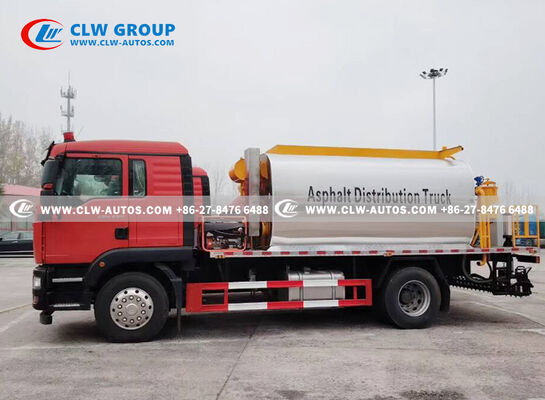

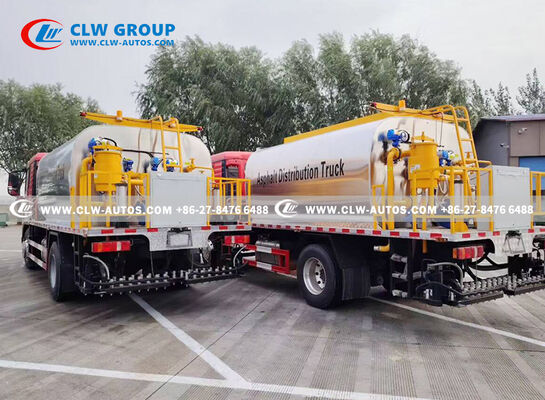

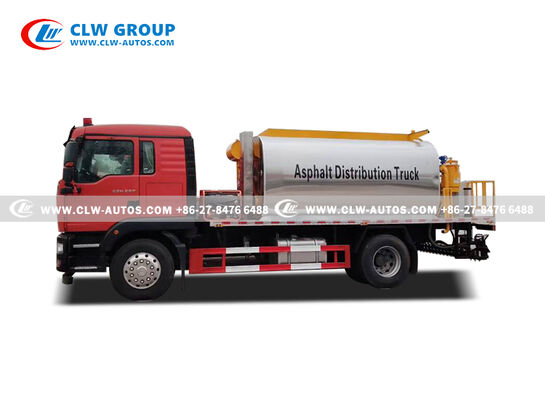

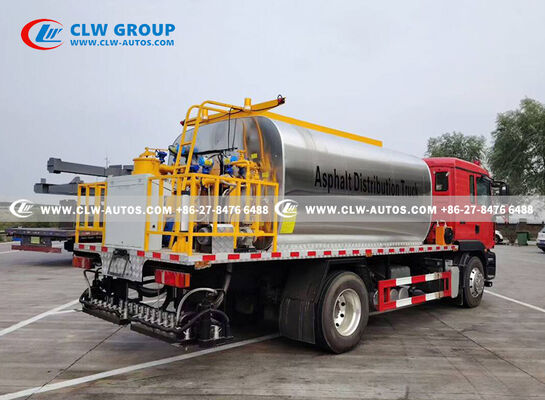

Sinotruk Sitrak 10,000L Intelligent Asphalt Distributor with RIELLO Burner and Proportional Pump Control

The Sinotruk Sitrak Intelligent Asphalt Distributor is a professional-grade computerized spraying vehicle designed for road construction contractors and highway agencies requiring precise, uniform asphalt application. Built on the robust Sinotruk Sitrak 4x2 heavy-duty chassis with a 3,800mm wheelbase and a Euro V compliant diesel engine producing 115kW at 2800rpm, this vehicle features a 10,000-liter tank with RIELLO burner heating system.

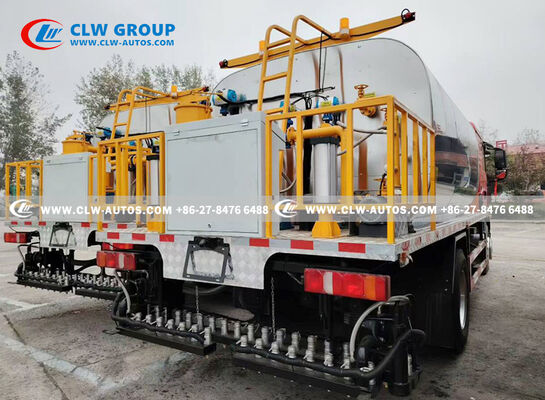

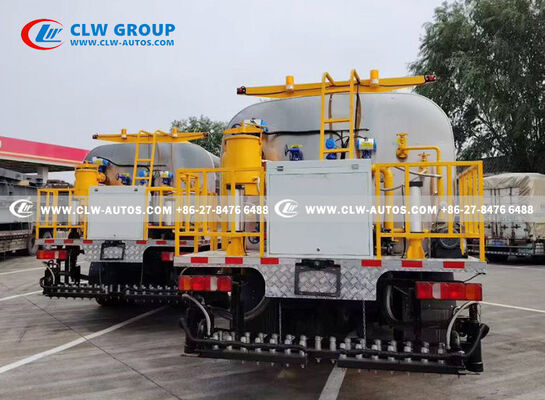

Each spray nozzle can be controlled individually from the driving cab via pneumatic cylinders, allowing operators to freely adjust spraying width from 0 to 4,000mm with sharp start and stop capability. Fan-shaped spray nozzles provide perfect spraying effect and good uniformity. The asphalt pump adopts proportional control of high precision to realize accurate control of spraying rate from 0.2 to 3.0 kg/m².

• Sinotruk Sitrak 4x2 Euro V Chassis: 3,800mm wheelbase, 115kW/2800rpm diesel engine, 8.25R16 tires, overall 6,960×2,200×2,410mm, total mass 9,400kg
• 10,000L Tank: High-quality carbon steel, RIELLO burner heating system
• Individual Nozzle Control: Each nozzle controlled pneumatically from cab. Adjustable spraying width (0-4,000mm) with sharp start/stop. Fan-shaped nozzles for perfect uniformity
• Proportional Pump Control: High precision spraying rate control (0.2-3.0 kg/m²). Engine cooling water heating for easy starting. Low-speed motor drive for energy saving
• Pipeline Cleaning System: Diesel oil circulation + high-pressure air purging to prevent nozzle blockage
• Simple Control System: Easy to maintain and repair. Max travel speed 80 km/h
• Applications: Highway tack coats, chip seals, pavement preservation, bridge waterproofing

• Highway construction and pavement laying
• Asphalt overlay tack coat application
• Chip seal and surface treatment
• Pavement preservation and maintenance
• Bridge deck waterproofing
• Modified asphalt and emulsified asphalt spraying
