FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction

Detailed Product Description
Highlight:

10CBM Capacity Asphalt Distributor Truck

,

Computer-Controlled Spray Accuracy Asphalt Sprayer Truck

,

RIELLO Burner Road Construction Truck

FAW J6L Intelligent Asphalt Distributor | Flawless Roads Start Here
Stop wasting asphalt. Start paving with precision. The FAW J6L 10CBM Asphalt Distributor Truck delivers computer-controlled spray accuracy, rapid heating for any binder type, and a rugged FAW chassis built for the toughest road projects. From highways to rural roads, get uniform coverage, less waste, and faster job completion.
Overview
Whether you're laying down a highway or repairing a rural road, consistent binder application makes all the difference. The FAW J6L Intelligent Asphalt Distributor takes the guesswork out of spraying. With an automatic system that adjusts spray volume to your exact speed, you get a perfectly even coat every time—no streaks, no waste, no rework. Backed by a powerful Italian RIELLO burner and a high-viscosity pump, this machine handles everything from standard asphalt to tough modified binders with ease. Plus, a built-in cleaning system means less downtime and longer equipment life.
Why Choose This Distributor?
  • Set It. Spray It. Forget It. The intelligent control system does the math for you. Program your spray width, volume, and binder type—the computer automatically maintains perfect consistency, even when your speed changes.
  • Handles Any Binder, Anywhere. Hot asphalt, emulsified, cutback, or high-viscosity modified asphalt—the RIELLO burner and thermal oil system deliver precise temperature control to keep materials flowing smoothly, even in demanding conditions.
  • Built for the Long Haul. The FAW J6L 350hp chassis provides a solid foundation, while the QGB insulated pump, 34 precision nozzles, and foldable spray bar are designed for heavy daily use.
  • Clean-Up Made Simple. Asphalt solidification is a thing of the past. The high-pressure air and diesel cleaning system flushes every line and nozzle after each job, protecting your investment and cutting maintenance time.
  • Two Ways to Spray: Use automatic mode for main road applications, or grab the handheld spray gun with 6-meter hose for tight corners, small patches, and hard-to-reach areas.
Technical Specifications
Asphalt Tank
Asphalt type Hot asphalt, SBS modified asphalt, emulsified asphalt
Tank volume 10CBM / 10m³
Tank material High quality carbon steel
Intermediate insulation layer 50mm rock wool insulation layer, ≤12℃/8h
Tank Outside covering 1mm Stainless plate
Asphalt Spaying width 4.5 meters
Asphalt Spaying volume 0.1~3.2 L/㎡
Driving speed when spaying 2~16 km/h
Hydraulic System
Hydraulic pump Heifei Changyuan brand
Driving Motor AKS05-130 (Ningbo)
Proportional valve Tianwan Brand, EFBG-03-160-HF
Bitumen Sprinkler System
Asphalt pump QGB680/0.6
Flow rate: 40m³/h
High-viscosity insulation asphalt pump
Asphalt sprinkler nozzle 34 pcs (one manual button controling for one nozzle)
Hand spray gun 6 meters metal hose+spray gun, suitable for small area and corner construction conditions.

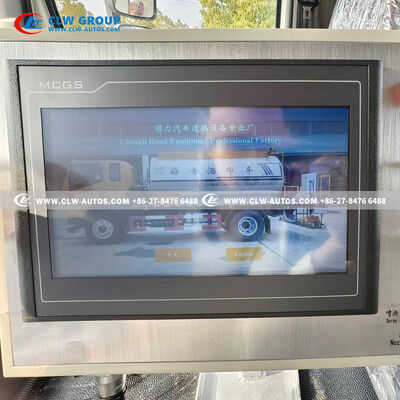

Control System

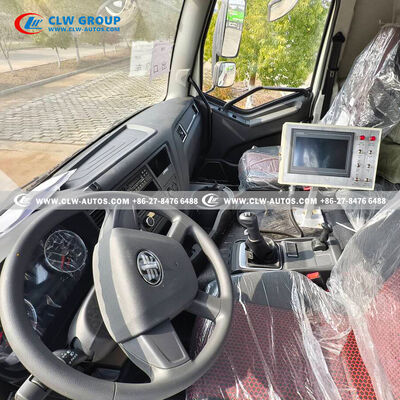

Control Method Controlled inside truck cabin and at rear working platform
Temperature sensor WZP-230, Chinese brand from shanghai
Speed Sensor GTS211B-N016
Heating System
Heating method Thermal oil circulation eating
Burner RIELLO G20/Italy brand
Radiator RISEN brand
Heat transfer oil pump RY40-25-160 from Hebei brand
Gasoline generator 10kw
Low level automatic alarming system 1pc
Ideal Applications
  • Road Construction Contractors: Deliver high-quality paving with less material waste and faster project turnaround.
  • Municipal Public Works: Handle city road maintenance, bridge waterproofing, and intersection repairs with a single versatile unit.
  • Airport & Industrial Paving: Achieve the uniform application required for runways, aprons, and heavy-duty industrial surfaces.
  • Rural & Remote Projects: Rely on the robust heating system and onboard generator to operate efficiently away from grid power.
  • Asphalt Paving Subcontractors: Differentiate your services with intelligent control technology that ensures consistent, professional results.
Product Gallery

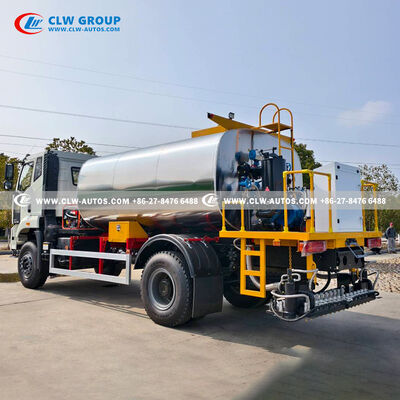

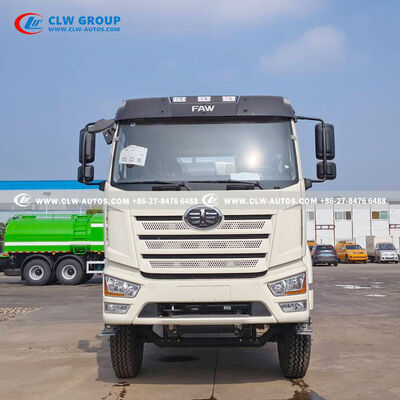

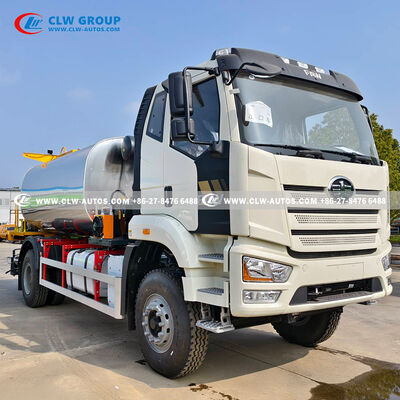

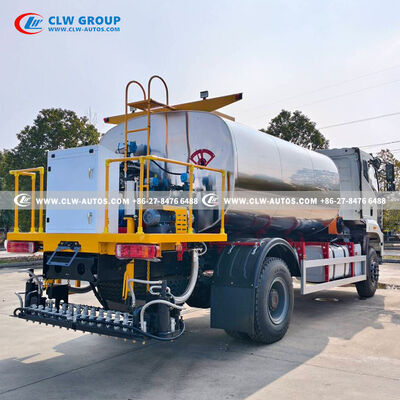

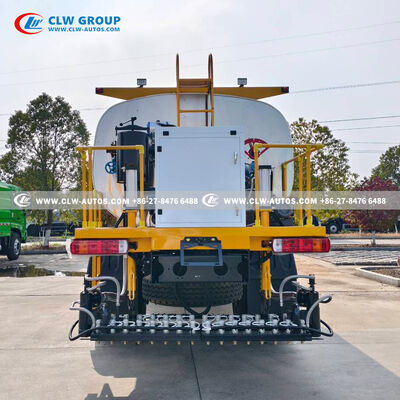

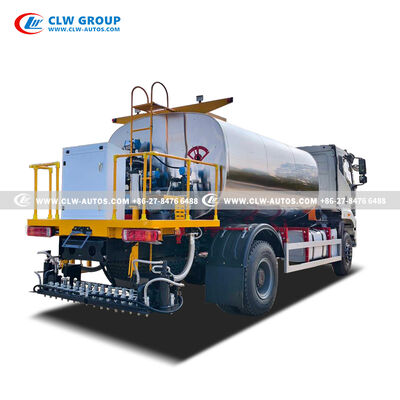

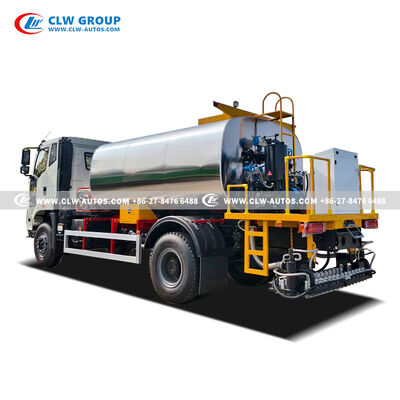

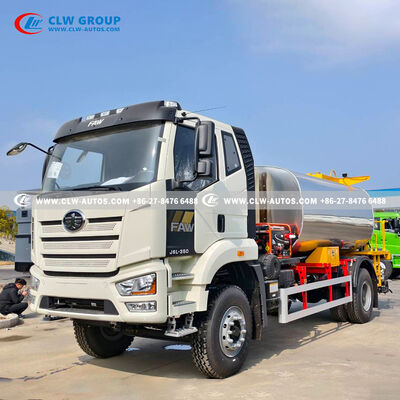

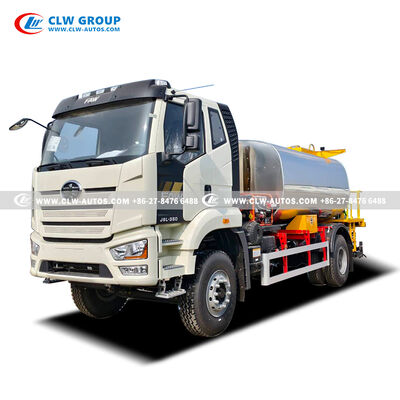

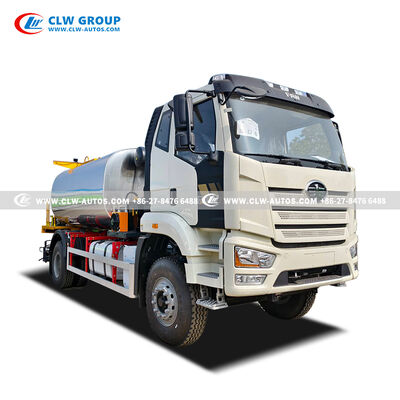

FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 0 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 1 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 2 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 3 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 4 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 5 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 6 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 7 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 8 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 9 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 10 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 11 FAW J6L 10CBM Asphalt Distributor Truck with Computer-Controlled Spray Accuracy and RIELLO Burner for Flawless Road Construction 12
