8 X 4 Dongfeng Ready Mix Concrete Mixer Trucks Anti Resistant High Capacity

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

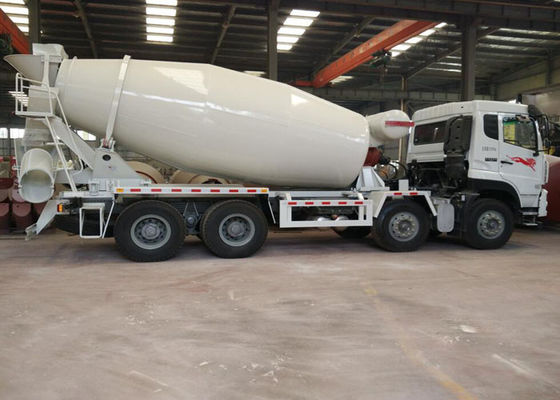

8 X 4 Dongfeng Ready Mix Concrete Mixer Trucks Anti Resistant High Capacity

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  8 X 4 Dongfeng Ready Mix Concrete Mixer Trucks Anti Resistant High Capacity

Product Details:

Place of Origin: China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5160GJBLH5

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Packaging Details: Naked package
Delivery Time: 30 days after received advance payments
Payment Terms: L/C, T/T
Supply Ability: 300units/month
Detailed Product Description
Mixing Volume: 10CBM/12CBM/14CBM; Drive Model: 8x4/12 Wheels/8*4
Wheelbase(mm): 1850+3400+1350 Mm Hydraulic Pump: International Brand/China Local Brand
Hydraulic Motor: International Brand/China Local Brand Reducer: International Brand/China Local Brand
Radiator: International Brand/China Local Brand Color: White; Blue; Green; Yellow; Customized
High Light:

self mixing concrete truck

,

concrete mixing transport trucks

12CBM Cement Mixer Truck 8X4 Dongfeng Ready Mix Concrete Mixer Truck for sale



Product Description

1. Purpose: For long distance or short distance transporting concrete in construction site.

2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.

3. Chassis: Dongfeng, SHACMAN or SINOTRUK 8x4 chassis for optional.

Condition New condition/Left hand drive/8X4
Chassis Brand DONGFENG
Curb weight(kg) 17490 kg
Wheelbase(mm) 1850+3400+1350 mm
Dimensions(mm) 10520*2500*3990 mm
Overhang (front/rear) (mm) 1500/2420 mm
Approach/Departure angle(°) 25/16°
Axle Load(kg) 5500/5500/11500/11500kg
Max. driving speed(km/h) 90 km/h
Clutch Reinforced diaphragm clutch
Brakes

Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear Power steering, hydraulic steering with power assistance
Tire

Number 10pcs with one spare tire
Specifications 10.00R20
Batter 2x12V
Starter motor capacity 24V
Fuel tank(L) 400 L
Transmission

9JS150T-B; 9 Forwards and 1 Reverse with PTO

Ratio: 12.65 8.38 6.22 4.57 3.4 2.46 1.83 1.34 1/13.22(R)

Gear oil capacity: 13L

Cabin It can accommodate three people, With Air conditioner
Engine Brand YUCHAI
Model YC6A290-50
Displacement(ml) 7520 ml
Power(kw)/Horsepower/(HP) 214 kw/290 HP
Emission standard Euro 5
Upper & Equipment
Mixer drum Max. Capacity 12.0 CBM
Material Manganese Steel, 5mm thickness
Specification Feeding Speed (m3/min) ≥2.8
Discharging Speed (m3/min) ≥1.2
Discharging Residual rate(%) ≤0.5
Mixing Tank Rotating Speed (RPM) 0-17
Discharging range 180° full range
Driving system Hydraulic Pump US SAUER DANFOSS brand
Hydraulic Motor US SAUER DANFOSS brand
Reducer Italy PMP brand
Radiator China local brand KLMAKE
Water supply system Water Tank Capacity (liters) 400
Water supply type Pneumatic water supply
Control system Control Way Connecting Rod Controlling
Structure Features

1. Mixer Tank and Vane use special anti-resistant material.

2. Discharging slot and feeding plate are the same anti-resistant material as the tank.

3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable.

4. With US and Italy brand driving system. Discharging fast, no residue.

Remarks 1. Color is optional



Products Show

8 X 4 Dongfeng Ready Mix Concrete Mixer Trucks Anti Resistant High Capacity 0

8 X 4 Dongfeng Ready Mix Concrete Mixer Trucks Anti Resistant High Capacity 1

8 X 4 Dongfeng Ready Mix Concrete Mixer Trucks Anti Resistant High Capacity 2

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What kinds of Concrete Mixer Truck products I can order from your company?

A: We can supply all size range concrete mixer truck and concrete mixer trailer, 3CBM, 4CBM, 5CBM, 6CBM, 8CBM, 10CBM, 12CBM and 2 axles and 4 axles concrete mixer semi trailer.



Q2: What is your production standard of Concrete Mixer Truck products? Whether your concrete mixer truck can export to USA, Canada and Europen countries?

A: Our CBU concrete mixer truck is produced as per China GB local standard, we can't export CBU concrete mixer truck to those countries, but we can export super structure to those market, we exported 30 units concrete mixer truck super structure to Canada market at the beginning of 2018.



Q3: Have you supplied Concrete Mixer Truck to any renowned companies?

A: Our group company is a regular strategic partner of some big construction company.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
