Product Details:
Payment & Shipping Terms:
|
| Brand: | SINOTRUK,HOWO,CAMC,NORTH-BENZ,FOTON,SHACMAN,ISUZU | Horsepower: | 450HP |
|---|---|---|---|
| Steering: | LHD,left Hand Drive | Capacity: | 20t,20tons,20ton,25ton,30ton.40ton,30t,40t |
| Driving Model: | 4X2,6X4,6-wheel,10-wheel | Color: | White,blue,yellow,red Amd Etc |
| High Light: | tractor head truck,tractor head trailer |
||

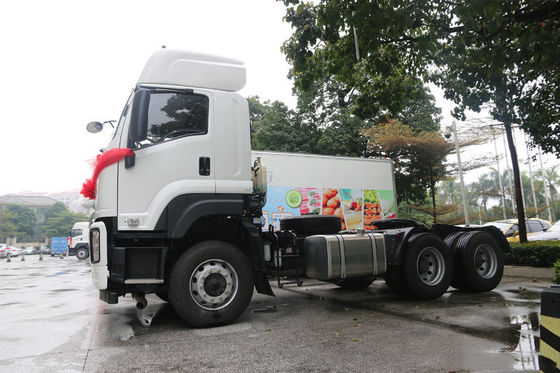

ISUZU VC46 10-wheel 6X4 350HP Tractor Head 40Tons ISUZU LHD Euro 4 Prime Mover
Product Description
Specifications of ISUZU VC46 10-wheel 6X4 350HP Tractor Head 40Tons ISUZU LHD Euro 4 Prime Mover
| Cabin |
Driving type 6x4 LHD high proof cabin,one sleeper bed, Air condition;70°hydraulically tillable to the front.
|
|
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6775x2490x3025 |
| Wheel base (mm) | 3425+1300 | |
| Wheel track (front/rear) (mm) | 2060/1855 | |
| Approach/Departure angle(°) | 16/20 | |
| Weight in KGS | Tare Weight | 8200 |
| Hauling Capacity | 40000 | |
| Front axles loading capacity | 7000 | |
| Rear axles loading capacity | 18000 | |
| Max. driving speed(km/h) | 102 | |
| Engine | Brand | ISUZU |
| Model | 6UZ1-TCG40 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 350HP | |
| Emission standard | EuroV | |
| Gearbox | FAST Manual Transmission, 12 forwards & 2 reverse | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 295R80R22.5,tubeless tire, 11 pieces including one spare tire | |
| Special Process | Tropicalized area use | |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
| Fifth wheel | 2.0 or 3.5 inch | |
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of tractor head I can order from your company?
A: There are various sizes and types of tractor heads,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied tractor heads to any overseas companies?
A: Yes,we offered tractor heads to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
