Product Details:
Payment & Shipping Terms:
|
| Brand: | SINOTRUK,HOWO,CAMC,NORTH-BENZ,FOTON,SHACMAN,ISUZU | Horsepower: | 340hp |
|---|---|---|---|
| Steering: | LHD,left Hand Drive | Capacity: | 20t,20tons,20ton,25ton,30ton.40ton,30t,40t |
| Driving Model: | 4X2,6X4,6-wheel,10-wheel | Color: | White,blue,yellow,red Amd Etc |
| High Light: | tractor head truck,10 wheeler tractor head |
||
North-Benz 340HP Tractor Head 40Tons LHD RHD Prime Mover 10-wheel 6X4 Beiben
Product Description
Specifications of North-Benz 340HP Tractor Head 40Tons LHD RHD Prime Mover 10-wheel 6X4 Beiben
| Wheel base (mm) | 3450+1450 | |||
| Curb weight (kg) | 8800 | |||
| Gross towing trailer weight (kg) | 40000 | |||
| Max Speed:(Km/h) | ≥90 | |||
| Dimension(Length*Width*Height) | 6935*2495*3340mm | |||
|
Engine
|
Model | WD615.34,water-cooled,four strokes,6 cylinders straight in line,turbocharged, 340hp | ||
| Fuel type | Diesel | |||
| Emission | EUROII | |||
| Displacement(L) | 9.726 | |||
| Fuel tanker capacity (L) | 400L | |||
| Clutch | Model | Φ430, Diaphragm Spring,Hydraulic boosting | ||
| Gearbox | Model | 12JS160T, mechanical type,12 Forward speed gear. | ||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||
| Assistant brake | Engine exhaust brake | |||
| Park brake | Potential springs pressing on middle and rear wheels | |||
| Steering system | Model | ZF8098 | ||
| Suspension system | Front Suspension | Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension, | ||
| Rear Suspension | Non-free standing stabilization spring, stabilization suspension, | |||
| Frame | Fish belly shape, variable width, variable sections | |||
| Cross section dimension of frame(mm) | 317×70×8.5+7mm | |||
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.921 | |||
| Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle Middle axle: HD7/016DGS-13/5.921 Rear axle: HL7/015DS-13/5.921
|
|||
| Tire | 12.00R20, 12R22.5 Tubeless Tire | |||
| Qty of tire | 11 | |||
| Electrical system | Battery | 2X12V/135Ah | ||
| Generator | 28V-35A | |||
| Starter | 5.4Kw/24V | |||
| Cab |

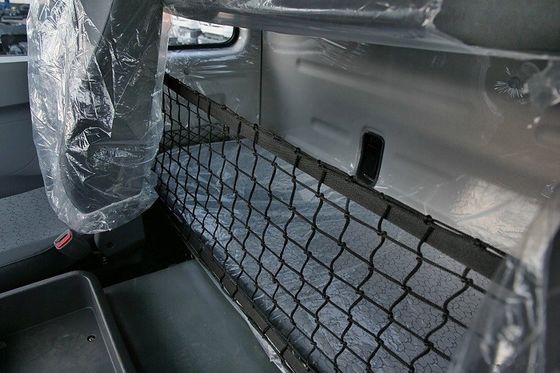

Long cab with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
|||
|
Interior trimming: High back/shock absorption seat for driver. Inner A/C, Manual door locks, manual glass lift |
||||
|
Exterior trimming: NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system. |
||||
| Fifth wheel | #50 single direction (JOST) | |||
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of tractor head I can order from your company?
A: There are various sizes and types of tractor heads,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied tractor heads to any overseas companies?
A: Yes,we offered tractor heads to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
