| Capacity: | 16CBM Or 18CBM | Truck Type: | Rear Loading,rear Loader,side Loading,garbage Compactor |
|---|---|---|---|
| Loading Ways: | Rear Loading | Compression Ratio: | 1.4-1.6 |
| Control System: | Automatic Or Manual | Truck Brand: | Dongfeng |
| Engine: | Cummins 210HP | Gearbox: | Manual 5 Forward & 1 Reverse |
| High Light: | side loader waste truck,refuse collection truck |
||

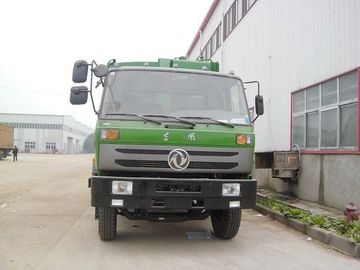

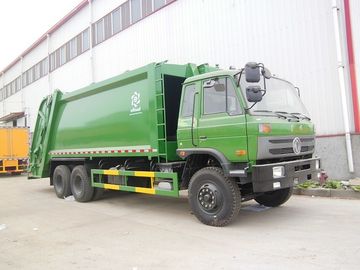

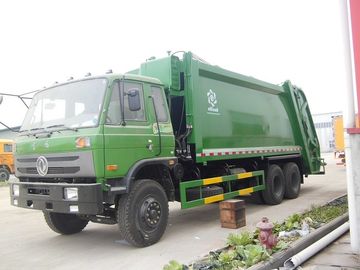

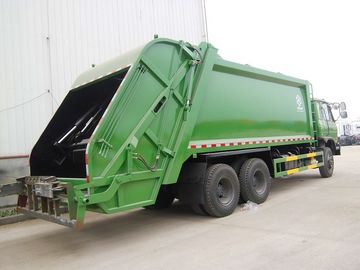

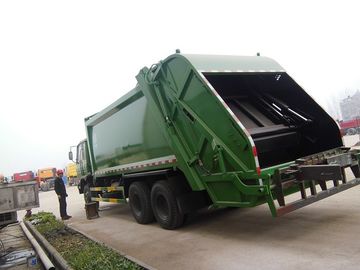

16cbm refuse compactor truck Dongfeng 6X4 residential refuse collection trucks
Specification of 16cbm refuse compactor truck Dongfeng 6X4 residential refuse collection trucks
| Item No. | Parameters |
| Overall Dimension | 9950x2500x3300 mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 14490kg |
| Payload | 10215kg |
| Wheel Base | 4350+1300 mm |
| Front/rear Tread | 1245/2850 mm |
| Approach/Departure Angle | 19/12 degree |
| Front Axle | 7000kg |
| Rear Axle | 2*18000kg |
| Engine | Cummins engine, 4 in-line cylinder |
| Engine horsepower | 210 HP EUROIII |
| Displacement | 5900mL (Diesel) |
| Max Driving Speed | 90 km/h |
| Cabin | 2~3Passenger allowed, Left Hand Driving, with Air Conditioner |
| Tire | 10R22.5 (11 pieces) |
| Garbage Box | |
| Volume | 18cbm |
| Capacity | 12,000kg |
| Box Material | Q235 |
| Box Thickness | 5mm |
| Equipment |
1.Equipped with hermetic dustbin, hydraulic system and operating system 2.Automatic compress and uninstall, sewage can be collected by the dump tank. 3.Cycling time＜14--18s |
| Painting and Logo | As required |
