Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU, Etc. | Engine Brand: | YUCHAI, 260HP |
|---|---|---|---|
| Gearbox: | Fast, 8Forwards & 1Reverse | Crane Brand: | SANY, XCMG, CHENGLI, Etc. |
| Crane Capacity: | 6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton, Etc. | Crane Boom Type: | Straight Telescopic Crane, Knuckle Crane |
| Boom Type: | Straight 4-Arm Telescopic Boom | Cargo Material: | Q235 Carbon Steel |
| Cargo Thickness: | Side 1.5mm, Bottom 2.5mm | Warranty: | 1 Year |
| Highlight: | truck mounted hydraulic crane,telescopic boom truck mounted crane |
||
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
Product Specification
| General Technical Parameters | |||
| Overall Dimension | 11950X2500X3850 (mm) | ||
| Gross Vehicle Weight | 25000(Kg) | ||
| Curb Weight | 14110(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Dongfeng | ||
| Drive model | 6*4 | ||
| Cabin | Single, Left Hand Driving, with air conditional | ||
| Number of Passengers | 3 | ||
| Engine | Model | YC6A260, 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR | |
| Power | 191KW/260HP | ||
| Emission standard | EUROⅢ | ||
| Displacement | 7250(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | Fast, 8Forwards & 1Reverse | ||
| Brake System | Air break | ||
| Wheel Base | 4350mm+1300mm | ||
| Front/Rear Axle Loading | 5000/10000(Kg) | ||
| Approach/Departure Angle | 23/12(°) | ||
| Overhang | 1250/3545(mm) | ||
| Tire | 11.00-20, | ||
| Max Driving Speed | 85(km/h) | ||
| Upperstructure Specification | |||
| Cargo Body | Dimension | 8500×2290×550(mm) | |
| Material | Q235 carbon steel | ||
| Cargo Thickness | Side 1.5mm, Bottom 2.5mm | ||
| Volume | 10m³ | ||
| Working System | Boom Type | Straight 4-Arm telescopic boom | |
| Crane | Crane Brand | SQ10SK3Q(XCMG) | |
| Range of Sprayer | 30m | ||
| Max Lifting Moment | 25(T.M) | ||
| Max Lifting Capacity | 10000(kg) | ||
| Max lifting height | 12(m) | ||
| Rotation angle | 360(°) | ||
| Installation space | 1150(mm) | ||
| Recommented power | 30(kw) | ||
| Maximum working pressure | 26(Mpa) | ||
| Max Flow | 63(l/min) | ||
| Crane weight | 3800(kg) | ||
| Oil tank capacity | 160(L) | ||
| Leg | Leg type | H type | |
| Leg Span | 2.28-5.9(m) | ||
| Hydraulic system | Pressure | 18(M pa) | |
| Capacity | 70(l) | ||
| Other Configuration | Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc. | ||
| Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. | ||

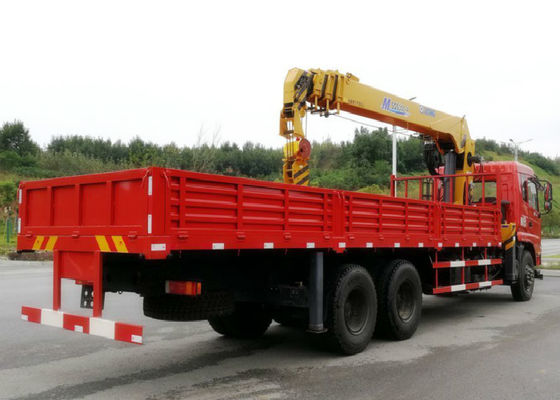

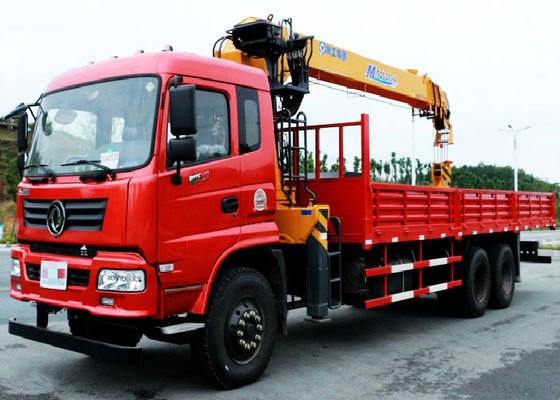

Product Show
Working Situation
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
