HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsGarbage Compactor Truck

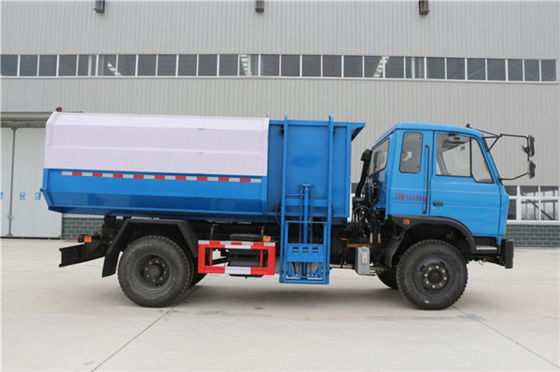

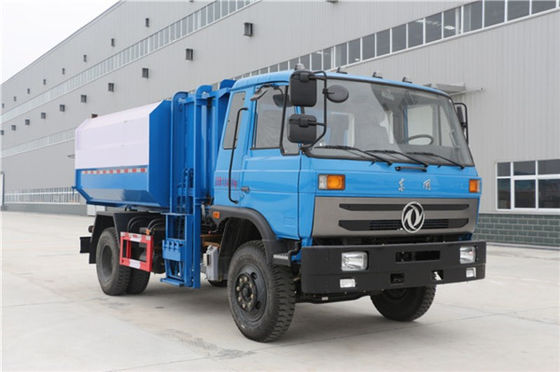

12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type

12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type
12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type 12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type 12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type 12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type 12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type 12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type

Large Image :  12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW, ChengLi
Certification: CCC,ISO,
Model Number: CLW508615

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 30-35 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Material: Carton Steel Side 4mm Button 4mm Brand: FOTON, HOWO, JAC, JMC, ISUZU
Wheel Base: 3950 Mm Horsepower: 170
Fuel Type: Diesel Components: Loading, Compressing,Discharging
Loading: Side Loading Bucket Discharge: Rear Door Open
High Light:

waste compactor truck

,

refuse collection truck



Carbon Steel 12CBM Side Loading and Rear Discharging Compactor Garbage Truck

Product Description

  • Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution
  • Easy Full Automatic Operation: computer control system for loading and unloading operations.
  • One Person Operation: Reducing sanitation working, greatly improves the working environment.
  • Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.


Specifications of 12 CBM Garbage Compactor Truck





Dongfeng 12CBM Side Loading Garbage Compactor Truck
Overall Dimension 7150×2500×3050 mm Gross Vehicle Weight 15800 kg
Curb Weight 5940 kg Loading Weight 9105 kg
Wheel Base 3950 mm Front / Rear Axle 5800 kg / 10000 kg
Cabin Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine Cummins
Engine horsepower 170 HP, EURO II
Max Driving Speed 90 km/h
Gear Box 8 Forward Gear, 1 Reverse Gear,
Tire 9.00R20 (6 pieces with one spare)
Garbage Bin Capacity 12 CBM
Material 4mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Side Bucket Lifting System
Garbage Compact Ratio 1/3 - 1/4
Control System One control Panel on the back, One Control system in back of Cabin
Dispensing System 1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time<14~18s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request




12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type 0

Working  Diagram
12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type 1

12CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type 212CBM Side Loading And Rear Discharging Compactor Garbage Truck Diesel Fuel Type 3





Working Show



  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment


FAQ

Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
