Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Isuzu, HOWO, Foton, Etc. | Traction Type: | 4*2 |
|---|---|---|---|
| Cabin: | 4 Doors With A/C | Engine Type: | 130HP/96kw |
| Fire Pump: | CB10/20 | Material Of Tank: | Carbon Steel |
| Tank Thickness: | 4/3/3mm | Suction Depth: | Deeper Than 7m |
| Tanker Capacity: | 2000L, 3000L | Fire Monitor: | 50m |
| Fire Monitor Rotation Angle: | 360 Degree | Warranty: | 1 Year |
| High Light: | 2000L Mini Rescue Truck,3cbm Mini Rescue Truck,3t Mini Rescue Truck |
||
Product Description
Fire truck (also called fire fighting vehicle, Fire engine, Fire fighting apparatus, Fire service truck, Fire and rescue truck, fire truck, fire fight truck, Foam fire tank truck, Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire fighting truck can be divided into many types:
1. According to vehicle size, There are mini fire fighting truck, Light fire fighting truck, Medium fire fighting truck, Heavy duty fire fighting truck.
2. According to chassis drive type, there are 4*2 fire fighting truck, 6*4 Fire fighting truck, 8*4 fire fighting truck, and off road type 4*4, 6*6 fire fighting truck.
3. According to chassis brand, There are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, Faw fight fighting truck, Shacman fire fighting truck, Sinotruk fire fighting truck, Mercdes fire fighting truck, etc.
4. According to fire agent, there are water tank fire fighting truck, dry powder fire fighting truck, water / Foam fire fighting truck.
Product Specification
| Drive Model | 4X2 | |
| Chassis | QL1050 | |
| Capacity | Water:2000L | |
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 6205X1900X2700 |
| Wheel base (mm) | 3360 | |
| Overhang (front/rear) (mm) | 1015/1830 | |
| Wheel track (front/rear) (mm) | 1504/1425 | |
| Approach/Departure angle(°) | 24/13 | |
| Weight in KGS | GVW. | 4085 |
| Curb Weight | 2050 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Model | Engine:4KH1-TC |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 130 HP | |
| engine capacity(ml) | 2999 | |
| Emission standard | Euro III | |
| Gearbox | 5 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 150 | |
| Tire | 7.00R15tire , 6 + 1(spare) | |
| Brakes | dual circuit compressed air brake | |
| Cab | four doors, double row | |
| Water tank material | high quality steel plate, antiseptic treatment | |
| PTO | Type: Sandwich type (full power PTO). Handle: Manual control Cooling type: Forced water cooling, Splash lubrication | |
| Piping Systerm | Suction pipeline, outlet pipeline, residual water pipeline and cooling water pipeline | |
| Fire Pump | 1. Tank capacity: 2000L 2. Fire pump model:CB10/20 3. The flow rate of fire pump: 20L/S 4. Pressure of fire pump : 1.0mpa 5. Fire cannon mode PS20 6. Fire cannon flow:20L/S 7. Water cannon shot range : ≥50m 8. Water cannon pressure: 1.0Mpa | |
| Other Equipment | 1. one ingate, with fast lock and open device 2. one overflow safety device and air breather 3. one fluid level gauge 4. one drain outlet, with ball valve, stainless steel valve element 5. two water filling nozzle outside of the tanker 6. one inlet piping connect to water tank and pump | |

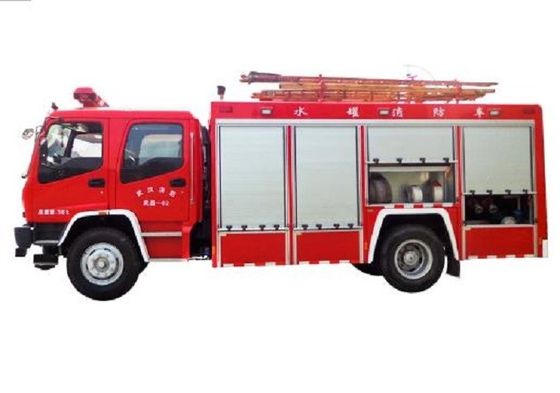

Reference Photos
Main Structure Diagram
Main Details and Tools

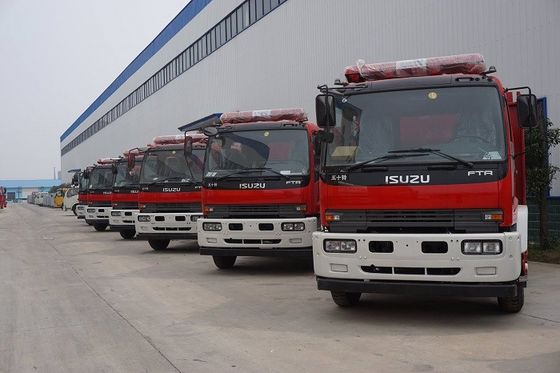

Different Capacities of Fire Truck
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.
FAQ
Q1: What kind of fire truck I can order from your company?
A: There are various types and sizes of fire trucks with different functions and different capacity, you can contact us and tell your request. We will recommend you suitable product.
Q2: Have you supplied fire truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.
Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
