Isuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo Box

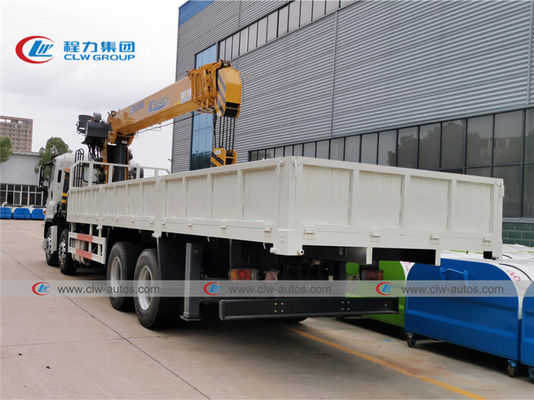

Large Image : Isuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo Box

Product Details:

Place of Origin:	Suizhou, China
Brand Name:	CLW /Weiyu Brand
Certification:	CCC, ISO
Model Number:	CLW5090JSQ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiable
Packaging Details:	Nude Pack with Waxing
Delivery Time:	10-20 Work Days
Supply Ability:	350 units/month

Contact Now

Detailed Product Description

Brand:	ISUZU	Engine Brand:	ISUZU
Engine Capacity:	350HP	Displacement:	5900ml/cc
Emission Standard:	Euro 2, Euro 3	Gearbox:	FAST 12 Forward & 2 Reverse
Crane Brand:	16Ton	Type:	Straight Arm
Box Size:	8600x2200x550mm	Box Material:	Q235
Material Thickness:	3mm Side, 4mm Bottom	Crane:	Straight Arm
Highlight:	350HP straight boom crane , 16t straight boom crane , CLW5090JSQ

ISUZU GIGA 16Ton Straight Boom Arm Crane Truck for heavy duty equipments delivery

Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

eneral Technical Parameters
Overall Dimension			11980×2500×3980 (mm)
Gross Vehicle Weight			24900(Kg)
Curb Weight			15800(Kg)
Chassis Specification
Chassis Brand		ISUZU
Drive model		8*4
Cabin		Double, Left Hand Driving, with air conditional
Number of Passengers		3
Engine	Model	4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
	Power	231KW/315HP
	Emission standard	EURO 4
	Displacement	8300(ml)
	Fuel type	Diesel
Gearbox		9Forwards & 1Reverse
Brake System		Air break
Wheel Base		1850+4600+1400 mm
Front/Rear Axle Loading		8000/11500(Kg)
Approach/Departure Angle		23/12(°)
Overhang		1250/3545(mm)
Tire		11.00R20
Max Driving Speed		90(km/h)

Upperstructure Specification
Cargo Body	Dimension		8600×2300×550(mm)
	Material		Q235 carbon steel
	Cargo Thickness		Side 1.5mm, Bottom 2.5mm
Working System	Boom Type		Straight 4-Arm telescopic boom
	Crane	Crane Brand	XCMG or SANY or CLW
		Range of Sprayer	30m
		Max Lifting Moment	25(T.M)
		Max Lifting Capacity	16000(kg)
		Max lifting height	12(m)
		Rotation angle	360(°)
		Installation space	1150(mm)
		Recommented power	30(kw)
		Maximum working pressure	26(Mpa)
		Max Flow	63(l/min)
		Crane weight	3800(kg)
	Oil tank capacity		160(L)
	Leg	Leg type	H type
	Leg	Leg Span	2.28-5.9(m)
	Hydraulic system	Pressure	18(M pa)
	Hydraulic system	Capacity	70(l)
Other Configuration	Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options	Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
