Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU, Etc. | Engine Brand: | Wd615.69, 336HP |
|---|---|---|---|
| Gearbox: | Fast, 10forwards And 2reverse | Crane Brand: | SANY, XCMG, CHENGLI, Etc. |
| Crane Capacity: | 6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton, Etc. | Crane Boom Type: | Straight Telescopic Crane, Knuckle Crane |
| Boom Type: | Straight 4-Arm Telescopic Boom | Cargo Material: | Q235 Carbon Steel |
| Cargo Thickness: | Side 2mm, Bottom 3mm | Warranty: | 1 Year |
| High Light: | Straight Telescopic boom Crane,HOWO Truck Mounted Telescopic boom Crane,8 ton stiff boom crane truck |
||
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
Product Specification
| Cabin | Driving type 6x4 | |
| HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 10350×2500×3800 |
| Carriage Size (L x W x H) mm | 6300×2300×600 | |
| Wheel base (mm) | 4600+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 16/12 | |
| Weight in KGS | Tare Weight | 14000 |
| payload | 27000 | |
| Front axles loading capacity | 1x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | SINOTRUK |
| Model | WD615.69 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 336 HP | |
| Emission standard | Euro 2 | |
| Gearbox | HW19710, 10 forwards gear & 2 reverse gear | |
| Steering | ZF8098 power steering | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Fuel tank | 400L | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Crane specifications | Brand : according to customer's requests. | |
| Type: Telescopic | ||
| Max lift capacity: 14000 kg | ||
| Max working radius 15.8 m, Max lifting height : 17.8 m | ||
14 T Telescopic crane
| TYPE | Max Lifting Capacity | Max Lifting Moment | Recommend Power Needed At Recommend Oil Flow | Max Oil Flow of Hydraulic System | Rated Pressure Of Hydraulic System | Oil Tank Capacity | Rotation Angle | Crane Weight | Installation Space |
| SQ14SK4Q | 14000KG | 35 T.M |
30 KW |
63 L/MIN |
26 MPA |
160 L |
All Rotation | 4800 KG |
1300 MM |

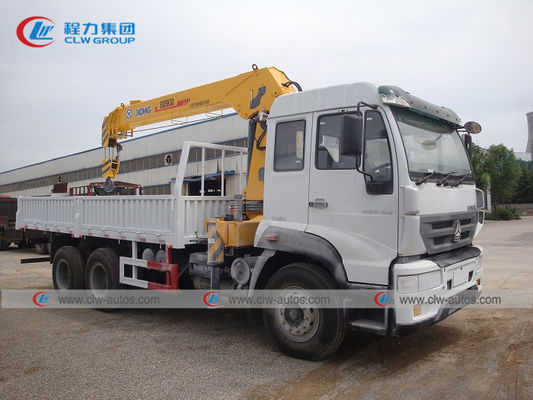

Reference Photos
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
