ISUZU FTR Lorry Mounted Straight Arm 10 Tons Palfinger Crane

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

ISUZU FTR Lorry Mounted Straight Arm 10 Tons Palfinger Crane

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  ISUZU FTR Lorry Mounted Straight Arm 10 Tons Palfinger Crane

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5160sqwyt

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 14250-48620USD/UNIT
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: ISUZU,HOWO,DONGFENG,Shacman Crane Type: Knuckle Boom/telescopic Boom Crane
Crane Capacity: 8tons,10tons,12tons,14tons Product Name: Truck Mounted Crane, 10Ton Mobile Mounted Truck Crane For Sale,four-section Arms Crane, Small Crane For Truck
Application: Construction, <8tons, Truck Crane Conidtion: Brand New
Engine Power: 205hp Driving Model: LHD/RHD
Crane Brand: Palfinger/XCMG/CLW
High Light:

10 Tons Palfinger Crane

,

ISUZU FTR Lorry Mounted Palfinger Crane

,

Straight Arm palfinger truck mounted crane

ISUZU FTR Lorry Mounted Straight Arm 10Tons Palfinger Crane,10tons Mounted Crane Truck

Function

--Lorry mounted crane(also called Truck with Crane, Truck Crane,truck mounted crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.



--Lorry mounted crane can be divided into various types as follows,

1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Lorry mounted crane;

2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Lorry mounted crane;

3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons Lorry mounted crane

4) According to crane type,there are telescopic/straight arm and knuckle/folding arm Lorry mounted crane





Feature

--Crane: We can supply International brand XCMG and PALFINGER for optional.

--Landing leg: Hydraulic control, top quality, easy for operation.

--Storage box: High quality carbon steel Q235

--Truck chassis: Japanese brand ISUZU Diesel engine truck chassis

--Tire: 10R22.5 tubeless tire with high trafficability.

--SPS25000 is designed with high-strength steel plate and hexagonal boom, featuring high strength, light dead weight and strong lifting capacity.

--Rated lifting capacity: 10 tons, arm length: 14 or 17.7 meters.

--Arm frame form: straight arm





Technical parameter of SPS25000 crane
Main technical parameter
Item Unit SPS25000B SPS25000C
Rated lifting weight Kg 10000 8000
Rated lifting moment T.m 25 25
Max outreach m 14 17.7
Max lifting height m 16.1 20.1
Length of the basic boom m 5.3 5.3
Length of the fully extended boom m 14.3 18.1
Numbers of the boom / 4 5
Profile method of the basic boom / Octagon Octagon
Range of the boom lifting angle . 0-75 0-75
Outrigger span mm 5600 5600
Recommended volume for the system L/min 70 70
Recommended oil tank volume L 200 200
Weight of the crane Kg 3820/3850 4110/4130
Operating pressure Mpa 27/34 27/34
Operating mode   Operated at land/Aerial operation Operated at land/Aerial operation




Why do you choose palfinger crane?



★Accurate positioning: smooth movement, accurate positioning, can complete high difficulty, high precision lifting tasks

Fuel saving: crane is 500-1000 kg light, and can be lifted under the state of engine idle, 30% fuel saving

Save trouble: the crane has a low failure rate and adopts a large number of maintenance-free designs. The maintenance is economical and simple, reducing the use cost by 30%

Save worry: timely and thoughtful service, one call to solve problems, save 30%-50% of maintenance cost

Strong operation capacity: the strongest lifting capacity, the extra-long lifting range, the operation capacity is increased by 10%-20%

Continuous operation: continuous operation under high temperature and heavy load environment, the operation efficiency can be increased by more than 30%.





Reference picture

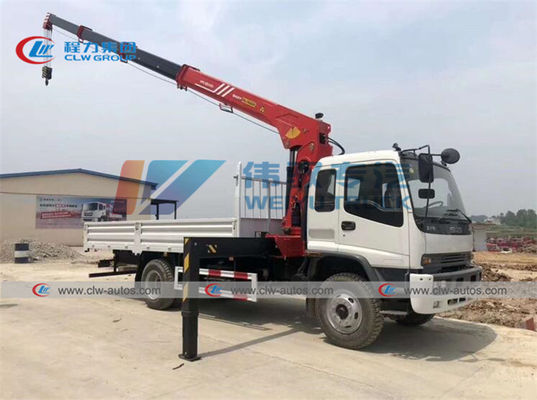

ISUZU FTR Lorry Mounted Straight Arm 10 Tons Palfinger Crane 1

ISUZU FTR Lorry Mounted Straight Arm 10 Tons Palfinger Crane 2

ISUZU FTR Lorry Mounted Straight Arm 10 Tons Palfinger Crane 3



Key word:telescopic Boom Truck, Truck Mouted Crane, Truck Crane,Truck With Crane,isuzu lorry with crane,10tons crane truck
