Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU, Etc. | Engine Brand: | Wd615.69, 336HP |
|---|---|---|---|
| Gearbox: | Fast, 10forwards And 2reverse | Crane Brand: | SANY, XCMG, CHENGLI, Etc. |
| Crane Capacity: | 6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton, Etc. | Crane Boom Type: | Straight Telescopic Crane, Knuckle Crane |
| Boom Type: | Straight 4-Arm Telescopic Boom | Cargo Material: | Q235 Carbon Steel |
| Cargo Thickness: | Side 2mm, Bottom 3mm | Warranty: | 1 Year |
| High Light: | 336HP Dongfeng 4*2 Truck,LHD Q235 4*2 Truck,90km/h 6 Tires 4 by 2 truck |
||
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
Product Specification
| General Description | |||||||||||
| Overall Dimension(mm) | 8600×2490×3650 | Cargo body size | 5600*2200*550 | ||||||||
| Appro* 12000Kg | Driving type | 4*2, left hand drive | |||||||||
| Curb weight | Appro* 6120Kg | Rated loading capacity kg | 6000 | ||||||||
| Wheel base (mm) | 3950 mm | Axle number | 2 | ||||||||
| Approaching/Departure Angle(°) | 23/20(°) | F/R Axle load(kg) | 3600/7650 | ||||||||
| Passengers in cab | 3 | Maximum speed(km/h) | 90 | ||||||||
| Number of Tires | 6 (1 spare piece) | Tyre type | 9.00-20 | ||||||||
| Front/Rear suspension(mm) | 1250/2650 | Front/Rear track base (mm) | 1920/1860 | ||||||||
| Transmission | 6 Forward with 1 Reverse, manual | Fuel type | Diesel oil | ||||||||
Engine parameters |
|||||||||||
| Brand | Cummins | Model | B170-33 | ||||||||
| Displacement (L) | 5.9 L | Emission Standard | EURO III | ||||||||
| Max Power Output | 125 kw | Horse power | 170HP | ||||||||
| Number of cylinders | 6 | Cylinder spread pattern | In-line | ||||||||
Intake type |
In line |
Rated rotation(rpm) |
2500 | ||||||||
| Crane Model(5 Ton 3 telescopic arms crane) | SQ5SA2 | Unit | |||||||||
| Max Lifting Capacity | 5000 | kg | |||||||||
| Max Lifting Moment | 12.5 | T.M | |||||||||
| Recommended Power | 20 | KW | |||||||||
| Recommended Hydraulic Flow | 40 | L/min | |||||||||
| Rated hydraulic Pressure | 20 | MPa | |||||||||
| Oil tank capacity | 100 | L | |||||||||
| Crane Weight | 2200 | kg | |||||||||
| Installation Space | 900 | mm | |||||||||
| Rotation Angle | 400° | ° | |||||||||
| lifting capacity table | |||||||||||
| Working radius(m) | 2.5 | 3.95 | 6.3 | 8.65 | |||||||
| Rated loading(kg) | 5000 | 2250 | 1450 | 1000 | |||||||

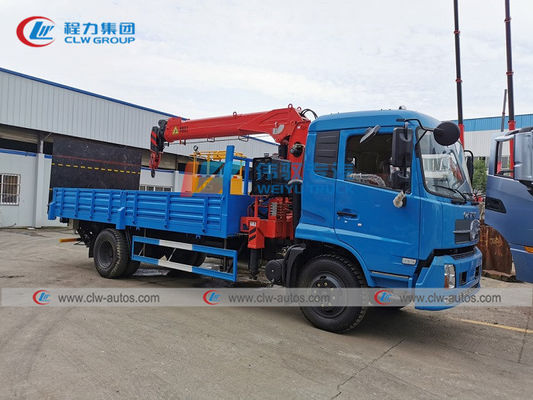

Reference Photos
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
