Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Golden Dragon | Drive Model: | 4X2 |
|---|---|---|---|
| Seats Quantity: | 20/22/28 | Seat Type: | Generally Type |
| Certificate: | ISO/SGS/BV | Painting: | According To Client Request |
| Logo: | According To Client Request | Engine: | Yuchai Power |
| Gear Box: | 5 Forwards And 1 Reverse | A/C: | With A/C |
| USB: | With USB | ABS: | With ABS |
| EPS: | With EPS | Curtain: | With Curtain |
| Front Protection Device: | Optional | ||

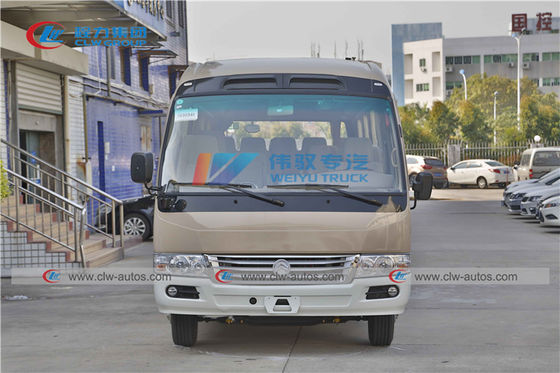

| High Light: | Golden Dragon 28 Seats Business Bus,LHD 4X2 Business Bus,EURO III 20 Seats Mini Bus |
||
Bus(also called Autobus.) is used for Long-haul and Short-haul passenger transporting.
Bus can be divided into various types as follows,
1) according to truck brands, there are dongfeng and asiastart for optional.
2) according to seat capacity: 20 seats, 28 seats, 30 seats, 40 seats, 48 seats, 50 seats, 55 seats, 58 seats and 60 seats etc.
3) according to purpose: Long-haul and Short-haul passenger transporting bus.
| SYSTEM | PART NAME | DESCRIPTION |
| CHASSIS | Engine | CUMMINS ISF 3.8 s3141 (EURO III),3.8L Max power:105Kw/2600rpm, Max torque:450Nm/1200-2200rpm |
| Clutch | Single disk,hydraulic operation | |
| Transmission | FAST C6J50T transmission, Manual, six gears | |
| axle | Chinese axle, front 3T / rear 5T, ratio 4.875 | |
| Suspension | Leaf spring | |
| Tyre | 215/75R17.5,tubeless | |
| Wheel cover | Equipped | |
| Steering system | Power steering,hydraulically assisted | |
| Brake system | Full air brake,drum type | |
| BODY | Driver position | LHD |
| Floor mat | Ordinary floor mat | |
| Style | STYLE | |
| Dashboard | Luxury Dashboard | |
| Side window glass | Fully sliding window | |
| Inner luggage rack | Not equipped | |
| Anti-scuff strip | Equipped | |
| Top hatch | Equipped | |
| Inner trim | New interior trim | |
| Passenger door, middle | Equipped | |
| Passenger seat | 21 seats, 2+1 layout | |
| Driver seat | Fabric covered seat,three point mounted seat belt | |
| Inside rear mirror | Equipped | |
| Rear view mirror | Manual | |
| Sun visor | Left & right sun visor | |
| Curtain | Equipped | |
| Safety belt | All seats with belt | |
| Painting | Standard paint | |
| Vehicle ID | English vehicle ID | |
| ELECTRICAL EQUIPMENT | manual power switch | Equipped |
| Wiper | Front &rear wiper | |
| Digital clock | Equipped | |
| High position brake lamp | Equipped | |
| Audio-vision system | Radio/ MP3 player | |
| Reversing monitor | Equipped | |
| Heater | Not equipped | |
| Front defroster | Equipped | |
| A/C | Equipped | |
| Rear ground mirror | Equipped |
Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of bus I can order from your company?
A: There are different kinds of bus for optional,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied bus to any overseas companies?
A: Yes,with need of government and transportation company project,we offered many bus to many Africa and south-east Asian,south-American countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
