Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck

Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck
Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck

Large Image :  Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW5780cw

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Wheel Base: 3300mm Brand: Dongfeng Duolika
Engine: Dongfeng Cummins Or Chaochai Gearbox: WLT 5 Forward & 1 Reverse
Loading Ways: Rear Loading Type: Garbage Compacting
Discharging Way: Hydraulic Tipping Control: Hydraulic Control
Control Position: Truck Back & Cabin Back Compacting Ratio: 0.6Ton/m3 ~ 0.8ton/m3
Recycling Time: 13~17 Second Lifting Bin Type: Steel Bin, Plastic Bin
Sewage Tank: Yes Inside Painting: Anti-rust Painting
Outside Painting: Color Painting With Logo
High Light:

Dongfeng Home Waste Compactor Truck

,

EURO 6 Waste Compactor Truck

,

3t rear loader rubbish compactor truck

EURO 6 Dongfeng 3Ton~5Ton Home Waste Garbage Compactor Truck Rear Loader Type





Product Description

  • Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution
  • Easy Full Automatic Operation: computer control system for loading and unloading operations.



Dongfeng 5T compression garbage truck ihydraulic mechanism system:

  •  composed of chamber,
  • loading mechanism,
  • compression mechanism,
  • unloading mechanism,
  • oil pump, oil cylinder,
  • control valve, etc.

The chamber body is made of high-quality carbon steel,

  • thickness (unit: mm): side 4, bottom 4, chamber
  • volume: 8m 3.

The loading mechanism is composed of bracket, connecting rod mechanism, cam, hook, etc.



Under the action of the oil cylinder, the garbage in the garbage can is automatically turned over and poured into the hopper.



Specifications of 5-7 CBM Garbage Compactor Truck

Dongfeng 6CBM Garbage Compactor Truck
Overall Dimension       6220×2050×2570 mm Gross Vehicle Weight 7360 kg
Curb Weight 5400 kg Loading Weight 1830 kg
Wheel Base 3308 mm Front / Rear Axle 5000 kg / 10000kg
Cabin Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine
Engine horsepower 120HP, EURO 6
Max Driving Speed 90 km/h
Gear Box 5 Forward Gear, 1 Reverse Gear,
Tire 7.00R16 (6 pieces with one spare)
Garbage Bin Capacity 6CBM
Material 4mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio 1/3 - 1/4

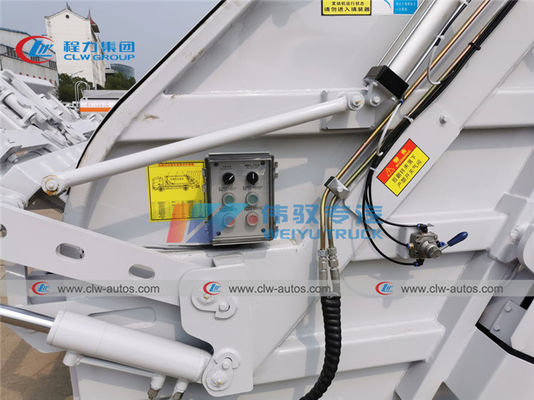

Control System One control Panel on the back, One Control system in back of Cabin
Dispensing System 1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time<14~18s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request



Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck 0

Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck 1Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck 2

Diagram

 Rear Loader EURO 6 Dongfeng Home Waste Compactor Truck 3

FAQ


Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q3: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
