RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

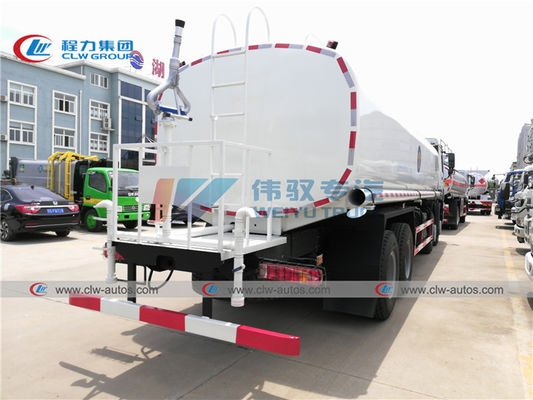

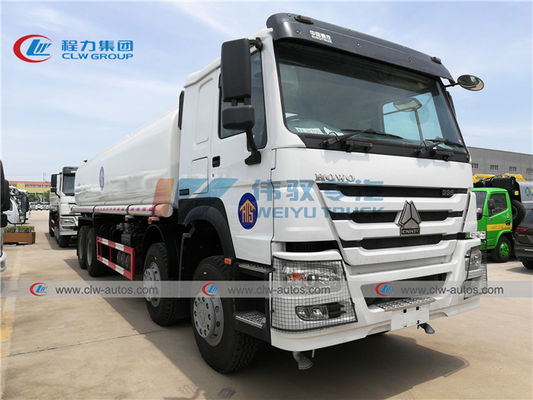

RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation

RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation
RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation

Large Image :  RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW5252SSC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 13250-35560USD/UNIT
Packaging Details: Naked package shipped by bulk ship or ro-ro
Delivery Time: Within 30days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: ISUZU,Dongfeng,howo,faw,shacman,foton Water Bowser Tank Size: 20000L,20000liters,2000 Gallons 5000gallons Water Bowser
Material: Carbon Steel Q235 Or Stainless Steel 304 Water Bowser Drive Wheel: 4X2,6X4,8X4,6 Wheel Water Bowser
Condition: Brand New Water Bowser Storage: Water,drinking Water,milk Transport Water Bowser
Horsepower: 290hp,336hp 371hp Water Bowser Engine Capacity: 6700cc Water Bowser
Fuel Type: Diesel,optional For Gasoline Water Bowser After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service
Product Name: Water Boswer,water Sprinkler Truck,water Transport Truck Water Tank Truck Type: Right Hand Drive Water Bowser Truck
High Light:

20m3 Water Dispenser Truck

,

Howo Water Dispenser Truck

,

RHD Water Bowser Truck

Right Hand Drive Howo 20,000liters 20m3 Water Dispenser Truck 20Tons Water Bowser Tanker Cart


Function

--water bowser truck(also called water bowser,water truck,water cart,water sprinkler truck,water sprayer truck,water tanker truck,portable water truck,water delivery truck,water transport truck,drinking water truck) is used for transporting and supplying water for industrial,agriculture,construction or sanitation use.

--The water bowser truck material can be carbon steel or stainless steel.If you need to transport drinking water,

the tank material has to be food degree 304-2B stainless steel or carbon steel with non-toxic treatment inside to ensure human's health.

--with water pump,rear platform and water cannon,water bowser is widely used for tree irrigation,road cleaning,or act as emergency fire fighting truck.

-- water bowser truck can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc water bowser truck;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 water bowser truck;

3) according to steering,there are left hand drive and right hand drive water bowser truck;





Feature

--Square or round shape tank shape;

- Howo truck chassis,durable with perfect working performance;

--powerful and reliable diesel engine,easy to get spare parts in local;

--Chinese brand weilong brand water pump;

--Front flush,rear and side sprinkler;

--360 ° rotation adjustable green water cannon;

--Vertical suction distance ≥7 meters;

--Width of front flush and sprinkling ≥14 meters;

--Range of water cannon ≥35 meters;



Reference picture

RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 0RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 1RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 2RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 3RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 4

Specification
Model SINOTRUCK HOWO  20000 liter water tank bowser truck
Engine Maker: CLW GROUP
  Diesel 4 stroke direct injection diesel engine,
  6 cylinder in-line with water cooling,turbo-charging & intercooling
  Engine model: WD615.69
  Maximum output: 336@2200rpm
  Max torque: 1350NM@1100-1600rpm
  Bore/Stroke(mm):126/130
  Mean Position Speed: 9.53m/s
  Compression ratio:15.5:1
  Displacement: 9.726L
  Specific fuel consumption: 198g/Kwh
Clutch Φ430 Diaphragm type
Transmission SINOTRUK HW19710
Front Axle 7Tons
Rear Axle 16Tons
Chassis Frame: U-profile parallel ladder with U-profile riveted cross members
  From suspension:9 semi-elliptic leaf springs and stabilizer
  Spare wheel carrier: with one spare wheel
  Fuel tank: with one 300L lockable fuel tanks
Steering ZF8098 integral type power-steering
Wheel & Types Spring: 10/12,4/12
  Tyre: 12.00-20 bias tire
  Radial tire and tubeless tire is optional
Driver's cab HW 76 , flat head, tippable, one sleeper with A/C
  Fuel consumption (L/100km): 36
Dimensions in (mm) Wheel base : 4300+1400
  Dimension(mm): 9800*2500*3400
  Max. speed (km/h): 102
  Max. gradeability(%): 25
  Front overhang (mm): 1500
  Rear overhang (mm): 2625
  Rear track (mm): 1830
  Approach angle: 16 degree
  Departure angle: 15 degree
Water tank capacity Capacity: 20CBM
  Length: 6.7m
  Thickness of steel: 4mm
With high pressure spray gun and sprayer in front and rear




RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 5

RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 6

RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 7

RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 8RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 9RHD Howo 20m3 Water Dispenser Truck For Tree Irrigation 10



Key word: water truck,water cart,water tanker truck,isuzu water truck,5000liters water truck,5tons water truck,5000L water truck,water bowser,water truck for myanmar,water truck for cambodia,water bowser for vietnam
