HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsWater Bowser Truck

Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck

Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck
Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck

Large Image :  Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW50796cw

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Material: Q235 Carbon Steel Thickness: 4 Mm
Fuel: Diesel Driving Type: 4*2, Left/right Hand Driving
Pump: China Famous Brand/International Brand Suction Height: 7 Meters
Water Canon Range: 30 Meters Sprinkling Width: 14 Meters
Operating Video: Yes Use Manual: Yes
Front Spray And Rear Spray: Yes Warranty: One Year
LOGO: As Per Customer's Request
High Light:

4X2 Water Tanker Truck

,

Dongfeng Water Tanker Truck

,

Q235 Carbon Steel Water Sprinkler Truck

Dongfeng 5tons Water Tanker Truck 4X2 Watering Cart Transport Sprinkler Spray Truck

Product Description

Water bowser truck is suitable for washing all kinds of roads, trees, green belts, lawns, roads, factories and mines, and high-altitude buildings. It has the functions of water spraying, dust pressing, high and low spraying, pesticide spraying, guardrail washing, etc. It also has the functions of water transportation, drainage, and emergency fire fighting.

1.The truck can be equipped with advanced facilities such as medicine tray, medicine pump, anti-corrosion and rust prevention in the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :30 meters
5. Reliable and high quality water pump


Specifications of dongfeng 5tons water tanker truck

Condition New condition/Left hand drive/4x2
Chassis Brand Dongfeng
Curb weight(kg) 5990 kg
Loading weight(kg) 10000 kg
Gross weight(kg) 15990 kg
Wheelbase(mm) 3950 mm
Dimensions(mm) 7500*2480*3150 mm
Front Loading Capacity (Ton) 3600
Rear Loading Capacity (Ton) 9000
Max. driving speed(km/h) 90 km/h
Clutch Reinforced diaphragm clutch
Brakes Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 10.00-20
Transmission Manual type, 8 Forwards and 1 reverse
Cabin Single row seat, Tiltable. It can accommodate two people. With air conditioner.
Engine Brand CUMMINS
Fuel type Diesel
Power(kw) 125 kw
Horsepower(HP) 170 HP
Cylinder number 4
Emission standard Euro 3
Upper
Water tank Capacity(cbm/tons)  10
Tank Dimension(mm) 4200*200*1500
Tank material Q235 carbon steel
Thickness(mm) 4
Water pump China local brand
Suction Height 7 meters
Function 1, Front Side Rear Sprinkling width≥ 14m
2, Water cannon range≥ 28m
Remarks 1. AM/FM radio
2. 2pcs water hose.
3. Color is optional

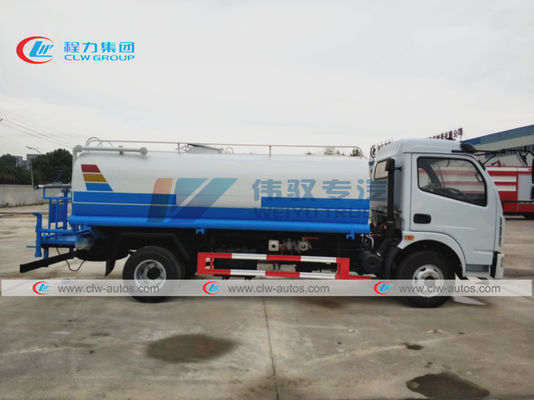

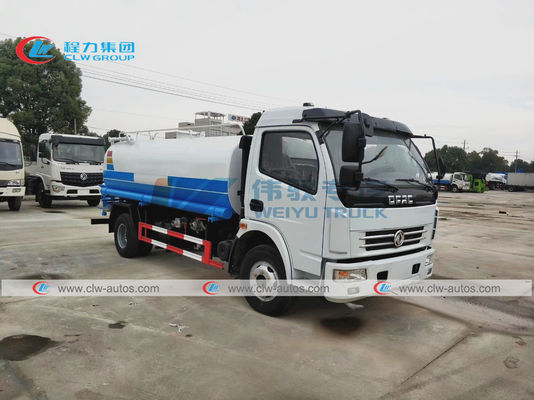

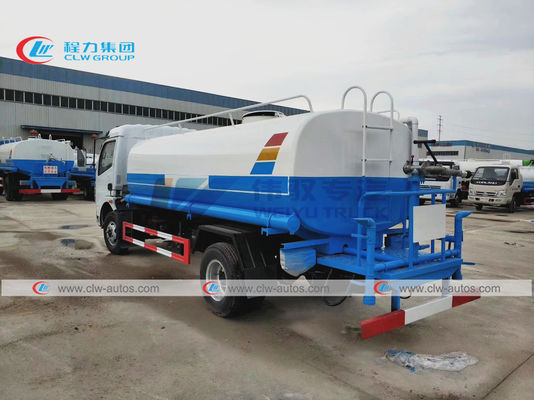

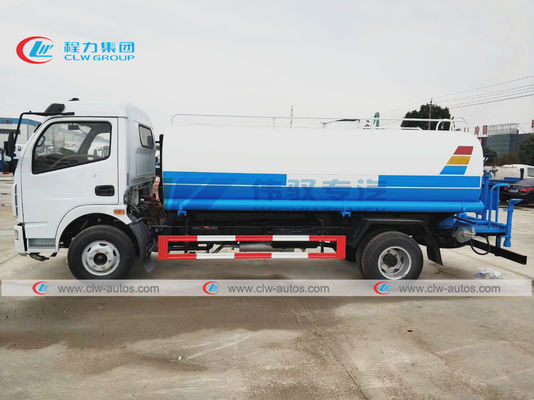

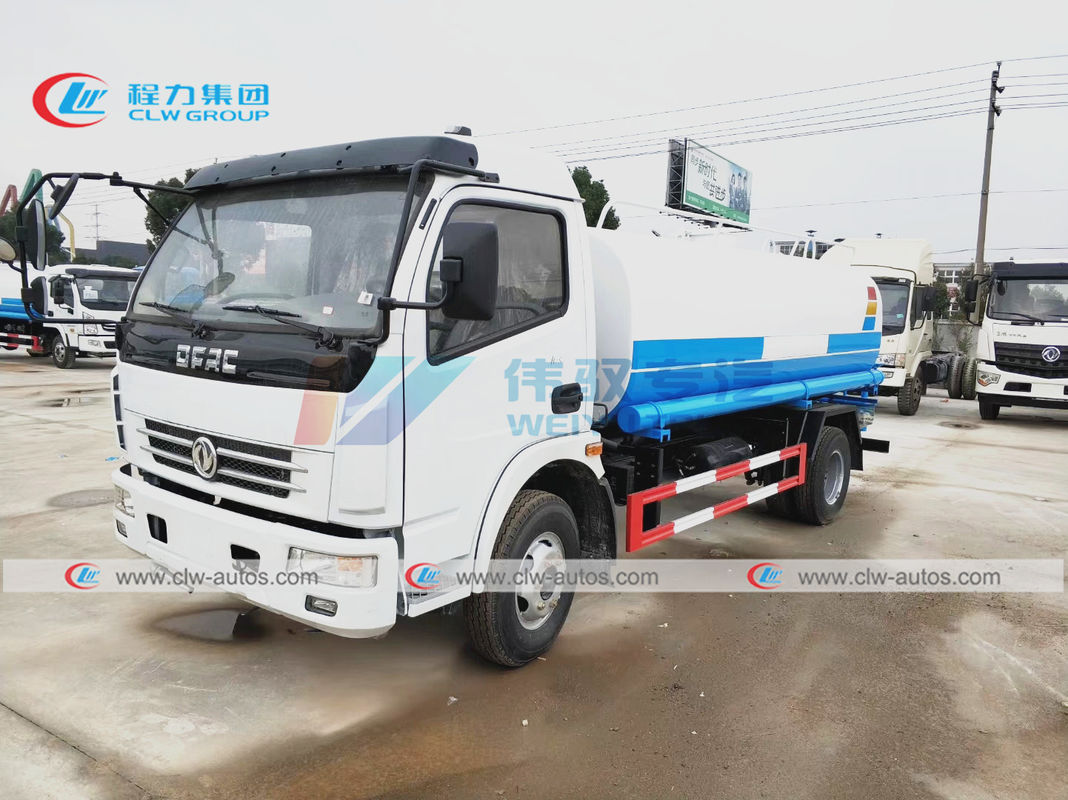

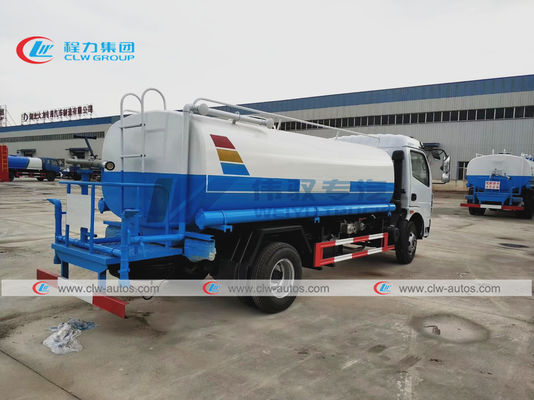

Reference photos for dongfeng water bowser truck

Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck 0
Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck 1

Water Truck Diagram

Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck 2
Working Show
Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck 3

Truck Details
Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck 4
Dongfeng 4X2 5T Q235 Carbon Steel Water Tanker Truck 5




After Sale Service :



We will shoot detailed operation videos for customers on how to use the sprinkler and the precautions for car maintenance. The truck is equipped with some basic wearing parts, which is convenient for later use and replacement. We Provide a one-year warranty period, and provide factory-price accessories for life (the freight is paid by the customer).
