Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Isuzu, Dongfeng, Foton, Sinotruk Howo, JAC, Etc. | Campacting Ratio: | 0.6-0.8 Ton/m3 |
|---|---|---|---|
| Compression Ratio: | 3-4 | Tank Thickness: | 4mm |
| Compression Cycle Time: | ≤15 S | Unload Garbage Time: | ≤23 S |
| Hydraulic Pressure: | 16Mpa | Garbage Box Thickness: | Side 3mm, Bottom 4mm, Carbon Steel-Q345A |
| Garbage Box Volume: | 5cbm, 6cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, Etc. | Garbage Box Capacity: | 3ton, 4ton, 5ton, 6ton, 7ton, 8ton, 9ton, Etc. |
| Dirty Water Tank Volume: | 0.2CBM | Hopper Volume: | 0.8CBM |
| Controlling Way: | Manual And Electrical Control | Logo And Painting: | As Per Customer's Request |
| Delivery Time: | 30-35 Working Days | Warranty: | 1 Year |
| High Light: | 5cbm Waste Compactor Truck,6cbm Waste Compactor Truck,4t Rubbish Compactor Truck |
||
Product Description
1. Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution
2. Easy Full Automatic Operation: Computer control system for loading and unloading operations.
3. One Person Operation: Reducing sanitation working, greatly improves the working environment.
4. Double Operation System: Computer control system and manual operation greatly improves the vehicle usage rate.
Product Specifications
| Howo 5CBM Garbage Compactor Truck | |||||
| Overall Dimension | 6220*2050*2570 mm | Gross Vehicle Weight | 7360 kg | ||
| Curb Weight | 5400 kg | Loading Weight | 1830 kg | ||
| Wheel Base | 3308 mm | Front / Rear Axle | 5000 kg / 10000kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine | |||||
| Engine horsepower | 102HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.00R16 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 6CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||

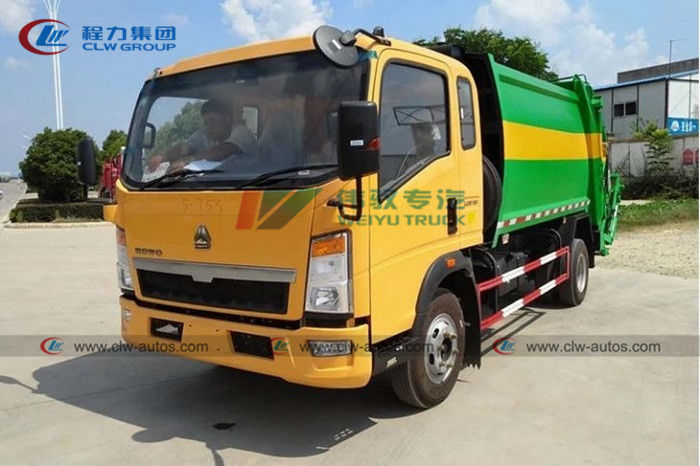

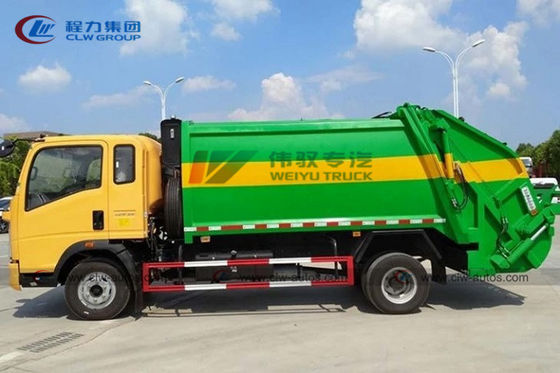

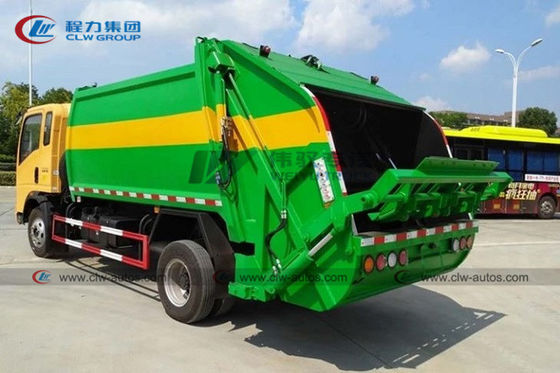

Reference Photos
Structure Diagram
Main Details
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for garbage truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
