Bran: | Dongfeng, | Engine: | Cummins, Yuchai, Chaochai |
---|---|---|---|
Gearbox: | 6 Forward & 1 Reverse | Mixer Capacity: | 5CBM, 5000Liter, 6CBM, 6000 Liters |
Hydraulic Motor: | EATON, PMP, | Hydraulic Pump: | EATON, PMP, Bonfiglioli, |
Reductor: | ZF, PMP,Bonfiglioli,Sauer | ||
High Light: | RHD Concrete Mixer Truck,LHD Concrete Mixer Truck,4X2 Cement Mixer Truck |

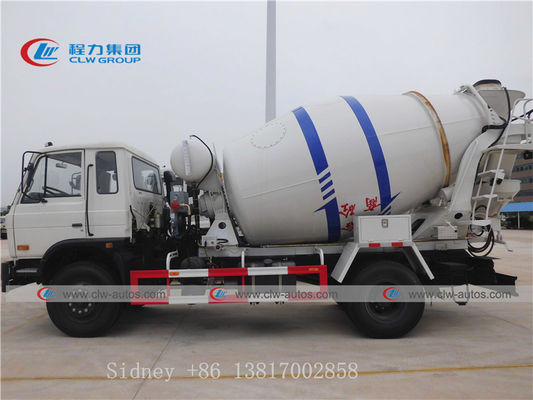

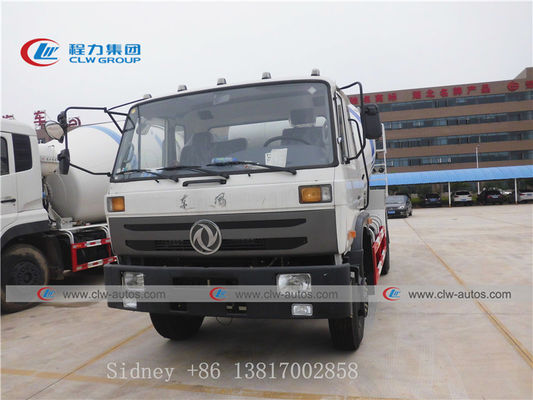

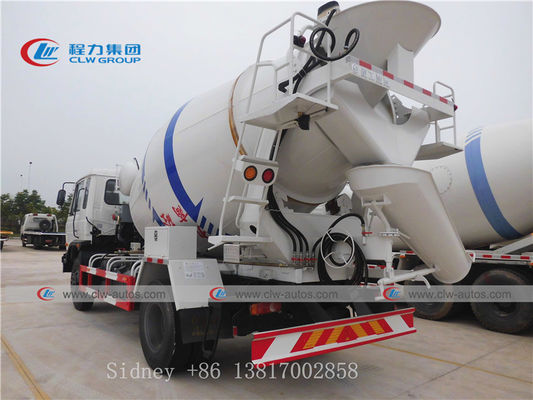

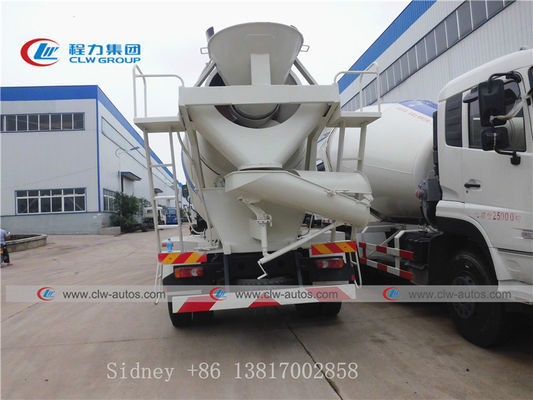

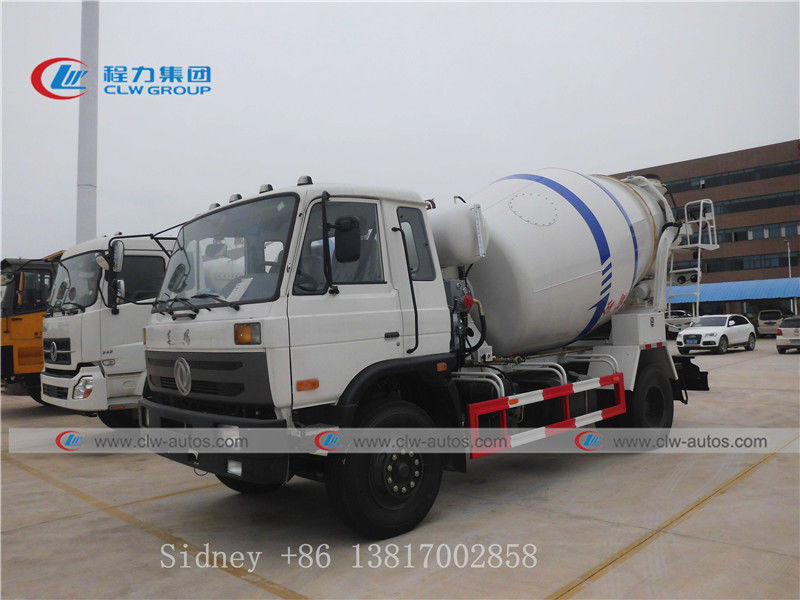

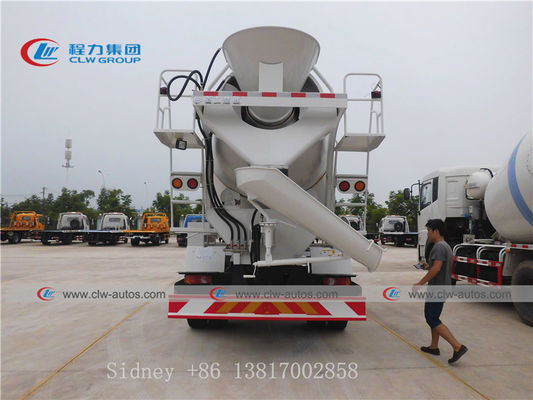

Dongfeng 153 series 4X2 5cbm 6cbm 7cbm Left/Right hand drive Concrete Cement Mixer Transport Truck
Product Description
Concrete mixer truck also named mixer truck , concrete truck , cement truck , cement mixer truck . It widely used in mixing plant .
1. Purpose: For long distance or short distance transporting concrete in construction site.
2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.
3. Chassis: Dongfeng, SHACMAN or SINOTRUK 4x2 chassis for optional.
Our mixer truck features:
1 > mixing tanker use 6 mm Q345A steel ;
2 > Hydraulic pump , Hydraulic motor , Decelerator are imported from Italy or USA ;
3 > Pear shape mixing tanker .
Specifications
Vehicle parameters | GVW | kg | 16,000 |
Curb weight | 9,605 | ||
Overall dimensions | mm | 8,000 * 2,500 * 3,750 | |
F / R trend | 1,250 / 2,650 | ||
Min . ground cleanrance | 500 | ||
Wheelbase | 4700 | ||
Mixing capacity | cbm | 5 | |
Engine parameters | Type | ISDe180 40 | |
Manufacture | Dongfeng cummins Co., Ltd | ||
Power | kw / hp | 136 / 180 | |
Comsuption | L | 6 . 5 | |
Fuel type | Diesel | ||
Chassis parameter | Drive type | 4 * 2 | |
Cab | One cab and half | ||
Transmission | 6 shift | ||
Sharking systerm | Air brake | ||
Axle load | kg | 6,000 / 10,000 | |
Oil tanker | 60 L | ||
Tire | 10 . 00R20 16PR | ||
Refitting part parametrs | Angel of inclination of mixing drum | ° | 27 |
Feeding speed | m ³ / min | > 3 . 2 | |
Discharge speed | m ³ / min | > 4 | |
Residual ratio | % | < 0 . 7 | |
Collapsed degree range | mm | 40 - 190 | |
water tanker capacity | L | 450 | |
working pressure | Mpa | 0 . 35 - 0 . 38 | |
Configuration | Hydraulic pump | USA brand , Eaton | |
Hydraulic motor | USA brand , Eaton | ||
Decelerator | Italian brand , Top | ||
accumulator | V | 2 * 12 |
Truck Diagram
Workshop
Production Procedure
Factory Overview
Overseas Exhibition and Local Support
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of concrete mixer trucks I can order from your company?
A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied concrete mixer truck to any overseas companies?
A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
