Sinotruk Howo 4X2 300HP Garbage Compactor Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk Howo 4X2 300HP Garbage Compactor Truck

Sinotruk Howo 4X2 300HP Garbage Compactor Truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck Sinotruk Howo 4X2 300HP Garbage Compactor Truck Sinotruk Howo 4X2 300HP Garbage Compactor Truck Sinotruk Howo 4X2 300HP Garbage Compactor Truck Sinotruk Howo 4X2 300HP Garbage Compactor Truck

Large Image :  Sinotruk Howo 4X2 300HP Garbage Compactor Truck

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, ISO, BV, SGS
Model Number: CLW5326-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: USD36,000-43,000
Packaging Details: Naked Pack with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Units/Month
Detailed Product Description
Chassis Brand: Sinotruk Howo, Isuzu, Dongfeng, Foton, JAC, Etc. Campacting Ratio: 0.8-0.9 Ton/m3
Compression Ratio: 3-4 Compression Cycle Time: ≤15 S
Unload Garbage Time: ≤23 S Hydraulic Pressure: 16Mpa
Garbage Box Thickness: Side 3mm, Bottom 4mm, Carbon Steel-Q345A Garbage Box Volume: 5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, Etc.
Garbage Box Capacity: 4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, Etc. Dirty Water Tank Volume: 0.2CBM
Hopper Volume: 0.8CBM Controlling Way: Manual And Electrical Control
Logo And Painting: As Per Customer's Request Warranty: 1 Year
High Light:

300HP Garbage Compactor Truck

,

4X2 Garbage Compactor Truck

,

Sinotruk Howo Rubbish Compactor Truck

SINOTRUK HOWO 4X2 300HP Big Capacity Compressed Rubbish Vehicle Garbage Compactor Truck



1--Garbage compressor Truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of Garbage compressor Truck : option for 3-20m3 garbage truck.
6--Steering wheel of Garbage compressor Truck : both left and right hand drive,meet the needs of different countries
7--Emission standard of Garbage compressor Truck : option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck
8--Truck chassis of Garbage compressor Truck: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...


Specifications of howo Garbage compressor Truck

Sinotruk Howo Garbage compressor Truck
Overall Dimension 8,640×2,496×3,370mm Gross Vehicle Weight 16,000kg
Curb Weight 11,700 kg Loading Weight 4,170 kg
Wheel Base 4,600 mm Front / Rear Axle 6000 kg / 10000kg
Cabin Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine Weichai WD615.97E
Engine horsepower 300HP, EURO III
Max Driving Speed 93 km/h
Gear Box 10 Forward Gear, 2 Reverse Gear,
Tire 12.00R20 16PR (6 pieces with one spare)
Garbage Bin Capacity 18-20CBM
Material 4mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio 1/3 - 1/4
Control System One control Panel on the back, One Control system in back of Cabin
Dispensing System 1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time: 25~30s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request

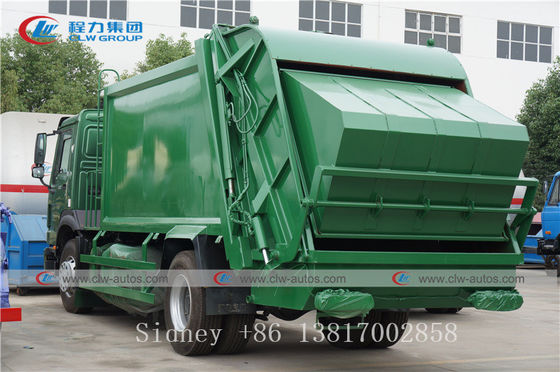

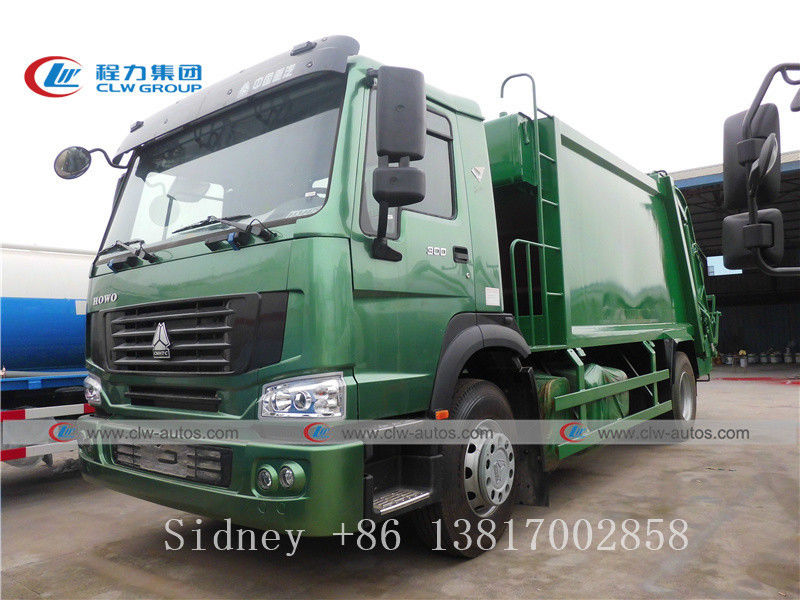

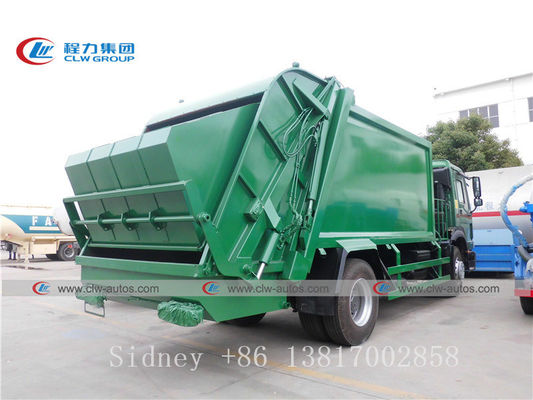

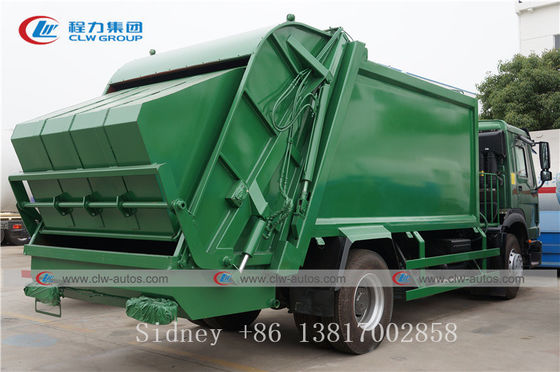

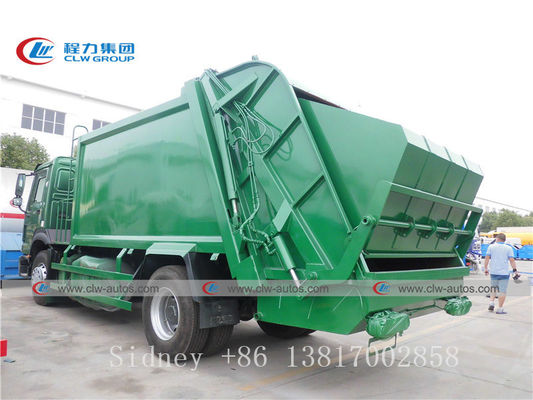

Pictures of howo Garbage compressor Truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck 0Sinotruk Howo 4X2 300HP Garbage Compactor Truck 1Sinotruk Howo 4X2 300HP Garbage Compactor Truck 2


Different designs of Garbage compressor Truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck 3
Truck Details of garbage compressor truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck 4
Import parts of garbage compressor truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck 5

Working Show of garbage compressor truck

Sinotruk Howo 4X2 300HP Garbage Compactor Truck 6

​​Structure Diagram



Sinotruk Howo 4X2 300HP Garbage Compactor Truck 7

Sinotruk Howo 4X2 300HP Garbage Compactor Truck 8

Sinotruk Howo 4X2 300HP Garbage Compactor Truck 9



Sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What kinds of compactor garbage truck I can order from your company?

A: We can supply different size compactor garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.



Q2: What is your production standard of compactor garbage truck products?

A: China GB local standard.



Q3: Can we adopts International brand fuel pump for compactor garbage truck?

A: Sure, we already cooperated with many international brand supplier.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
