Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton | Capacity: | 6500-8000L, 8tons |
|---|---|---|---|
| Type: | Water Tank Fire Truck,foam,dry Powder Fire Truck,rescue Fire Truck | Fire Pump: | Chinese Brand |
| Fire Monitor Range: | ≥50M | Flow Rate Of Monitor: | 48L/s |
| Flow Rate Of Pump: | 60L/s | Steering: | LHD Or RHD |
| High Light: | 4X4 Offroad Fire Rescue Truck,Sinotruk Howo Fire Rescue Truck,4X4 Fire Brigade Truck |
||

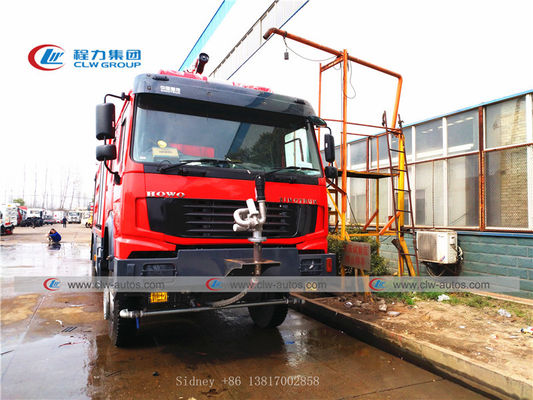

SINOTRUK HOWO 4X4 Offroad Water Foam Dry Powder Tank Fire Rescue Truck with 6500- 8000L Water Foam Tank fire fighting Emergency Firefighter
Product Description
Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently
to prevent fire spread , reducing the loss caused by fire maximumly .
Fire fighting truck can be divided into many types:
1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
3. According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck.
| The main technical parameters | |||
| The dimensions: | 6752,7792,8292,9192×2520×3200(mm) | ||
| Total quality: | 18000(Kg) | Anti-lock braking system: | with |
| Curb weight: | 9000(Kg) | The rated load quality: | 8870(Kg) |
| Approach Angle/Angle of departure: | 31/23, 31/16, 31/15, 31/13 (°) | Suspension before/after suspension: |
1602/1350,1602/1890, 1602/2090,1602/2390(mm) |
| Axial load: | 7000/11000 | Wheel base: | 3800,4300,4600,5200(mm) |
| Shaft: | 2 | Top speed: | 90(km/h) |
| Fuel consumption: | 29.0, 28.9 | Spring leaf number: | 4/9 + 6, 9/9 + 6 |
| Tyre number: | 6 | Tire specifications: |
11.00-20,11.00R20, 12.00-20 ,12.00R20 |
| Before the wheel track: | 2041202 2 | After the wheel track: | 1850 |
| Engine parameters | |||
| The engine | Engine manufacturing enterprises | Displacement (ml) | Power (kw) |
| D10.28-50 D10.31-50 D10.34-50 MC11.32-50 |
SINOTRUCK | 9726 9726 9726 10518 |
206 228 249 238 |
| Vehicle fuel parameters | |||
| Fuel types: | diesel | Chassis emissions standards: | EURO 3-4 |
| other | |||
|
1, Cross-country total GW 16000 kg, axle weight (kg) for 6500/9500, cross-country loading 7000 kg. 2, Optional D10.28-50, D10.31-50, D10.34-50 engine,fuel consumption 29.0 L / 100 km; Optional MC11.32-50 engine, fuel consumption 28.9 L / 100 km. |
|||
| Fuel consumption parameters | ||
| Working condition of the city | Working condition of the suburbs | Comprehensive value |
| 36.60 | 29.63 | 29.05 |
| 36.37 | 29.41 | 28.85 |
| SpecialFunction | Water tank volume(L) | 6000 | Foam tank volume(L) | 2000 | ||
| Fire Monitor |
Model:PS50 Water monitor rated pressure:0.5-1.2MPa Water monitor rated reach≥70m Pitching angle(°):-30~70 Level back to the corner(°):360 Spray angle(°)≥100 |
|||||
| Fire Pump | Model:CB10/60 | |||||
|
(1)pump pressure (Mpa):1.0 rotate speed(rmp):2800 power(kw)98.5 |
(2)pump pressure (Mpa):1.3 rotate speed(rmp):2990 power(kw)93.5 |
|||||
* Low& Flat high water flow washing, high speed and high efficiency.
* All pneumatic pressure system, no weakness of hydraulic pressure, like high price and complicated mainteance
*Metal printed inside the tank keeps the tanker from rusting, stainless steel tanker is optional.
Chassis |
SINOTRUK HOWO |
|||
Dimensions (length×width×height) (mm) |
8640×2475×3350 |
|||
Cab seating capacity |
4 |
|||
Engine model |
WD615.93 EURO III |
|||
Engine power(kW) |
213/2200r/min |
|||
Wheel base(mm) |
4600 |
|||
Max. Speed(km/h) |
102 |
|||
Tank capacity (kg) |
7000 |
Water: 5000 |
||
Foam: 2000 |
||||
Pump model |
CB20.10/30.60-XZ |
|||
Pump flow(L/s) |
(1.0MPa) Normal pressure |
60 |
||
(2.0MPa) Middle pressure |
30 |
|||
Fire monitor |
Model |
PL48/PS80W |
||
Flow(L/s) |
48/50 |
|||
Reach(m) |
Water≥60, foam≥55 |
|||
Fire Pump |
Atmospheric pressure pump |
Type: BS30 firefighting pump, Flow capacity: 30L/s, Pressure: 1.0MPa |
Medium-low pressure pump |
Medium pressure Flow capacity: 25L/S/2.0MPa |
|
Fire Monitor |
Type |
SP80 |
Shot Range |
≥60m |
Relying on strong technological capability, we can produce and sell the DONGFENG, SINOTRUCK, JMC, ISUZU, NORTH Benz series water fire truck, foam fire truck, powder 2. Fire truck, emergency rescue fire truck, forest fire truck, water truck with fire pump etc.
Our fire truck is widely used for fire fighting of construction, forest, petroleum, chemical industry, factories, mines, oil depot, wharf and other places.
All of our fire trucks with reliable quality, stable performance and reasonable price, and also all are equiped with full fire equipments.
| No. | Name | Specification | Q't | Remark |
| 1 | Suction pipe | Ø125×2000mm | 4PCS | |
| 2 | Fire fighting belt | Ø65×2000mm | 8PCS | |
| 3 | Fire fighting belt | Ø80×2000mm | 4PCS | |
| 4 | Water purifier | FJF125 | 1PC | |
| 5 | Wye | FF65 | 1PC | |
| 6 | Ncreaser | KJ65/80 | 2PCS | |
| 7 | Belt pothook | FG600 | 4PCS | |
| 8 | Belt cloth | FP470 | 4PCS | |
| 9 | Above ground hydrant wrench | FB450 | 1PC | |
| 10 | Underground hydrant wrench | FBX800 | 1PC | |
| 11 | Suction wrench | FS100/125 | 2PCS | |
| 12 | Straight stream shut-off nozzle | QZG19 | 1PC | |
| 13 | Straight stream nozzle | QZ19 | 1PC | |
| 14 | Straight stream multi-jet squirt | QZH19 | 1PC | |
| 15 | Fire fighting axe | GF285 | 1PC | |
| 16 | Tool | GT1 | 1PC | |
| 17 | Fire extinguisher | 1PC |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of rescue fire truck I can order from your company?
A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied rescue fire truck to any overseas companies?
A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
