Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Chassis Brand: | Sinotruk Howo, Dongfeng, Foton, FAW, JAC, JMC, ISUZU, Etc. |
|---|---|---|---|
| Engine Brand: | Wd615.69, 336HP | Gearbox: | Fast, 10forwards And 2reverse |
| Crane Brand: | SANY, XCMG, CHENGLI, Etc. | Crane Boom Type: | Straight Telescopic Crane, Knuckle Crane |
| Max. Lifting Load: | 8tons | Boom Type: | Straight 4-Arm Telescopic Boom |
| Cargo Material: | Q235 Carbon Steel | Cargo Thickness: | Side 2mm, Bottom 3mm |
| Feature: | Truck Crane | Application: | Construction,Truck Crane |
| Color: | DEPENDS | Origin: | 100% China |
| Warranty: | 1 Year | ||
| High Light: | 6x4 Truck Mounted Telescopic Boom Crane,8T Truck Mounted Telescopic Boom Crane,Sinotruk Howo Telescopic Truck Mounted Crane |
||
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
| SPECIFICATION FOR CHASSIS | ||||
| Dimension(Lx W xH)(mm) | 10350×2496×3850 | |||
| Loading Capacity (Ton) | 25 Ton | |||
| Cargo body size (LxWxH) (mm) | 6750×2300×600 ,Bottom 3 mm, Side 2 mm | |||
| Approaching angle/Departure angle(°) | 16/15 | |||
| Overhang(front/rear) (mm) | 1500/2600 | |||
| Wheel base (mm) | 4600+1350 | |||
| Max speed(km/h) | 102 | |||
| Curb weight(kg) | 14525 | |||
| Engine(Steyr technology, made in China) | Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | ||
| Fuel type | Diesel | |||
| Power, max(kw/rpm) | 336HP | |||
| Emission | EUROII | |||
| Fuel tanker capacity(L) | 400L aluminum oil tank | |||
| SPECIFICATION FOR CRANE | ||||
| Max Lifting Capacity | 8000 kg | |||
| Max Lifting Moment | 20 T.M | |||
| Max Oil Flow of Hydraulic System | 55 L/min | |||
| Max Pressure of Hydraulic System | 27 MPa | |||
| Rotation Angle | All Rotation | |||
| Max.Working radius (m) | 11.5 m | |||
| Supporting Leg | Two Supporting Leg with Hydraulic Control | |||

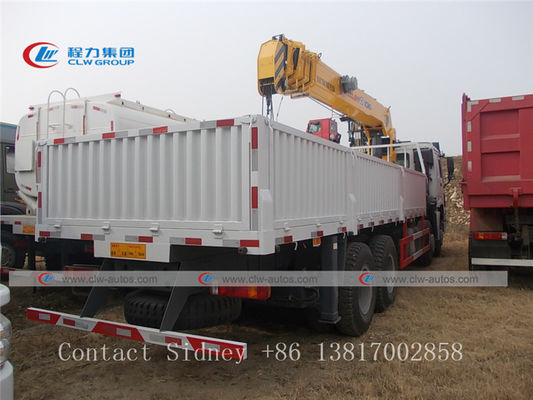

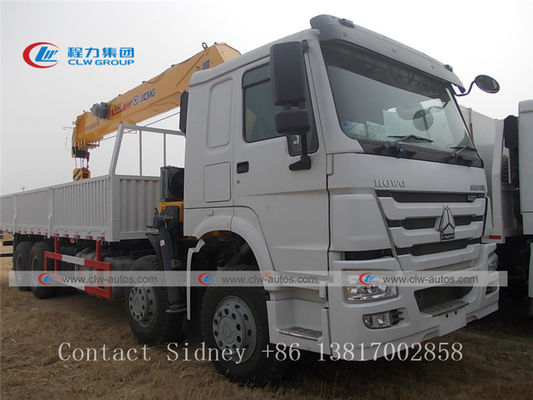

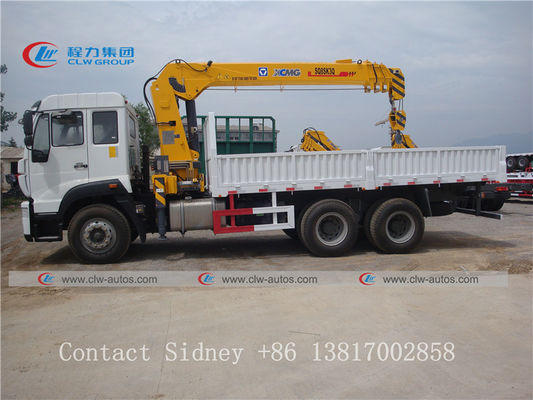

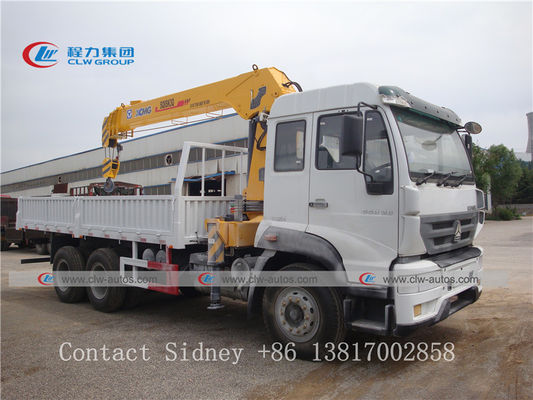

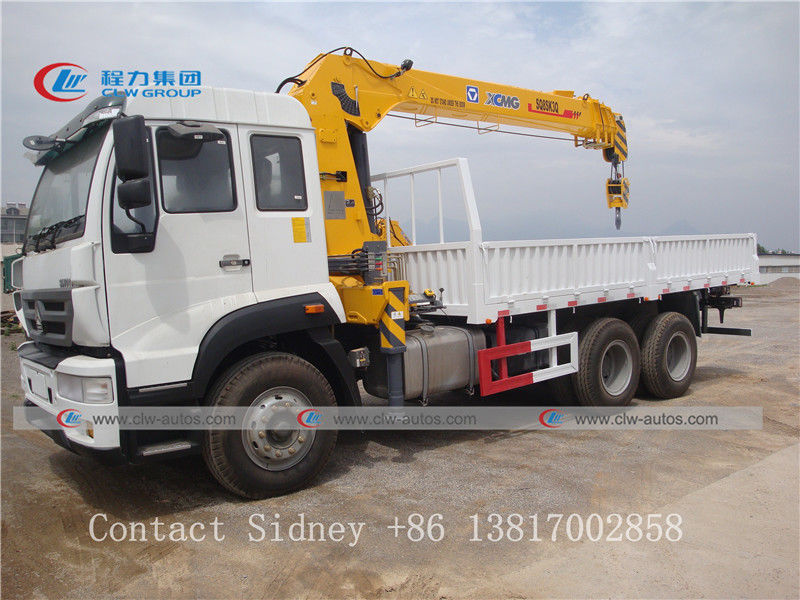

Reference Photos

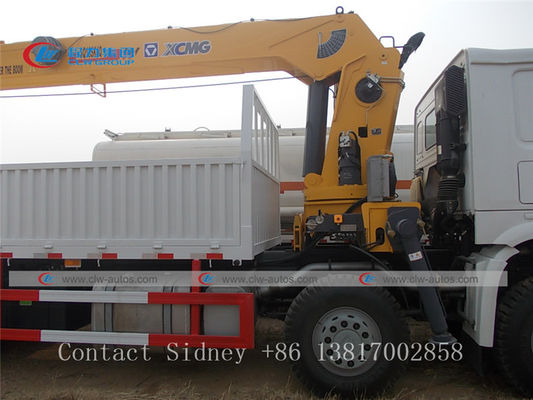

Crane Details
Working Situation
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
