ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank

ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank

Large Image :  ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC,SGS,BV
Model Number: CLW5070BUKWY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 19560~29650 usd/unit
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/month
Detailed Product Description
Truck Chassis: ISUZU/Dongfeng/Howo Fire Fighter Truck Capacity: 3tons 3t Fire Fighter Truck
Type: Water Tank Fire Truck,foam,dry Powder Fire Truck,rescue Fire Truck Fire Pump: CB10/30 Fire Fighter Truck
Flow Rate Of Pump: 30m Fire Fighter Truck Steering: LHD
Engine Type: Diesel Engine Fire Fighter Truck Horsepower: 130HP Fire Fighter Truck
Water Tanker Size: 2000liters 2m3 2000L Fire Fighter Truck Foam Tank Size: 1m3 1cbm 1m3 Fire Fighter Truck
Water Tank Material: Carbon Steel/Stainless Steel Foam Tank: Carbon Steel/stainless Steel
High Light:

3T Fire Fighter Truck

,

ISUZU 600P Fire Fighter Truck

,

ISUZU 600P Fire Fighting Truck

ISUZU 600P 3000Liters 3Tons Water Foam Tank Fire Fighter Truck



Product Description



The Isuzu 600P foam fire truck is composed of a second-class isuzu chassis, tank body, water pump, pipeline, instrument circuit system and other components. The isuzu fire truck is equipped with aluminum alloy rear ladder (removable), the pump room is at the rear of the vehicle and the tank body is made of steel plate. Welding type, carrying water 2 square, foam 1 square, the water tank is made of high-quality carbon steel plate, the inside of the tank is treated with anti-corrosion, and the foam tank is made of 304 stainless steel. The vehicle is equipped with CB10/30 fire pump and PL8/24 dual-purpose fire monitor.


As a professional fire fighting truck manufacturer in China, besides normal water fire truck,foam fire truck, we also have rescue fire truck,off road fire truck,full wheel drive fire truck and so on.





Specifications of ISUZU 600P 3000Liters 3Tons Water Foam Tank Fire Fighter Truck

  • 1) Cabin:  Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
  • 2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
  • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
  • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
  • 5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.

Specification of ISUZU 3000Liters 3Tons Water Foam Tank Fire Fighter Truck



Name Specification
Overall Dimension 6925×1950×2950 mm
Driving model 4X2,left hand drive
GVW 6800kg
Loading 2000L Water and 1000L Foam
Max.speed 90km/h
Fire pump rated flow 30L/s@1.0MPa
Fire monitor rated flow 24L/s@1.0MPa
Fire monitor range Water range≥55m;Foam range≥42m
Approach angle 24°
Departure angle 12°
Truck chassis
Engine Model 4KHCNHS
Engine Power 130HP/96KW
Wheelbase 3815 mm
Driving Type 4X2
Gear box MSB speed forward and 1 reverse
PTO(Power take-off) Pneumatically controlled having ratio 0.828and level for engaging the PTO inside cabin.
Fire Pump
Type CB10/30 normal pressure fire pump
Flow rate 30L/s
Pressure 1.0Mpa
Max. Suction Depth 7M
Water suction time ≤35s
Fire pump type Piston Vacuum Pump
Installation type Rear
Fire monitor
Model PL8/24
Flow rate 24L/s
Range Water range≥55m;Foam range≥42m
Pressure 0.8Mpa
Rotation angle Vertical 360°,-45°~70 °

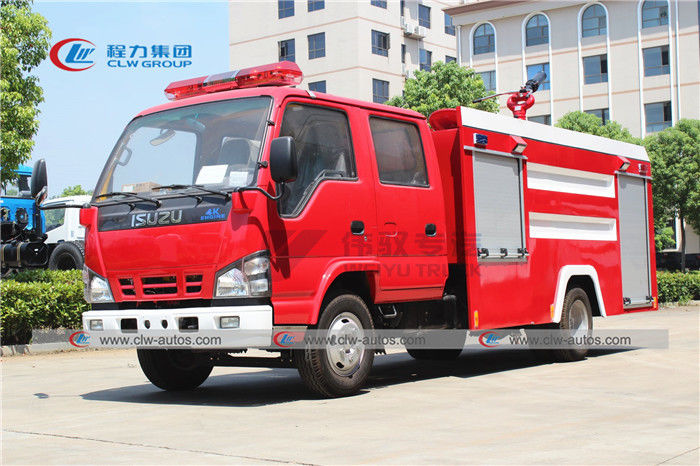

front side view of isuzu 3tons foam fire fighter truck
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 0

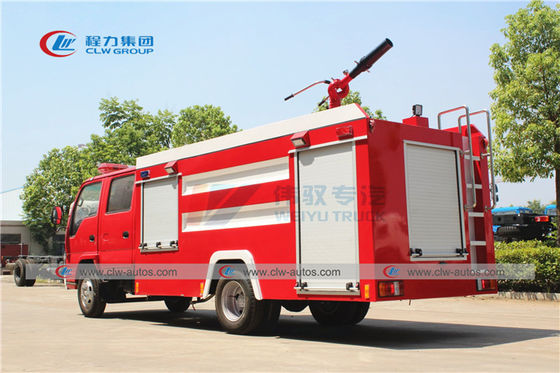

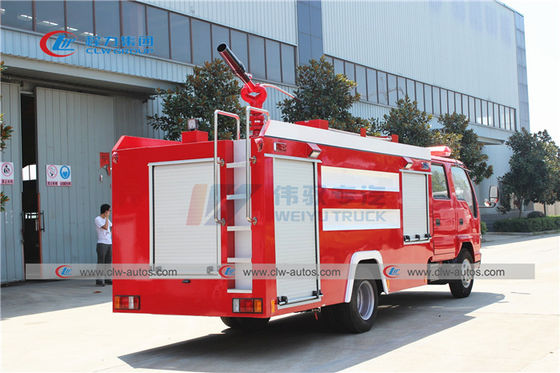

rear side view of isuzu 3tons foam fire fighter truck
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 1ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 2
front view of isuzu 3tons foam fire fighter truck
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 3
front side view of isuzu 3tons foam fire fighter truck
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 4

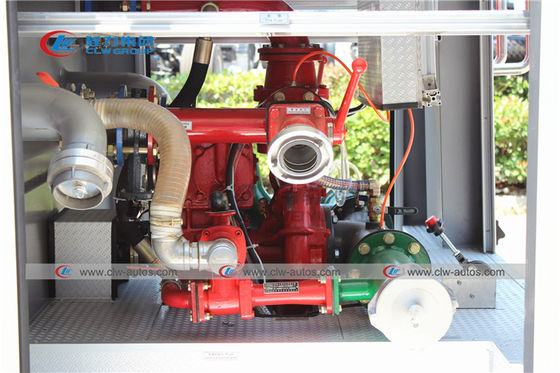

 Pump room of isuzu 3tons foam fire fighter truck
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 5
Manhole of isuzu 3tons foam fire fighter truck
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 6

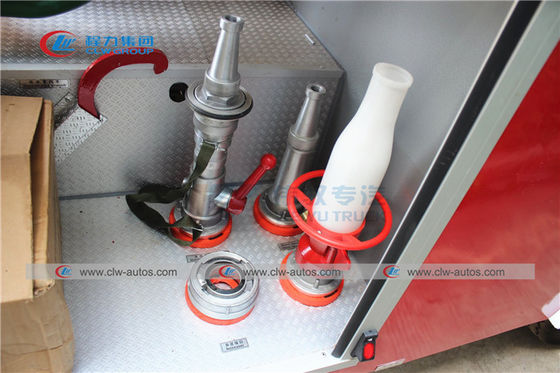

Fire fighting nozzle of isuzu 3tons foam fire fighter truck
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 7
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 8


ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 9

ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 10

ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 11

ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 12

ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 13

Why do you choose CLW group for isuzu 3tons foam fire truck?

Experience
more than 16 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale

More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of fire fighting truck I can order from your company?


A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied fire fighting trucks to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 14
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 15
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 16
ISUZU 600P 3T Fire Fighter Truck With Water And Foam Tank 17
