ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck

ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck

Large Image :  ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC,SGS,BV
Model Number: CLW5160WYXFC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 78560~11650 usd/unit
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/month
Detailed Product Description
Truck Chassis: ISUZU GIGA Fire Rescue Truck Capacity: 6tons 6t Fire Rescue Truck
Type: Water Tank,foam,dry Powder Fire Rescue Truck Fire Pump: CB10/60 Fire Rescue Truck
Flow Rate Of Pump: 48- 64L/S Fire Rescue Truck Steering: LHD Fire Rescue Truck
Engine Type: Diesel Engine Fire Rescue Truck Horsepower: 240HP Fire Rescue Truck
Water Tanker Size: 4000liters 4m3 Water Fire Rescue Truck Foam Tank Size: 2m3 2cbm 2000L Foam Fire Rescue Truck
Country: Myanmar,Cambodia,Philippines..
High Light:

6000L Fire Rescue Truck

,

240HP Fire Rescue Truck

,

ISUZU FVR Fire Brigade Truck

Japan ISUZU FVR 240HP 6Tons 6,000L 1500 Gallons Water Foam Fire Rescue Truck



Product Description



The Isuzu FVR fire rescue truck is composed of a second-class isuzu chassis, tank body, water pump, pipeline, instrument circuit system and other components. The isuzu fire rescue truck is equipped with aluminum alloy rear ladder (removable), the pump room is at the rear of the vehicle and the tank body is made of steel plate. Welding type, carrying water 2 square, foam 1 square, the water tank is made of high-quality carbon steel plate, the inside of the tank is treated with anti-corrosion, and the foam tank is made of 304 stainless steel. The vehicle is equipped with CB10/60 fire pump and PL48/64 dual-purpose fire monitor.


As a professional ffire rescue truck manufacturer in China, besides normal water fire truck,foam fire truck, we also have rescue fire truck,off road fire rescue truck ,full wheel drive fire rescue truck and so on.





Specifications of ISUZU FVR fire rescue truck

  • 1) Cabin:  Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
  • 2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
  • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
  • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
  • 5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.



Model Parameters others
Overall Dimension 8160×2500×3460
GVW 15560kg
Engine Model 6HK1-TCNG40
Engine Power 177kW
Wheelbase 4500mm
Driving Type 4X2
Max.speed 90km/h
Emission Standard 7790 ml Euro4
Passengers 1+1+4
Fire pump rated flow 60L/s@1.0Mpa; Vacuum pump
water monitor rated flow 48-64L/s Adjustable
Water monitor range Water range≥60m,foam≥55m
Approach angle ≥16°
Departure angle ≥23°
Item Parameters Parameters others
1 Water tank capacity water 4000㎏ Built-in type
  Foam tank capacity foam 2000㎏
2 Fire pump model CB10/60 Shanghai rongshen
3 Fire pump performance condition Pressure1:1.0Mpa flow:60L/S Use vacuum pump to priming water
4 the installation site of fire pump rear
5 The quantity of fire pump water outlet 4
6 Pressure gauge 0-1.6 Mpa, 2.6 level
7 Vacuum gauge -0.1- -1 MPa 2.6 level

8



Water monitor

(PL48-64YZ)

water

Flow:

48- 64L/S



Range:60m Shandong zhangqiu
foam Range:55m
Depression/Elevation angle -30-+70°
Turning angle 360°
9 PTO Model YTQ590K type full power sandwich , pneumatic

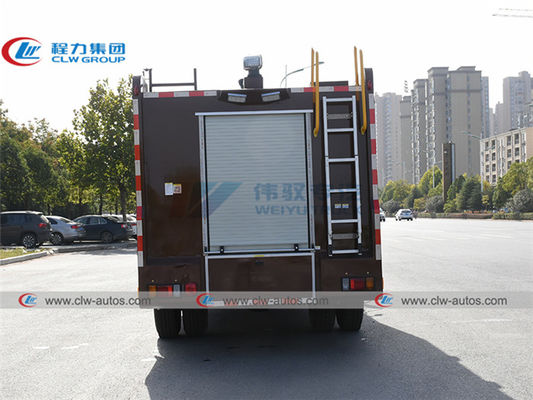

Rear view of ISUZU FVR water foam fire rescue truck
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 0

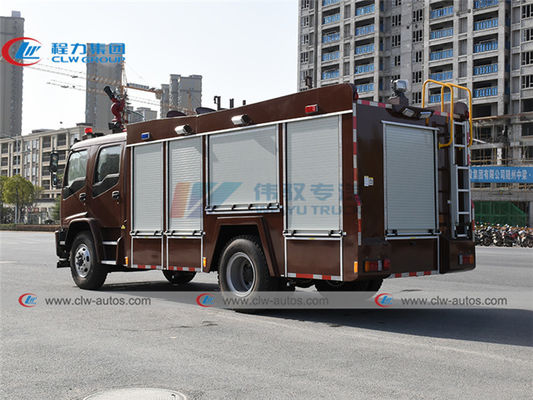

Rear side view of ISUZU FVR water foam fire rescue truck
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 1

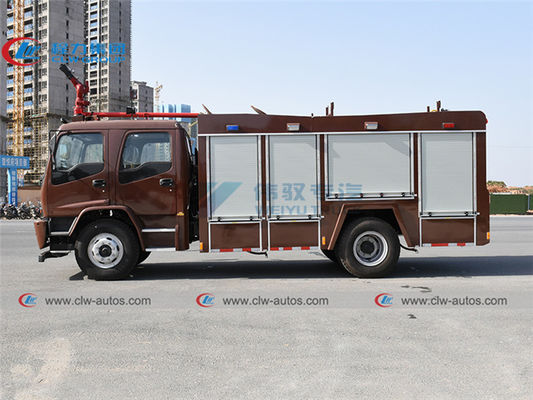

side view of ISUZU FVR water foam fire rescue truck
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 2

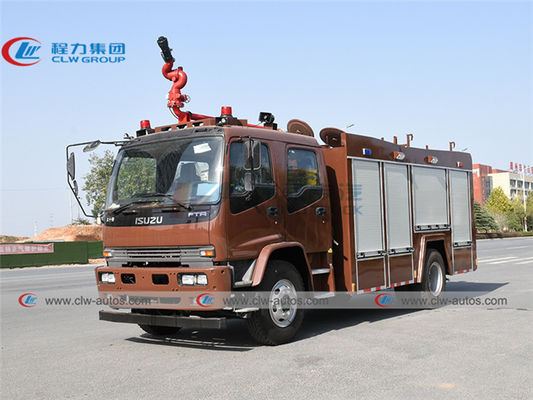

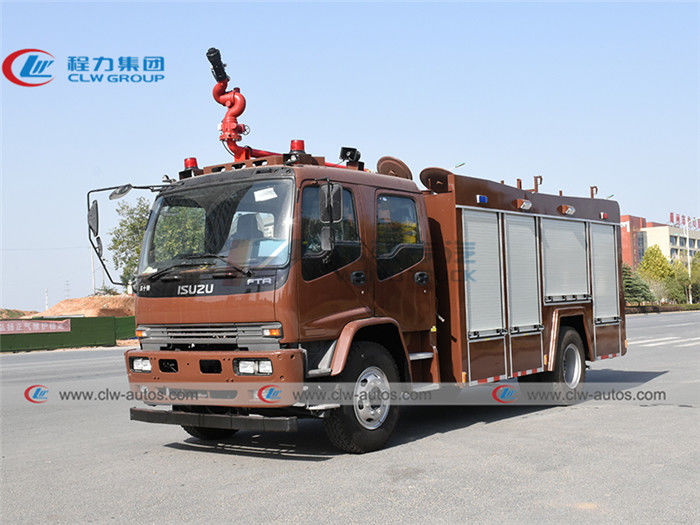

front view of ISUZU FVR water foam fire rescue truck
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 3
pump room of ISUZU FVR water foam fire rescue truck
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 4

ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 5

ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 6
Structure of ISUZU FVR water foam fire rescue truck
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 7
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 8
Equipment we will supply with fire rescue truck are as follows,

ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 9

Why do you choose CLW group for ISUZU fire rescue truck?
Experience
more than 16 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale

More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of fire fighting truck I can order from your company?


A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied fire fighting trucks to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.



Successful case

ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 10

ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 11
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 12
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 13
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 14
ISUZU FVR 240HP 6000L Water Foam Fire Rescue Truck 15
