Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck

Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck

Large Image :  Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC,SGS,BV
Model Number: CLW5250BUKWY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 49850~79650 usd/unit
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/month
Detailed Product Description
Truck Chassis: ISUZU/Dongfeng/Howo Foam Foam Fire Fighting Truck Capacity: 12tons 12t Foam Fire Fighting Truck
Type: Water Tank Fire Truck,foam,dry Powder Foam Fire Fighting Truck Fire Pump: CB10/60 Foam Fire Fighting Truck
Flow Rate Of Pump: 48m Foam Fire Fighting Truck Steering: LHD/RHD Foam Fire Fighting Truck
Engine Type: Diesel Engine Foam Fire Fighting Truck Horsepower: 290HP 336hp 371hp Foam Fire Fighting Truck
Water Tanker Size: 10000liters 10m3 10000L Foam Fire Fighting Truck Foam Tank Size: 2m3 2cbm 2m3 Foam Fire Fighting Truck
Water Tank Material: Carbon Steel/Stainless Steel Foam Fire Fighting Truck Foam Tank: Carbon Steel/stainless Steel Foam Fire Fighting Truck
High Light:

12T Fire Fighting Truck

,

336HP Fire Fighting Truck

,

Sinotruk Howo 6X4 Firefighter Truck

Sinotruk Howo 6X4 336HP 12T 10,000L Water Foam Fire Fighting Truck for Nigeria



Product Description



The Howo Foam Fire Fighting Truck is composed of a second-class howo chassis, tank body, water pump, pipeline, instrument circuit system and other components. The Foam Fire Fighting Truck is equipped with aluminum alloy rear ladder (removable), the pump room is at the rear of the vehicle and the tank body is made of steel plate. Welding type, carrying water 2 square, foam 1 square, the water tank is made of high-quality carbon steel plate, the inside of the tank is treated with anti-corrosion, and the foam tank is made of 304 stainless steel. The vehicle is equipped with CB10/60 fire pump and PL48 dual-purpose fire monitor.


As a professional fire fighting truck manufacturer in China, besides normal water fire truck,foam fire truck, we also have rescue fire truck,off road fire truck,full wheel drive fire truck and so on.





Specifications of Sinotruk Howo 6X4 336HP 12T 10,000L Water Foam Fire Fighting Truck for Nigeria

  • 1) Cabin:  Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
  • 2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
  • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
  • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
  • 5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.

Specification of Howo 6X4 336HP 12T Foam Fire Fighting Truck



1-General Condition of
Model Parameters others
Overall Dimension 10000×2500×3600mm
Driving model 6X4,left hand drive
GVW kg
Engine Model WD615.69
Engine Power 336HP/247KW
Wheelbase 4600+1350 mm
Driving Type 6X4
Gear box ,HW19710,10 speed forward and 2 reverse
PTO(Power take-off) Pneumatically controlled having ratio 0.828,and level for engaging the PTO inside cabin.
Max.speed 90km/h
Emission Standard 9726ml Euro II
Fire pump rated flow 60L/s@1.0MPa Vacuum pump
Fire monitor rated flow 48L/s@1.0MPa
Fire monitor range Water range≥55m;Foam range≥50m
Passengers 2+3
Approach angle 14°
Departure angle 11°
2-Spec. Of Chassis
Chassis Brand SINOTRUCK HOWO
Engine 247KW/336HP
Displacement 9726ml
Emission standards Euro II
Wheel base 4600+1350 mm
F/R axle 7000/16000*2kg
Tire 12R22.5 tire,10 pcs with one spare
3-Truck Cabin
Structure Flat cabin/4 doors/double row of seats
Passenger No 2+3
Drive type Left hand drive
Equipment Besides original dash board adding 100W siren,long line fire lights,marker lamp,outline marker lamp,PTO and so on
Dashboard Speed/fuel/rotating speed dashboard
4-Upper Body Frame and Spec.
The overall layout The front and two sides of the middle of the body are storage compartments. It is built-in type independent water tank in the middle position of the central compartment. The back of the body is pump compartment.
The aluminum alloy shutters are installed at both sides of the body and the back of the pump compartment, the ladders are installed on the back of the body at the right side.

Structure of Storage compartment Main frame is welding by high quality square pipe, exterior decoration plate is welded with carbon steel plate, the roof of the car is non-slip and people can walk on truck roof.
Storage compartment Located at rear of cabin with aluminum alloy shutters at two sides with lamp inside and can equipped with storage boxes as required.
Pump room Located at rear of truck with aluminum alloy shutters at two sides and rear,with lamp inside
Ladder and Handle Aluminum alloy two-section inverted ladder. Not more than 350mm from the ground during operation.The handle with grooves on the surface of the anti-slip circular steel tube with surface spray treatment.
5-Water Tank
Size 10,000Liters
Material

High quality carbon steel with epoxy coated and anti-corrosion treatment side tank.

Bottom thickness 5mm.side thickness 4mm,3mm baffles inside tank.

Fix of Water Tank Flexible connection with chassis frame
Manhole DN460 with quick opening and locking system
Overflow port DN65/1PC
Drain outlet DN40 with ball valve/1PC
Water Filling inlet Left and right of water tank/DN80/2PC
Water inlet and outlet 1 PC DN150 valve between water tank to water pump inlet,pneumatic or manual control;1 PC DN65 valve between water pump to water tank filling pipeline
6-Foam Tank
Size 2,000 liters
Material

High quality carbon steel with epoxy coated and anti-corrosion treatment side tank.

Bottom thickness 5mm.side thickness 4mm,3mm baffles inside tank.

Optional for stainless steel
Fix of Foam Tank Flexible connection with chassis frame
Manhole DN460 with quick opening and locking system
Overflow port DN40/1PC
Drain outlet DN40 with ball valve/1PC
Foam outlet DN40
7-Water Pump
Model No CB10/60 fire pump
Type Middle and low pressure centrifugal pump
Rated flow 60L/s@1.0MP
Outlet pressure 1.0 MPa
Maximum suction height 7m
Priming device Equipped with slide vane pump
Priming time ≤50s when max. Suction height
8-Pipeline System
Material High quality seamless steel pipeline
Water Suction system DN150 water inlet at both sides of pump compartment
Water outlet pipeline 2 PC of DN80 water filling inlets at Left and right sides of water tank.And 1 pc of DN65 water filling pipeline for water pump to water tank
Cooling system Cooling water line for PTO and control valve in case of over heating
9-Water fire Monitor
Model No PS60
Manufacturer Chengdu west fire machinery co. LTD
Rated flow 50L/s(adjustable)
Angle -15- +60°
Range ≥70meters
Rotation angle 360°
10-Foam fire Monitor
Model No PL48
Manufacturer Chengdu west fire machinery co. LTD
Rated flow 48L/s(adjustable)
Angle -15- +60°
Rotation angle 360°
11--Fire Fighting Control System
Control in Cabin Water pump off gear, alarming, lighting and signal device control
Control in Pump Room general power switch, parameter display, status display
Remarks English remarks
Display and control Marks on all operation buttons,with pipeline layout and operation/maintenance illustration. Dashboard lays upper-left in the pump room with RPM/Vacuum/water pressure/liquid level indicator and lighting/valves control switches
12- Electric System
Additional electrical Independent circuit
Auxiliary lighting lamps are installed in the pump compartment/storage compartment/Cabin.Operating dashboard is equipped with lighting switch, indicator light.etc. It is convenient for observation.
Side flashing light A set of red and blue flashing lights are installed on both sides of the vehicle body.
The warning device of the cabin

Long red light 1 piece, which is installed on the top of the cabin;

100W alarm 1 piece, which is controlled in the cabin;

The control box is installed below in front of the driver

The fire area lighting

35W fire lighting 1 piece at rear of truck roof

35W remote fire lighting

13-Truck surface Treatment
Painting High quality Chinese brand paint
Color Main R03 Red for fire truck

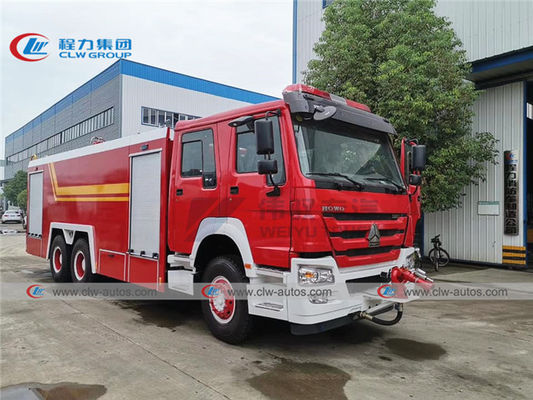

front side view of howo 12tons foam fire fighting truck
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 0

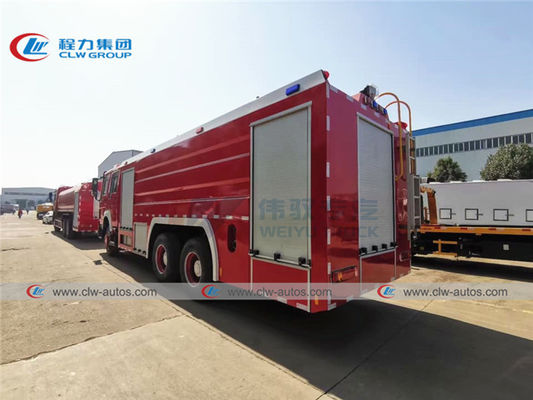

rear side view of howo 12tons foam fire fighting truck
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 1

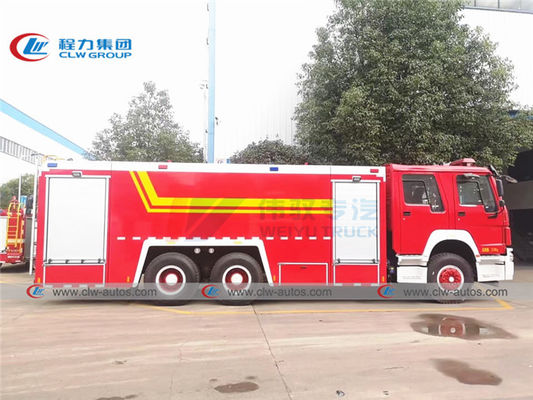

side view of howo 12tons foam fire fighting truck
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 2

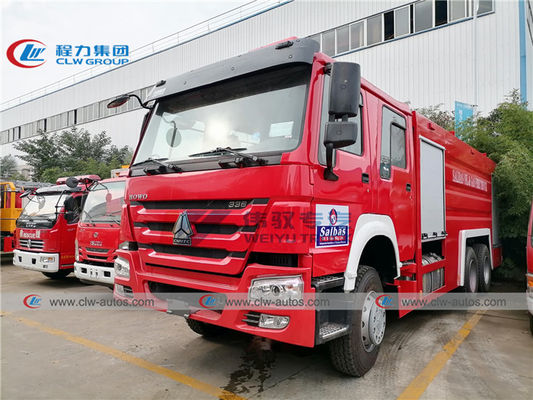

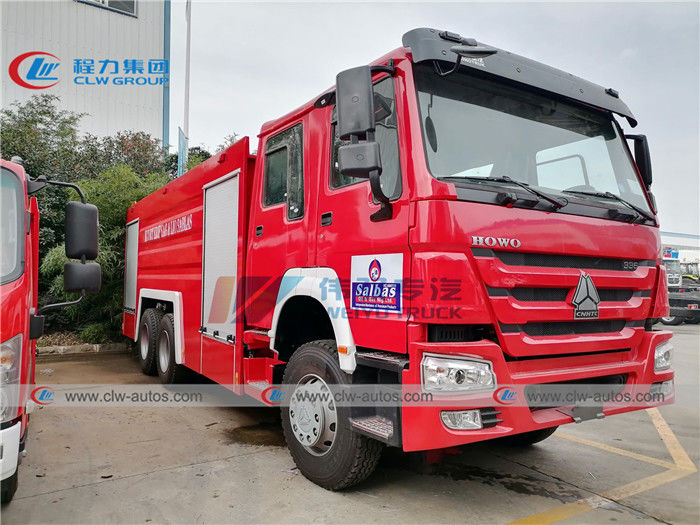

 howo 12tons foam fire fighting truck for Salbas oil and gas Ltd in nigeria from CLW group
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 3
howo 12tons foam fire fighting truck is optional for adding electric water cannon in front of truck
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 4
Pump room of howo 12tons foam fire fighting truck
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 5
Manhole of howo 12tons foam fire fighting truck
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 6
Fire fighting nozzle of howo 12tons foam fire fighting truck
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 7
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 8
Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 9


Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 10

Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 11

Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 12

Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 13

Sinotruk Howo 6X4 336HP 12T Water Foam Fire Fighting Truck 14

Why do you choose CLW group for howo 12tons foam fire fighting truck?

Experience
more than 16 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale

More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of fire fighting truck I can order from your company?


A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied fire fighting trucks to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
