HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsFire Brigade Truck

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC,SGS,BV
Model Number: CLW5160BUKWY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 28850~48650 usd/unit
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/month
Detailed Product Description
Truck Chassis: ISUZU/Dongfeng/Howo Water Fire Fighting Truck Capacity: 6tons 6t 8Tons 8T Water Fire Fighting Truck
Type: Water Tank Fire Truck,foam,dry Powder Water Fire Fighting Truck Fire Pump: CB10/60 Water Fire Fighting Truck
Flow Rate Of Pump: 48m Water Fire Fighting Truck Steering: LHD/RHD Water Fire Fighting Truck
Engine Type: Diesel Engine Water Fire Fighting Truck Horsepower: 170hp 190hp 210hp Water Fire Fighting Truck
Water Tanker Size: 60000liters 6m3 6000L Water Fire Fighting Truck Foam Tank Size: 2m3 2cbm 2m3 Water Fire Fighting Truck
Water Tank Material: Carbon Steel/Stainless Steel Water Fire Fighting Truck Foam Tank: Carbon Steel/stainless Steel Water Fire Fighting Truck
High Light:

6T Water Tank Fire Fighting Truck

,

8T Water Tank Fire Fighting Truck

,

Dongfeng 190HP Firefighter Truck

Cheap Dongfeng 190HP 6Tons 8Tons Water Tanker Fire Fighting Truck for Africa



Product Description



The Water Tanker Fire Fighting Truck is composed of a second-class howo chassis, tank body, water pump, pipeline, instrument circuit system and other components. The Water Tanker Fire Fighting Truck is equipped with aluminum alloy rear ladder (removable), the pump room is at the rear of the vehicle and the tank body is made of steel plate. Welding type, carrying water 2 square, foam 1 square, the water tank is made of high-quality carbon steel plate, the inside of the tank is treated with anti-corrosion, and the foam tank is made of 304 stainless steel. The vehicle is equipped with CB10/60 fire pump and PL48 dual-purpose fire monitor.


As a professional fire fighting truck manufacturer in China, besides normal water fire truck,foam fire truck, we also have rescue fire truck,off road fire truck,full wheel drive fire truck and so on.





Specifications of dongfeng Water Tanker Fire Fighting Truck for Africa

  • 1) Cabin:  Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
  • 2) Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
  • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
  • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
  • 5) Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.
  •

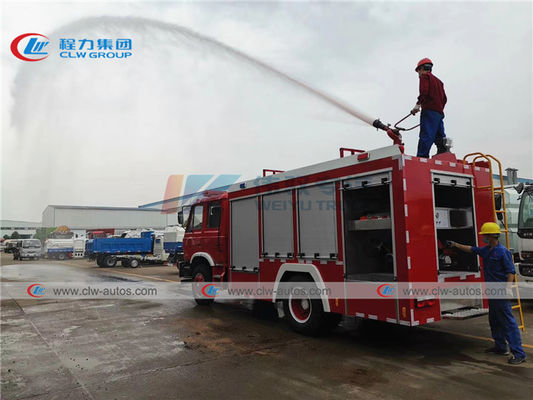

working and testing of dongfeng 6tons water fire fighting truck

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 0

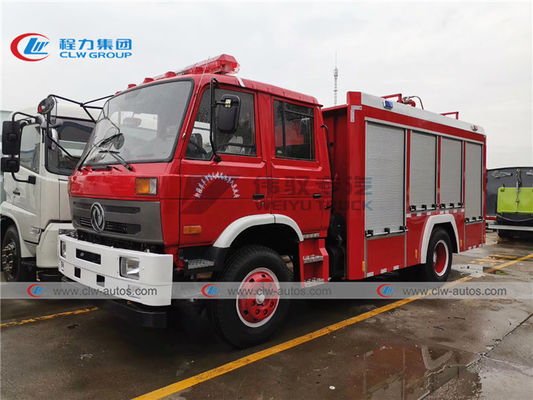

front side view of dongfeng 6tons water fire fighting truck

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 1

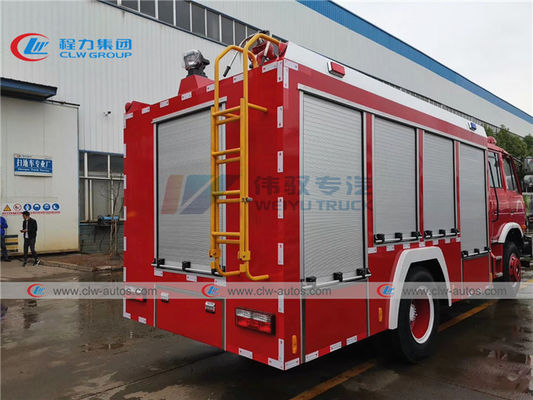

 rear side view of dongfeng 6tons water fire fighting truck

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 2

front cabin view of dongfeng 6tons water fire fighting truck
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 3

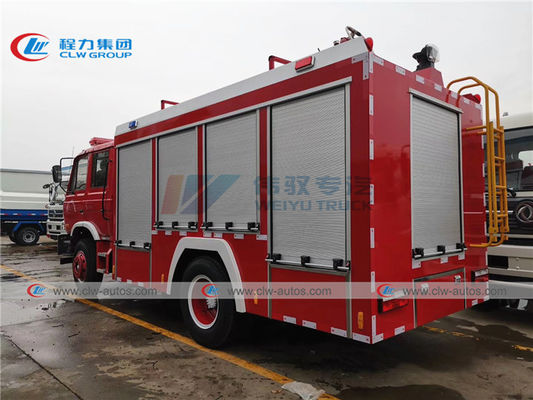

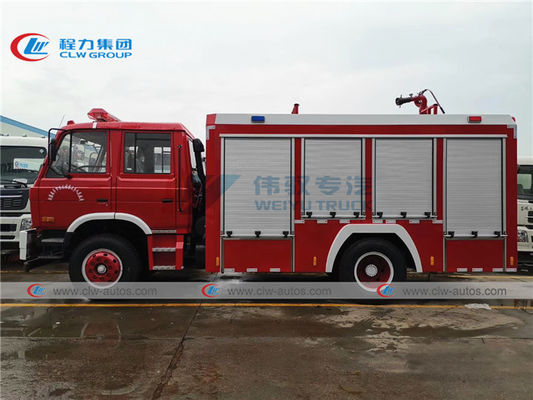

side view of dongfeng 6tons water fire fighting truck
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 4
Bulk delivery of 10units of dongfeng 6tons water fire fighting trucks to Kenya
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 5

8m3 Dongfeng brand fire fighting truck
General Vehicle Brand CLW
Chassis Brand Dongfeng
Overall Dimension 7990x2490x3410mm
GVW/Curb Weight 14900/4950kg
Front/rear track 1940/1860mm
Approach/departure angle 28/14 (°)
Front/rear suspension 1250/2180
Leaf spring 8/10+8
Cab Cab Seat 2+4
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 4500
Tyre Specification 10.00-20/10.00R20/10R22.5
Tyre No. 6+1
Max Speed 90km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model CUMMINS B 190 33
Engine Brand Dongfeng
Power 140kw/190hp
Displacement 5900cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top mounted alarm and siren
Others water flow 40L/S
Pump PS40
Pressure 1.0Mpa
Fire distance 55m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 6
 howo 12tons foam fire fighting truck for Salbas oil and gas Ltd in nigeria from CLW group
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 7
howo 12tons foam fire fighting truck is optional for adding electric water cannon in front of truck
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 8
Pump room of howo 12tons foam fire fighting truck
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 9
Manhole of howo 12tons foam fire fighting truck
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 10
Fire fighting nozzle of howo 12tons foam fire fighting truck
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 11
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 12
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 13


Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 14

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 15

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 16

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 17

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 18

Why do you choose CLW group for dongfeng 6tons water fire fighting truck?

Experience
more than 16 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale

More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of fire fighting truck I can order from your company?


A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied fire fighting trucks to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 19
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 20
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 21
Dongfeng 190HP 6T 8T Water Tank Fire Fighting Truck 22
