HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsFire Brigade Truck

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

Large Image :  LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC,SGS,BV
Model Number: CLW5080BUKWY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 18850~25650 usd/unit
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/month
Detailed Product Description
Truck Chassis: ISUZU/Dongfeng/Howo Firefighter Truck Capacity: 3tons 3t 2Tons 2T Firefighter Truck
Type: Water Tank Fire Truck,foam,dry Powder Water Firefighter Truck Fire Pump: CB10/20 Water Firefighter Truck
Flow Rate Of Pump: 20m Water Firefighter Truck Steering: LHD/RHD Firefighter Truck
Engine Type: Diesel Engine Firefighter Truck Horsepower: 116hp 140hp 160hp Water Firefighter Truck
Water Tanker Size: 30000liters 3m3 3000L Firefighter Truck Water Tank Material: Carbon Steel/Stainless Steel Firefighter Truck
Market: Myanmar,Cambidia,Vietnam,Laos..
High Light:

116HP Firefighter Truck

,

LHD Firefighter Truck

,

Howo Firefighting Truck

LHD Howo 116HP 6 Tires 3Tons 3000liters Water Tank Firefighter Truck For Myanmar



Product Description



The Water Tank Firefighter Truck is composed of a second-class howo chassis, tank body, water pump, pipeline, instrument circuit system and other components. The Water Tank Firefighter Truck is equipped with aluminum alloy rear ladder (removable), the pump room is at the rear of the vehicle and the tank body is made of steel plate. Welding type, carrying water 2 square, foam 1 square, the water tank is made of high-quality carbon steel plate, the inside of the tank is treated with anti-corrosion, and the foam tank is made of 304 stainless steel. The vehicle is equipped with CB10/20 fire pump and PL20 fire monitor.


As a professional firefighting truck manufacturer in China, besides normal water fire truck,foam fire truck, we also have rescue fire truck,off road fire truck,full wheel drive fire truck and so on.





Specifications of HOWO 3TONS Water Tank Firefighter Truck

  • 1) Cabin:  Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
  • 2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
  • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
  • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
  • 5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.
  •

working and testing of water Firefighter Truck

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 0

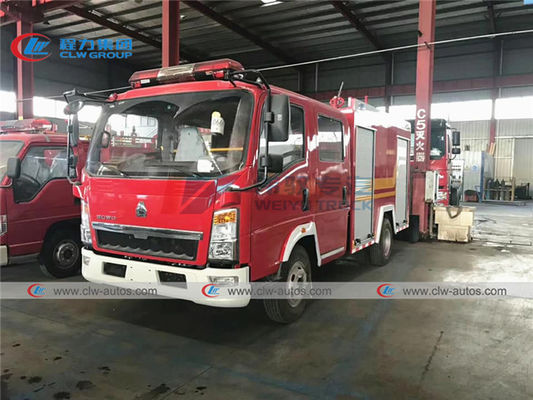

front side view of HOWO 3tons water Firefighter Truck

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 1

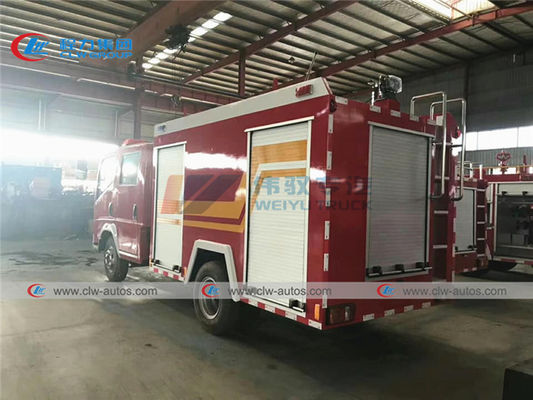

rear view of HOWO 3tons water Firefighter Truck

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 2

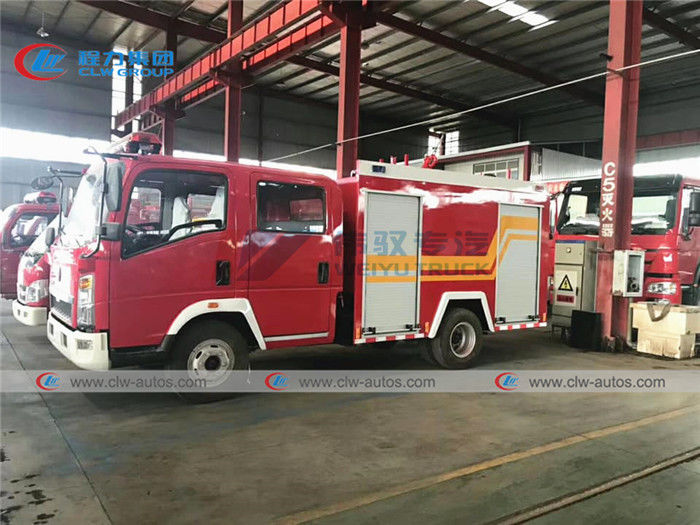

side view of HOWO 3tons water Firefighter Truck

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 3

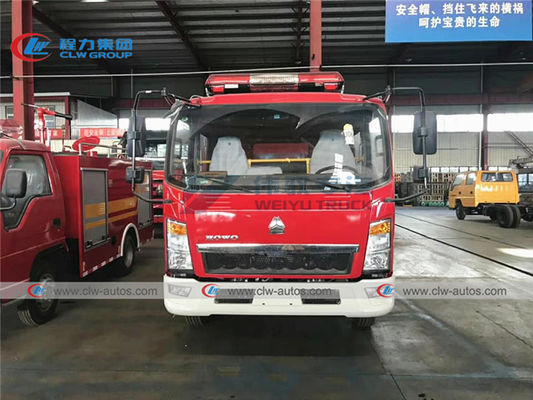

front view of HOWO 3tons water Firefighter Truck

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 4

Bulk delivery of HOWO 3tons water Firefighter Truck

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 5

Items Descriptions Specifications and Types
General Truck Name Howo Firefighter Truck
Drive Type 4*2
Gross Vehicle Weight(kg) 10000
Curb Weight (kg) 5000
Overall Dimensions (mm) 6900×2200×2980
Engine Engine Brand Yun Nei
Fuel Type Diesel
Power 116HP
Emission Standard Euro III
Displacement(ml) 3760
Engine Type 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis Chassis Brand HOWO
Cab Double row cab, flat roof
Tire No. 6+1
Tire Specification 8.25R16 Steel Tire
Wheelbase (mm) 3360
Axle No. 2
Steering Wheel Right Hand Drive or left hand drive with power-assisted
Gear Box 6 speed forward with 1 reverse, manual
Brake Air brake
Tank Water Tank Volume(L) 2000
Foam Tank Volume(L) 1000
Fire Pump Pump Model CB10/20
Flow 20L/s (Pressure:1.0MPa)
Fire Monitor Monitor Model PL24
Flow 24L/S
Rotation degree Horizontal:360°
Range Foam: more than 55m, Water: more than 60m
Equipment

Equipped with electric siren, rotation lamp, external ladder, fire fighting hose, suction hose, water filter, fire gun, hydrant wrench, suction wrench, water collection, water belt guard bridge, Water belt wrapper, water belt hook, fire axe, pick hammer, spade.


LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 6
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 7
 howo 12tons foam fire fighting truck for Salbas oil and gas Ltd in nigeria from CLW group
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 8
howo 12tons foam fire fighting truck is optional for adding electric water cannon in front of truck
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 9
Pump room of howo 12tons foam fire fighting truck
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 10
Manhole of howo 12tons foam fire fighting truck
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 11
Fire fighting nozzle of howo 12tons foam fire fighting truck
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 12
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 13


LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 14

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 15

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 16

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 17

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 18

Why do you choose CLW group for dongfeng 6tons water fire fighting truck?

Experience
more than 16 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale

More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of fire fighting truck I can order from your company?


A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied fire fighting trucks to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 19
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 20
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 21
LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank 22
