Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC,SGS,BV
Model Number: CLW5160SSKWX

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 16850~29650 usd/unit
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/month
Detailed Product Description
Truck Chassis: ISUZU/Dongfeng/Howo Water Sprinkler Fire Truck Capacity: 8tons 8t Water Sprinkler Fire Truck
Type: Water Tank Fire Truck,foam,dry Powder Water Sprinkler Fire Truck Fire Pump: CB10/30 Water Sprinkler Fire Truck
Flow Rate Of Pump: 30m Water Sprinkler Fire Truck Steering: LHD/RHD Water Sprinkler Fire Truck
Engine Type: Diesel Engine Water Sprinkler Fire Truck Horsepower: 170HP Water Sprinkler Fire Truck
Water Tanker Size: 8000liters 8m3 8000L Water Sprinkler Fire Truck Water Tank Material: Carbon Steel/Stainless Steel Water Sprinkler Fire Truck
Wheelbase: 3950mm Emmission: Euro III/IV/V
High Light:

8m3 Water Tanker Fire Brigade Truck

,

170HP Fire Brigade Truck

,

Dongfeng Water Sprinkler Fire Truck

Carbon Steel Dongfeng 170HP 8000L 8m3 Water Tanker Sprinkler Fire Truck



Product Description



Water sprinkler Fire Truck(Also called water bowser fire truck,water sprinkling fire fighting truck) is a simpflied water tank fire truck combined water sprinkler function and fire fighting function. Equipped with fire pump,the water sprinkler truck can be used as fire rescue in emergency,or it can also used as sanitation city cleaning water sprinkler truck.



  • 1) Cabin:  Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
  • 2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
  • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
  • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
  • 5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.

Specification of Dongfeng 8tons Water sprinkler Fire Truck



Chassis
Cabin Brand: DONGFENG
4x2 left hand drive or right hand drive
with air conditioner, could sit 2~3 fire fighter





Vehicle Main Dimensions

Overall dimensions (L x W x H) mm: 7800*2500*3425 mm
Wheel base: 3950 or 4500mm (mm)
Overhang (front/rear): 1500/2300(mm)
Approach angle: 33°
Departure angle: 17°
Weight in KGS Curb Weight:8050 kg
Max. driving speed(km/h) 90





Engine

Brand CUMMINS
Model B170 33
Horse Power 170 HP
Emission Euro III
Gearbox 6 Forwards gear & 1 reverse gear
Tire 9R22.5, 6pcs+1 spare tire
Driving axle 10 tons
Front axle 5 tons
Brake Oil brake
PTO Clamping take force
Steering Left hand drive
Upper parameters
Water tank volume 8000 liters
Manhole in the tank DN450
Thickness 4mm
Material Carbon steel and high tensile steel
Normal pressure fire fighting pump
Type of pump Centrifugal pump
Minimum fire fighting pump flow 30L/S
Minimum pressure 1.0Mpa
Flow (L/S) Outlet pressure(Mpa)

Rated speed(r/min)



Crank power (kw) Suction depth(m)
30 1 3010 50 3
21 1.3 3340 55.2 3
15 1 3000 38.6 7
Fir fighting fixed water cannon in the top of truck
Diameter (mm) φ100
Flow (L/min) 30L/min
Max range (m) ≥ 60m
Working pressure(Mpa) ≤0.7 MPa
Vertical rotation angle( degree) -30~70
Horizontal rotation angle (degree) 360
Size(mm) 1000*340*600
Weight (kg) ≤ 50
Pipe system
Pipe Line inlet 2 inlet, φ125 inlet in the pump;φ65 inlet in the back of pump
Pipe Line outlet 2 outlet, φ65, in the back of pump

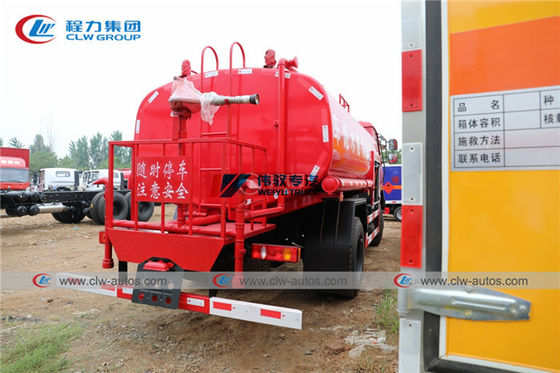

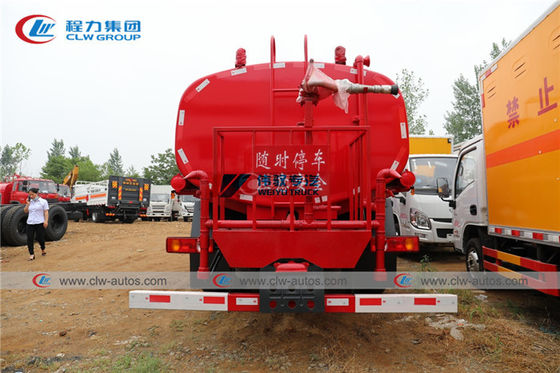

rear view of dongfeng 8000Liters Water sprinkler Fire Truck

Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 0

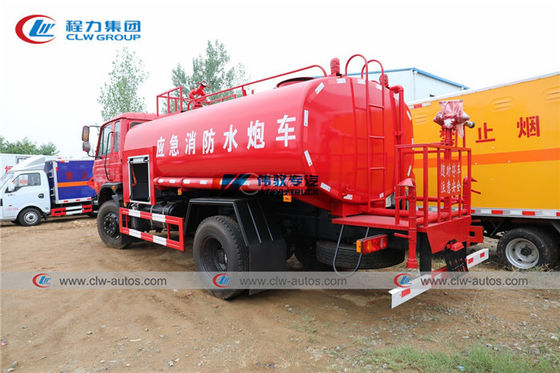

rear side view of dongfeng 8000Liters Water sprinkling Fire Truck
Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 1

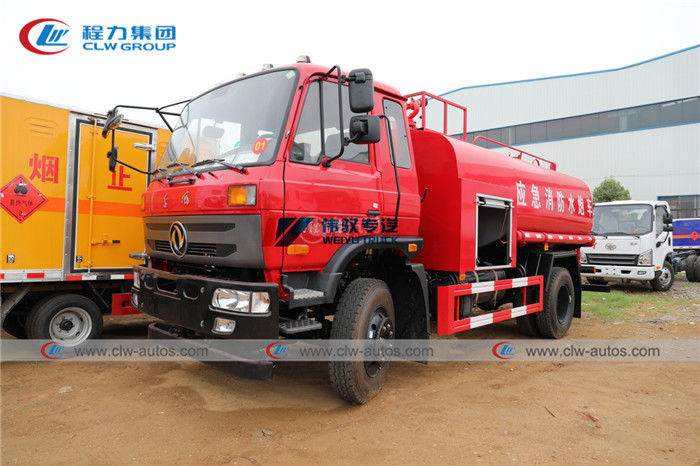

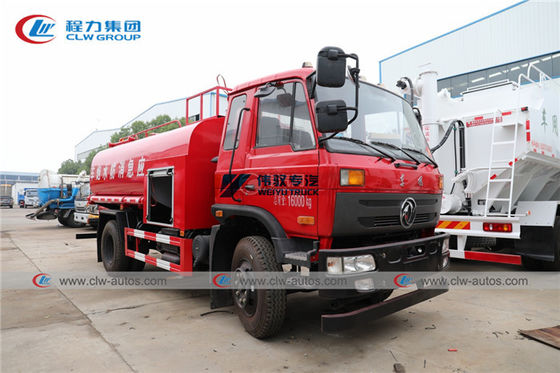

front view of dongfeng 8000Liters Water tanker Fire Truck
Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 2

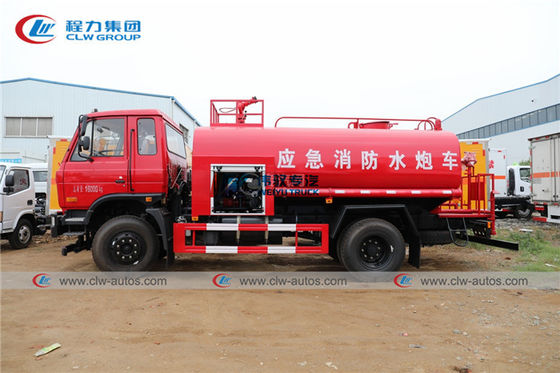

Side view of dongfeng 8000Liters Water sprinkler Fire Truck
Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 3
PS30 fire monitor of dongfeng 8000Liters Water sprinkler Fire Truck
Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 4
pump room  of dongfeng 8000Liters Water sprinkler Fire Truck
Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 5

Structure drawing of dongfeng 8000Liters Water sprinkler Fire Truck

Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 6
  Details of dongfeng 8000Liters Water sprinkler Fire Truck
Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 7
Other Water Sprinkler Fire Truck with different truck brands and tanker capacity
Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 8

Dongfeng 170HP 8m3 Carbon Steel Water Tanker Fire Brigade Truck 9


Why do you choose CLW group for dongfeng Water sprinkler Fire Truck?

Experience
more than 16 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale

More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of fire fighting truck I can order from your company?


A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied fire fighting trucks to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
