LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC,SGS,BV
Model Number: CLW5070BUKWY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 18850~25650 usd/unit
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/month
Detailed Product Description
Truck Chassis: ISUZU/Dongfeng/Howo Fire Fighting Truck Capacity: 3.5tons 3.5t 3Tons 3T Fire Fighting Truck
Type: Water Tank Fire Fighting Truck Fire Pump: CB10/30 Fire Fighting Truck
Flow Rate Of Pump: 30m Fire Fighting Truck Steering: LHD/RHD Fire Fighting Truck
Engine Type: Diesel Engine Fire Fighting Truck Horsepower: 120hp Fire Fighting Truck
Water Tanker Size: 3500liters 3.5m3 3500L Fire Fighting Truck Water Tank Material: Carbon Steel/Stainless Steel Fire Fighting Truck
Market: Myanmar,Cambidia,Vietnam,Laos,phillipines...
High Light:

3500L Water Tanker Fire Fighting Truck

,

LHD Fire Fighting Truck

,

Dongfeng Firefighting Truck

Cheap Price Small Dongfeng 3500L 3.5T Water Tanker Fire Fighting Truck



Product Description



Fire Fighting Truck is composed of a second-class howo chassis, tank body, water pump, pipeline, instrument circuit system and other components. The Firefighting Apparatus is equipped with aluminum alloy rear ladder (removable), the pump room is at the rear of the vehicle and the tank body is made of steel plate. Welding type, carrying water 3.5 square meters, the water tank is made of high-quality carbon steel plate, the inside of the tank is treated with anti-corrosion, The vehicle is equipped with CB10/30 fire pump and PL30 fire monitor.


As a professional firefighting truck manufacturer in China, besides normal water fire truck,foam fire truck, we also have rescue fire truck,off road fire truck,full wheel drive fire truck and so on.





Specifications of Dongfeng 3500L Fire Fighting Truck

  • 1) Cabin:  Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
  • 2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
  • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
  • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
  • 5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.
  •

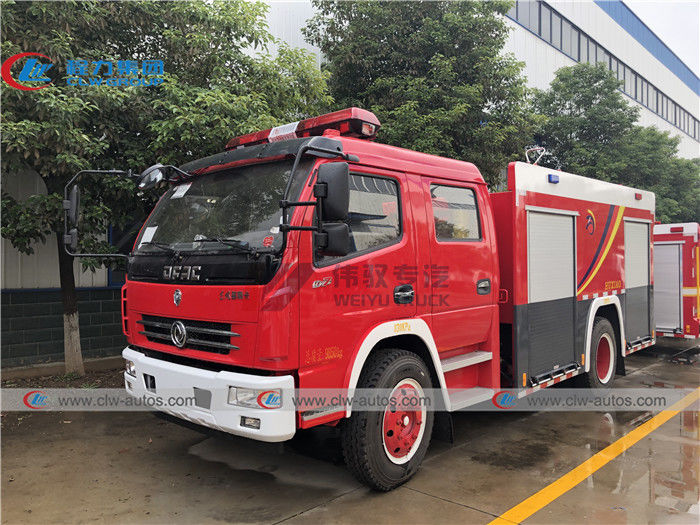

working and testing of Dongfeng 3500L Fire Fighting Truck

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 0

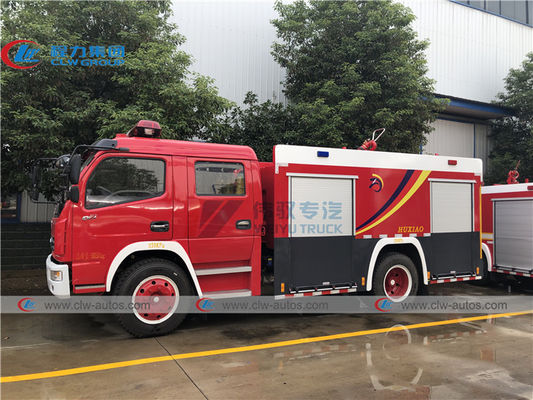

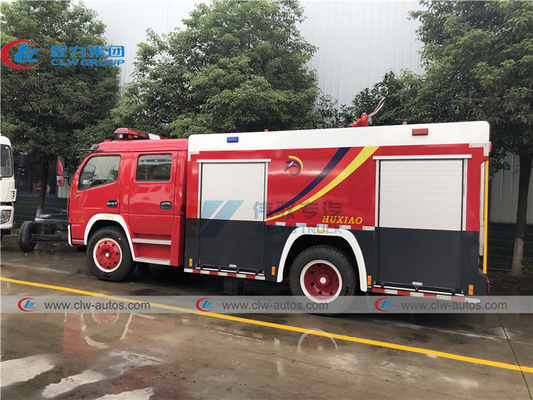

side view of Dongfeng 3500L Fire Fighting Truck

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 1

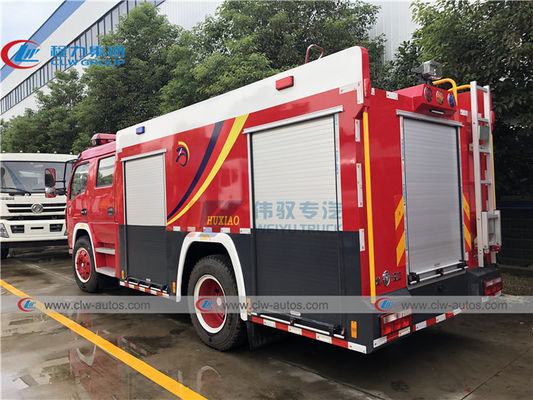

side rear view of Dongfeng 3500L Fire Fighting Truck

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 2

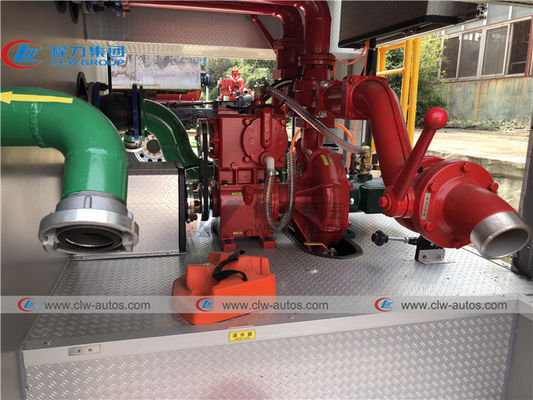

 pump room of Dongfeng 3500L Fire Fighting Truck

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 3

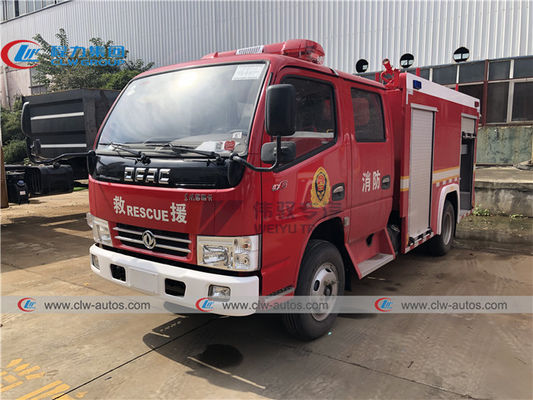

front view of Dongfeng 3500L Fire Fighting Truck

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 4

Also we have howo 3500L fire fighting truck as follows,

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 5



Double row dongfeng 3500L water tank fire truck
General Vehicle Brand CLW
Chassis Brand Dongfeng
Overall Dimension 6840x2190x3010mm
GVW/Curb Weight 8395kg
Front/rear track 1745/1620mm
Approach/departure angle 21/13 (°)
Front/rear suspension 1130/1910
Leaf spring 8/10+7
Cab Cab Seat 5,6
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 3800
Tyre Specification 7.50R16
Tyre No. 6+1
Max Speed 95km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model CY4102BZQ
Engine Brand Dongfeng
Power 88kw/120hp
Displacement 3856cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top mounted alarm and siren
Others water flow 30L/S
Pump PS30
Pressure 1.0Mpa
Fire distance 50m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional




LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 6
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 7
 howo 12tons foam fire fighting truck for Salbas oil and gas Ltd in nigeria from CLW group
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 8
howo 12tons foam fire fighting truck is optional for adding electric water cannon in front of truck
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 9
Pump room of howo 12tons foam fire fighting truck
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 10
Manhole of howo 12tons foam fire fighting truck
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 11
Fire fighting nozzle of howo 12tons foam fire fighting truck
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 12
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 13


LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 14

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 15

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 16

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 17

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 18

Why do you choose CLW group for dongfeng 6tons water fire fighting truck?

Experience
more than 16 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale

More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of fire fighting truck I can order from your company?


A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied fire fighting trucks to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 19
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 20
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 21
LHD RHD Double Row Dongfeng Fire Fighting Truck With 3500L Water Tanker 22
