Dongfeng 170HP 5000L Water Tanker Firefighting Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 170HP 5000L Water Tanker Firefighting Truck

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Dongfeng 170HP 5000L Water Tanker Firefighting Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC,SGS,BV
Model Number: CLW5160BUKWY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 28850~38650 usd/unit
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/month
Detailed Product Description
Truck Chassis: ISUZU/Dongfeng/Howo Water Tanker Fire Truck Capacity: 6tons 6t 5Tons 5T Water Tanker Fire Truck
Type: Water Tank Fire Truck,foam,dry Powder Water Tanker Fire Truck Fire Pump: CB10/40 Water Tanker Fire Truck
Flow Rate Of Pump: 32m Water Tanker Fire Truck Steering: LHD/RHD Water Tanker Fire Truck
Engine Type: Diesel Engine Water Tanker Fire Truck Horsepower: 170hp 190hp 210hp Water Tanker Fire Truck
Water Tanker Size: 5000liters 5m3 5000L Water Tanker Fire Truck Water Tank Material: Carbon Steel/Stainless Steel Water Tanker Fire Truck
Pipeline: Stainless Steel Or Carbon Steel Water Tanker Fire Truck Country: Kenya,Uganda,Cambodia,Laos,Vietnam,Nigeria Water Tanker Fire Truck
High Light:

5000L Water Tanker Firefighting Truck

,

Dongfeng Firefighting Truck

,

170HP Fire Service Truck

Dongfeng 170HP 5000L 5Tons Water Tanker Fire Truck For Emergency Firefighting Service



Product Description



The Water Tanker Fire Truck is composed of a second-class dongfeng chassis, tank body, water pump, pipeline, instrument circuit system and other components. The Water Tanker Fire Truck is equipped with aluminum alloy rear ladder (removable), the pump room is at the rear of the vehicle and the tank body is made of steel plate. Welding type, carrying water 5000liters or 4000liters water and 2m3 foam, the water tank is made of high-quality carbon steel plate, the inside of the tank is treated with anti-corrosion, and the foam tank is made of 304 stainless steel. The vehicle is equipped with CB10/40 fire pump and PL32 dual-purpose fire monitor.


As a professional fire fighting truck manufacturer in China, besides normal water tanker fire truck,foam fire truck, we also have rescue fire truck,off road fire truck,full wheel drive fire truck,forest fire truck and so on.





Specifications of 5Tons Water Tanker Fire Truck

  • 1) Cabin:  Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
  • 2) Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
  • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
  • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
  • 5) Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.

working and testing of dongfeng 5Tons Water Tanker Fire Truck

Dongfeng 170HP 5000L Water Tanker Firefighting Truck 0

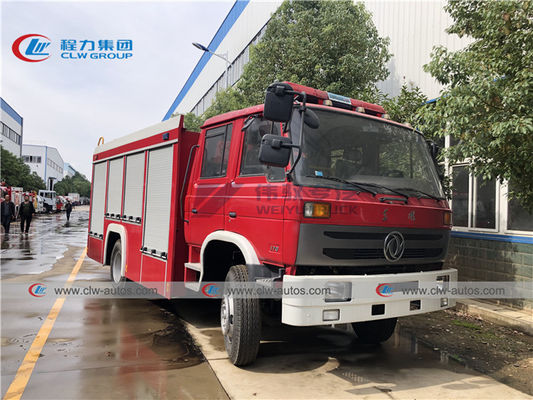

front side view of dongfeng 5Tons Water Tanker Fire Truck

Dongfeng 170HP 5000L Water Tanker Firefighting Truck 1

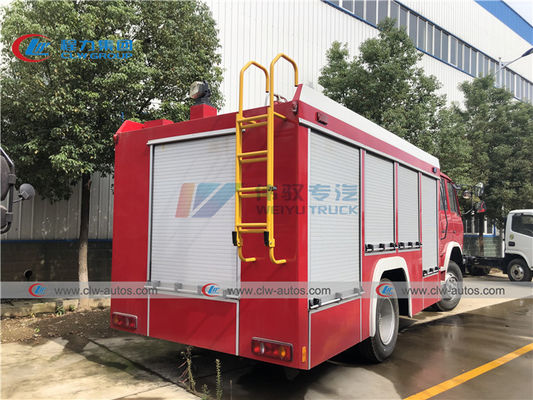

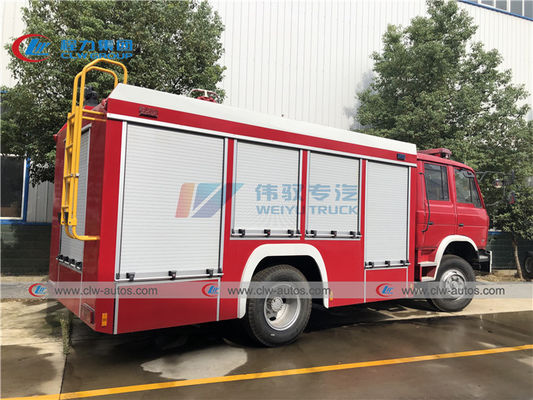

 rear side view of dongfeng 5Tons Water Tanker Fire Truck

Dongfeng 170HP 5000L Water Tanker Firefighting Truck 2

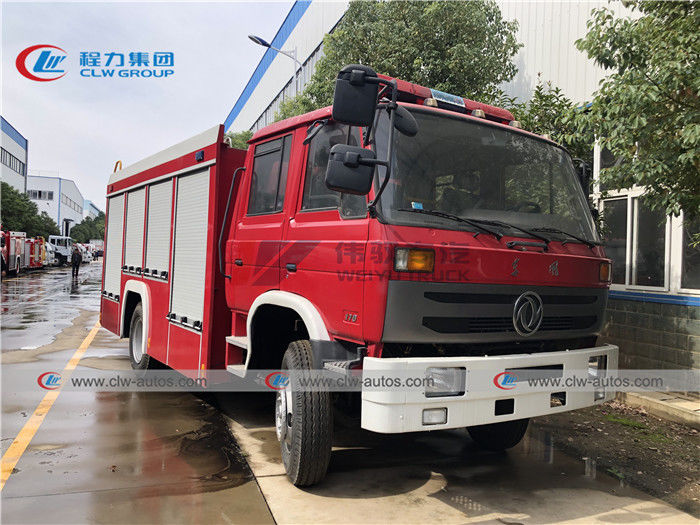

front cabin view of dongfeng 5Tons Water Tanker Fire Truck
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 3

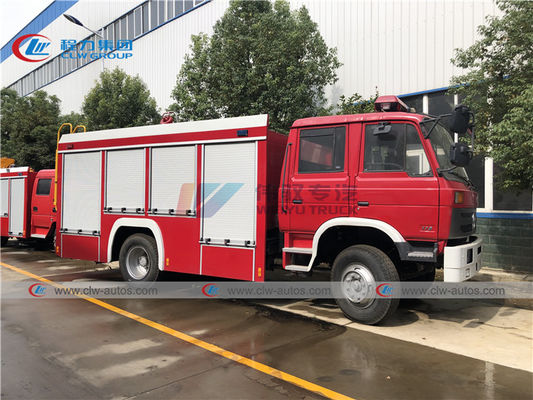

side view of dongfeng 5Tons Water Tanker Fire Truck
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 4

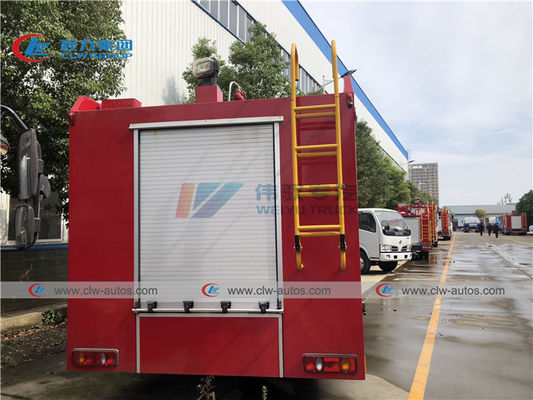

Rear view of dongfeng 5Tons Water Tanker Fire Truck
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 5
Bulk delivery of 10units of dongfeng 5Tons Water Tanker Fire Trucks to Kenya
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 6

Dongfeng brand fire fighting truck
General Vehicle Brand CLW
Chassis Brand Dongfeng
Overall Dimension 7990x2490x3410mm
GVW/Curb Weight 14900/4950kg
Front/rear track 1940/1860mm
Approach/departure angle 28/14 (°)
Front/rear suspension 1250/2180
Leaf spring 8/10+8
Cab Cab Seat 2+4
Air Conditioner optional
Chassis Drive Type 4x2
Transmission Manual
Wheelbase 4500/3950
Tyre Specification 10.00-20/10.00R20/10R22.5
Tyre No. 6+1
Max Speed 90km/h
Paint Red or as request
Engine Fuel Type diesel
Engie Model CUMMINS B 170 33
Engine Brand Dongfeng
Power 122kw/170hp
Displacement 5900cc
Emmission Standard Euro 3
Superstructure front and rear cupboard room, top mounted fire monitor,rear folding ladder, top mounted alarm and siren
Others water flow 40L/S
Pump PS40
Pressure 1.0Mpa
Fire distance 55m
Optional Colour for optional, LHD and RHD for optional,Air conditioner for optional

Dongfeng 170HP 5000L Water Tanker Firefighting Truck 7
 howo 12tons foam fire fighting truck for Salbas oil and gas Ltd in nigeria from CLW group
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 8
howo 12tons foam fire fighting truck is optional for adding electric water cannon in front of truck
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 9
Pump room of howo 12tons foam fire fighting truck
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 10
Manhole of howo 12tons foam fire fighting truck
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 11
Fire fighting nozzle of dongfeng 5Tons Water Tanker Fire Truck
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 12
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 13
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 14


Dongfeng 170HP 5000L Water Tanker Firefighting Truck 15

Dongfeng 170HP 5000L Water Tanker Firefighting Truck 16

Dongfeng 170HP 5000L Water Tanker Firefighting Truck 17

Dongfeng 170HP 5000L Water Tanker Firefighting Truck 18

Dongfeng 170HP 5000L Water Tanker Firefighting Truck 19

Why do you choose CLW group for dongfeng 5Tons Water Tanker Fire Truck?
Experience
more than 16 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale

More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of fire fighting truck I can order from your company?

A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied fire fighting trucks to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Dongfeng 170HP 5000L Water Tanker Firefighting Truck 20
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 21
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 22
Dongfeng 170HP 5000L Water Tanker Firefighting Truck 23
