Product Details:
Payment & Shipping Terms:
|
| Truck Chassis: | ISUZU/Dongfeng/Howo Heavy Rescue Fire Truck | Type: | Water Tank Fire Truck/Heavy Rescue Fire Truck |
|---|---|---|---|
| Steering: | LHD/RHD Heavy Rescue Fire Truck | Engine Type: | Diesel Engine Heavy Rescue Fire Truck |
| Horsepower: | 266HP 290HP 336hp 371hp Heavy Rescue Fire Truck | Lighting System: | 4 Pcs Of 1000W Heavy Rescue Fire Truck |
| Lifting Height: | 7.6 Meters Heavy Rescue Fire Truck | Crane Brand: | CLW/XCMG/PALFINGER Heavy Rescue Fire Truck |
| Crane Capacity: | 5Tons/5000kg Heavy Rescue Fire Truck | Front Electric Winch: | 24VDC/240A Heavy Rescue Fire Truck |
| Generator: | 380V 10KV/A Heavy Rescue Fire Truck | Wheelbase: | 4600mm Heavy Rescue Fire Truck |
| High Light: | 336HP Rescue Fire Truck,Sinotruk Howo Rescue Fire Truck,5T Firefighter Truck |
||

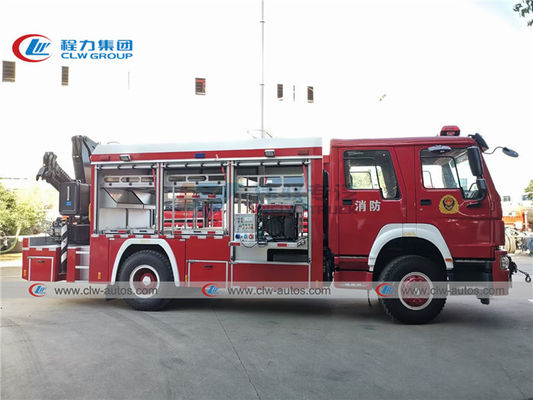

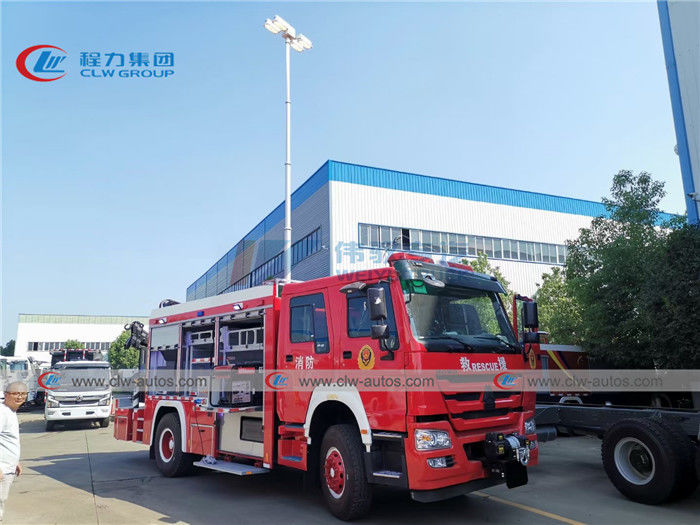

Sinotruk Howo 336HP 5Tons Heavy Rescue Fire Truck With 5Tons Winch
Product Description
Heavy Fire Trucks are divided into water tank fire trucks, foam fire trucks, dry powder fire trucks, compressed air foam fire trucks, rescue fire fighter trucks, elevated jet fire trucks, ladder fire trucks, illuminated fire trucks, smoke exhaust fire trucks, pumps Categories such as fire trucks and fire command vehicles.
Heavy Rescue Fire Truck is equipped with a variety of fire rescue equipment, special protective equipment for firefighters, fire rescue tools and fire source detectors. It is a dedicated fire truck for rescue tasks.

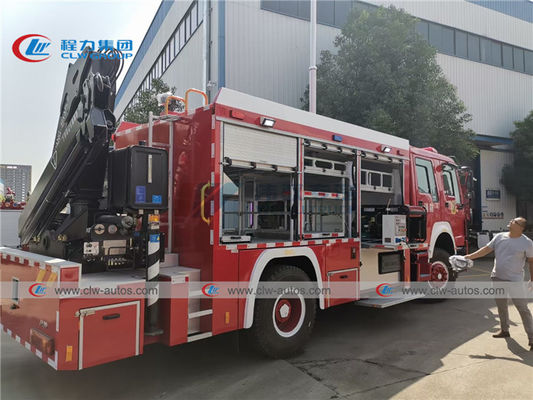

The Heavy Rescue Fire Truck consists of a chassis, an upper case (with rescue equipment inside), a power take-off and a transmission device, a generator (shaft belt or independent generator set), a winch (hydraulic or electric), and a crane (folding arm, Located at the rear of the car body), lifting lighting system, electrical system. According to the purpose of the rescue fire truck, the specific configuration of the truck is different. Optional installation of truck crane, winch, generator, lifting lamp, etc.
Highlights of Howo Heavy Rescue Fire Truck
1) Sinotruk HOWO rescue fire truck adopts original Sinotruk chassis, HOWO double-row cab, Sinotruk 290 horsepower engine, 10 gearbox, 16 tons rear axle, 12.00-20/12.00R20 tires.
2) The top is equipped with imported Honda 12.5KW generator set, 4 sets of 1000W lifting lights which can raise 13 meters

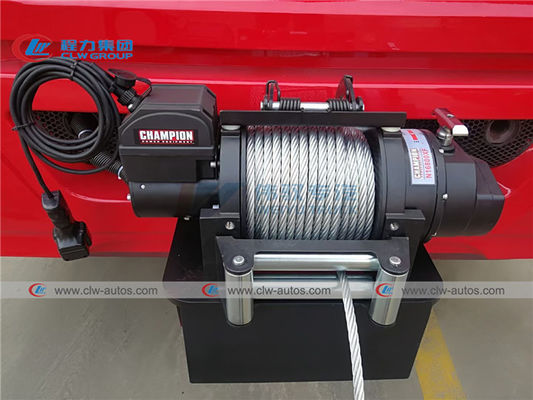

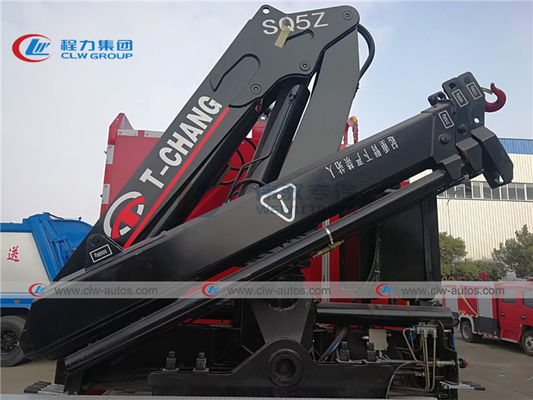

3) the front of Heavy Rescue Fire Truck is equipped with a 12-ton electric winch for American champions and the rear is equipped with a XCMG 5-ton knuckle boom crane.

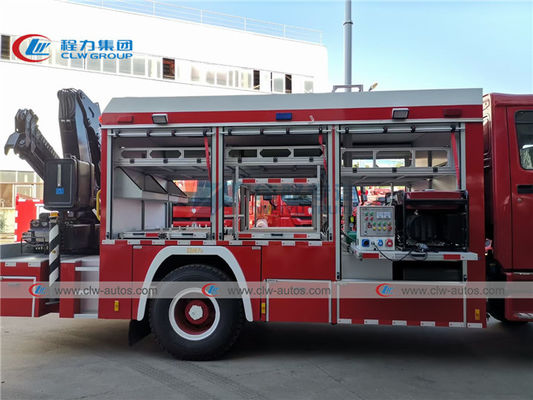

4) The inventory in the box is a pull-out type. Telescopic expansion structure, 3 aluminum alloy rolling shutters on the left and right sides.
5) The truck can be pulled and hoisted and can be operated at night. It is used for rescue operations in emergency situations. It is powerful, convenient and reliable.
Specification of Heavy Rescue Fire Truck
| Howo rescue fire truck | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | HOWO | |
| Overall Dimension | 9135x2500x3600mm | |
| GVW/Curb Weight | 14600/14150kg | |
| Front/rear track | 2022/1830mm | |
| Approach/departure angle | 14/10 (°) | |
| Front/rear suspension | 1500/2640mm | |
| Leaf spring | 10/9+6 | |
| Cab | Cab Seat | 2 seats |
| Air Conditioner | optional | |
| Chassis | Drive Type | 4x2 |
| Transmission | Manual | |
| Wheelbase | 4600 | |
| Tyre Specification | 12.00-20 | |
| Tyre No. | 6+1 | |
| Max Speed | 95km/h | |
| Paint | Red or as request | |
| Engine | Fuel Type | diesel |
| Engie Model | WD615.87 | |
| Engine Brand | HOWO | |
| Power | 290HP | |
| Displacement | 9726cc | |
| Emmission Standard | Euro II | |
| Superstructure | Front winch,rear hydraulic lifting crane | |
| Up and down lighting system | Main light | 4x1000W Yuntai DC12V |
| Electric control case | AC 380V wired control | |
| Hydraulic lifting crane | Max loading capacity | 5000kg |
| Max lifting height | 7.4m | |
| Max support leg distance | 3540 m m | |
| Front equipped winch | Front winch capacity | 3629kg |
| Speed | 5.6m/min | |
| Voltage | 24VDC 240A | |
| Generator | Generator | 380V,10kv/A |
| Optional | Colour for optional, LHD and RHD for optional,Air conditioner for optional | |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fire fighting truck I can order from your company?
A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied fire fighting trucks to any overseas companies?
A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
