HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsTruck Mounted Telescopic Crane

Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane

Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane
Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane

Large Image :  Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC, ISO,BV,SGS
Model Number: CLW5251WYSCD

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Naked Packed with Wax
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, Western Union, Western Union, MoneyGram
Supply Ability: 500 untis/month
Detailed Product Description
Truck Brand: Dongfeng,Howo,FAW,foton,JAC,JMC,ISUZU Truck With Crane Engine Brand: Cummins Truck With Crane
Gearbox: Manual, 8 Forward &1 Reverse Truck With Crane Crane Brand: SANY,XCMG,CLW Truck With Crane
Crane Capacity: 3.2tons,4tons,5tons,6.3ton,8ton,10ton,12tons Truck With Crane, Tire: 10.00R20,10R22.5 Truck With Crane
Crane Boom Type: Straight Arm Crane,knuckle Boom Crane Truck With Crane Horsepower: 210HP,240HP Truck With Crane
High Light:

Dongfeng 6x4 Fence Truck

,

8.5M Fence Truck

,

XCMG Crane Fencing Truck

Dongfeng 6X4 210HP Fence Truck with 10Tons Straight Arm XCMG Crane SQS250-4

Product Description

Truck with crane(also called boom crane truck,truck with crane,crane truck,xcmg crane truck,palfinger crane truck,lorry mounted crane,truck mounted crane,knuckle boom crane truck,folding arm crane truck,crane truck mounted cargo truck,boom crane,boom crane truck,articulated crane truck) is used to lift,rotate and craing heavy equipment through hydraulic lifting and stretch.



-- truck with crane can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc truck with crane;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 truck with crane;

3) according to towing capacity:2tons,3.2tons,4tons,5tons,6.3tons,8tons,10tons,12tons,16tons,20tons truck with crane

4) according to crane type: straight-arm and folding arm truck with crane

5) according to crane brand:XCMG(China top brand),Palfinger,CLW own brand,Changxing,Dalishen truck with crane



  • Heavy Duty Cargo box.
  • H Shape Hydraulic front & Rear Leg for safety.
  • Folded Arm & Telescopic Straight Arm Crane for option.
  • Crane capacity of truck mounted straight arm crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
  • 14ton,16ton,20ton,25ton

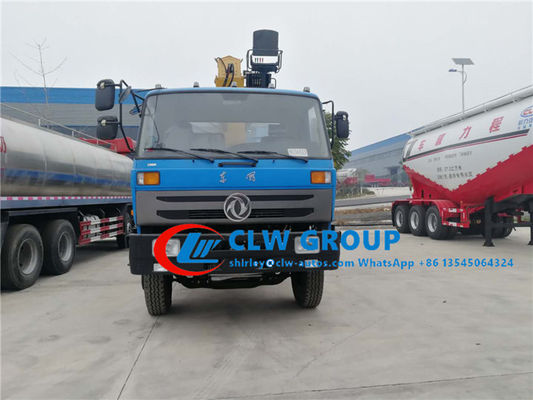

Front view of dongfeng 10tons truck with crane

Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane 0

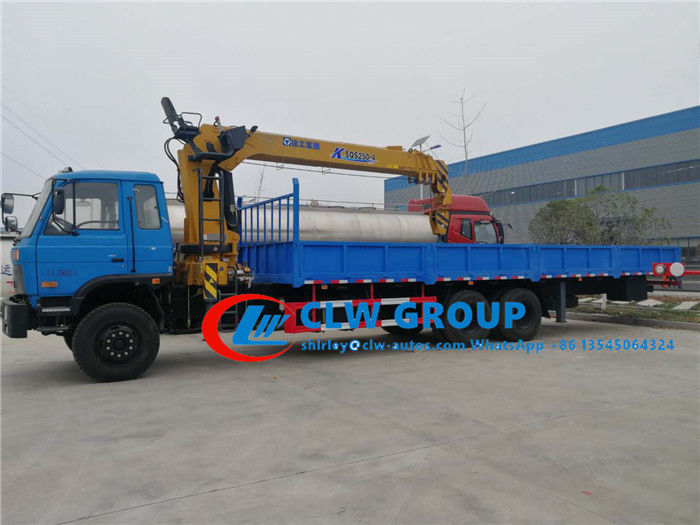

rear view of dongfeng 10tons truck with crane

Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane 1

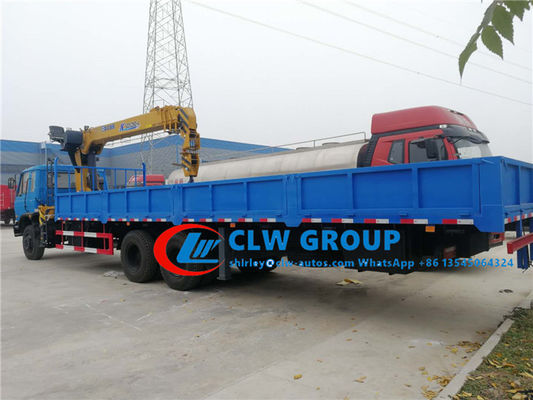

side view of dongfeng 10tons truck with crane

Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane 2

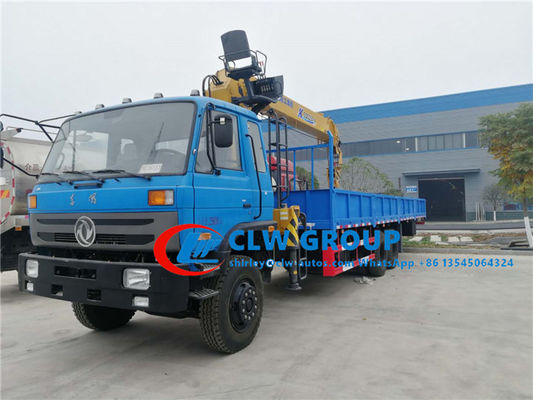

side view of dongfeng 10tons truck with crane

Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane 3



Product Specification of dongfeng truck mounted straight arm crane

Chassis parameters Unit Dongfeng 6*4 210hp Truck with Crane
Vehicle size (mm) 10200×2500×3120
A/D angle   30/14
Total mass (Kg) 24600
Curb weight (Kg) 9405
Chassis model DFS1251GLJ5
Wheels 3
Wheelbase mm 4350+1300
Wheel loading kg 6990/18000 (double axles )
Steel spring NO. pc 9/13
Tyre NO. pcs 10+1
Tyre size 10.00-20
Front tread mm 1940
Rear traad mm 1860/1860
Engine B210 33,cummins engine
Engine horsepower HP 210
Engine power KW 155
Engine displacement ML 5900
Engine stanrdard Water cooled,inline,Euro III,
Cylinder pcs 6

· • Crane model:SQ10ZA3

· • Max lifting mass: 10000 kg

· • Maximum lifting moment : 15120 N.m

· • Slewing

· • Swing speed :2r/min

· • 4 sessions

· • Rotary range :+ and -360 °

· • Crane Length :3.9-9.23m

· • H type legs

· • The maximum operating radius :9 m

· • Across from :2-5 m

· • Crane Out speed :5.33/17 m / s

· • Hydraulic system pressure :17.5MPa

· • Fuel tank capacity :110 L

· • From the arm speed :76/13° / s

· • Crane weight: 1900 kg

· • Maximum lifting height :10.5 m





Other types of truck with cranes

Howo 30tons cargo truck with kunckle boom 25tons crane

Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane 4

isuzu 3tons cargo truck with telescopic boom 2tons crane

Dongfeng 6x4 8.5M Fence Truck With 10T Straight Arm XCMG Crane 5





FAQ



Q1: What kinds of  truck mounted crane I can order from your company?

A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied truck mounted crane to any overseas companies?

A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.



Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
