Product Details:
Payment & Shipping Terms:
|
| Truck Brand: | Dongfeng,Howo,FAW,foton,JAC,JMC,ISUZU Truck Mounted Folding Crane | Engine Brand: | Cummins Truck Mounted Folding Crane |
|---|---|---|---|
| Gearbox: | Manual, 8 Forward &1 Reverse | Crane Brand: | SANY,XCMG,CHENGLI Truck Mounted Folding Crane |
| Crane Capacity: | 3.2tons,4tons,5tons,6.3ton,8ton Truck Mounted Folding Crane | Tire: | 9.00R20,9R22.5 Truck Mounted Folding Crane |
| Crane Boom Type: | Straight Crane,knuckle Crane Truck Mounted Folding Crane | ||
| High Light: | Dongfeng Truck Mounted Boom Crane,5T Truck Mounted Boom Crane,Dongfeng Truck Mounted Mobile Crane |
||

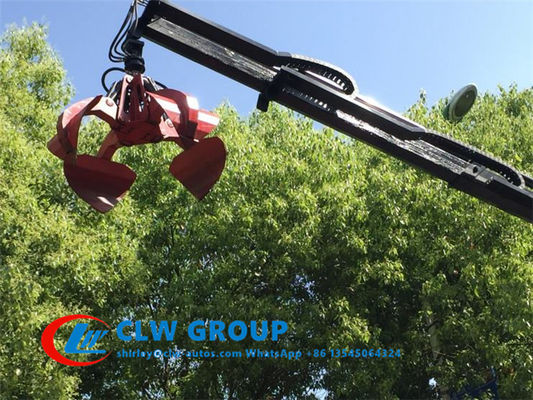

Pictures of truck mounted 5tons folding crane
Equipments available for truck mounted 5tons folding crane
operation of truck mounted folding crane
Enough stock folding cranes for your choice
Product Specification of truck mounted 5tons folding crane
| Model | DONGFENG 4*2 Truck with 5 tons crane | ||
| Drive type | 4*2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 9000×2470×3650 | |
| Wheel base (mm) | 4700 | ||
| Track front/rear mm | 1240/2555 | ||
| F/R Axle-Load | 5900/9900 kg, | ||
| Approach/departure angle | 32/16 | ||
| Weight in KGS | Curb Weight | 8570 kg | |
| GVW | 16000 kg | ||
| Max. driving speed(km/h) | 85 | ||
| Engine | Brand | CUMMINS ENGINE | |
| Model | B190-33 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 190 | ||
| Emission standard | Euro III | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 10R22.5, 7 pc including 1 spare tire | ||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Crane Mounted Parts | |||
| Brand | XCMG brand,SQ5SK2Q | ||
| Working Platform | 360°turning(left or right), H-shape legs 360° | ||
| Cargo Box | 5400*2350*550mm | ||
| Material | Q235 Carbon steel | ||
| Extendable boom section | 3-section | ||
| Boom Type | Telescopic type | ||
| Lifting Max. Weight | 5000kg | ||
| Lifting Max. Height | 11m | ||
| Equipment |
Using the H type support leg,Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability. |
||
| Item of the crane | Unit | Detail |
| Max. Lifting capacity | kg | 16000 |
| Max lifting moment | T.M | 40 |
| Recommend power | kw | 37 |
| Max. Oil flow of hydraulic system | L/min | 63 |
| Max. Pressure of Hydraulic system | MPa | 31.5 |
| Oil tank capacity | L | 250 |
| Crane weight | kg | 5000 |
| Installation space | mm | 1500 |
| Rotation angle | ° | 360°All rotation |
truck mounted 5tons straight arm crane
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of truck mounted hydraulic crane I can order from your company?
A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied truck mounted hydraulic crane to any overseas companies?
A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
