10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

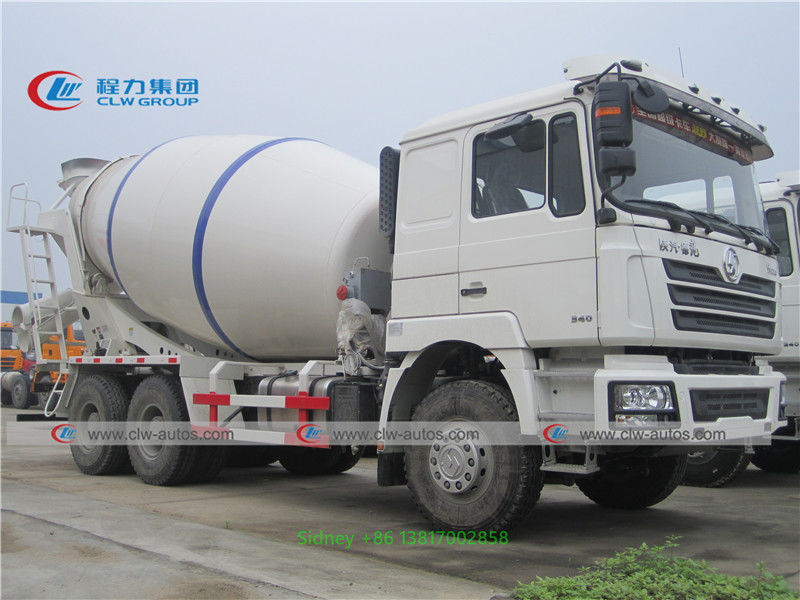

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck
10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck

Large Image :  10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck

Product Details:

Place of Origin: China
Brand Name: CLW / Chengli
Certification: CCC,ISO
Model Number: CLW5325DJ3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD43500 - 52500
Packaging Details: Naked Pack with Wax
Delivery Time: 25-30 Days
Supply Ability: 600Unit Per Month
Detailed Product Description
Brand: Shacman Engine: WP10.340E32+PTO
Gearbox: 6 Forward & 1 Reverse Mixer Capacity: 10CBM, 10000Liter, 12CBM, 12000 Liters
Hydraulic Motor: EATON, PMP, Hydraulic Pump: EATON, PMP, Bonfiglioli,
Reductor: ZF, PMP,Bonfiglioli,Sauer
High Light:

SHACMAN Concrete Mixer Truck

,

10cbm Concrete Mixer Truck

,

6x4 Concrete Pump Truck

10 Wheels 6x4 10cbm Capacity SHACMAN Concrete Mixer Truck cement tansit truck concrete pump truck

Description:

Cement mixer truck made of chassis, mixing cylinder, transmission system, water supply and other components. Mixer hydraulic motor, variable piston pump, reducer, cooler are all imported brands.
Mixer components: two types of chassis, transmission system, hydraulic system, rack, mixing tank, into the material device, water supply system, control system, people ladder and other parts.
Concrete mixer main special accessories including power take, stirring cylinder front and rear support, reducer, hydraulic system, mixing tube, control mechanism, cleaning system.
The working principle: the power of the chassis is removed by the power take-off force, and drive the hydraulic pump of the hydraulic system. The mechanical energy can be converted into hydraulic power to the hydraulic motor. The motor drives the reducer again and drives the mixing system by the reducer.
Cement mixer truck can be customized from 2 m3 to 20 m3, on tricycle, 4x2, 6x6, 6x4, 6x2, 8x4, 8x6 chassis and so on.

Features of Shacman concrete mixer truck

1. Shacman 10 m3 cement mixer truck made of reducer, pump, motor, cement drum, radiator, pipe network system, vacuum gauge, water system, charge and discharge and other components.
2. Truck equipped with imported hydraulic system: Germany ZF, Italy PMP and Germany Rexroth brands reducer; Italy PMP, Germany Rexroth and the United States Sauer brands pump and motor, which make our truck more Stable in operation, lower failure rate and longer service life.
3. Drum is with Q345 high wear-resistant manganese steel, head 8mm, drum body 6mm, and 5mm high-strength steel leaf is wear-resistant manganese steel 520JJ.
4. Our company installs the wear-resistant steel strip on the blade (effectively reduces the drum's wear and prolongs the service life of the drum), the spiral layout of the blade adopts the international leading technology, which can reduce the concrete residue to 2% ~ 3%, and it reached the leading level in the same industry.

Specifications



Condition New condition/Left hand drive/6X4
Chassis Brand Shacman
Gross vehicle weight 25000 kg
Curb weight(kg) 10870 kg
Wheelbase(mm) 3800+1350mm
Dimensions(mm) 9500×2490×3950 mm
Axle Load(kg) 7000/ 18000kg
Wheel track front/rear(mm) 2050/1850
Max. driving speed(km/h) 85 km/h
Brake Air brake
Tire Number 10pcs with one spare tire
Specifications 12.00R20
Fuel tank(L) 400 L
Fuel Consumption 28-33L/100KM
Transmission Faster, 9 Forwards and 1 Reverse with PTO
Cabin It can accommodate three people, With Air conditioner
Engine Model Cummins, ISLe320 30,Water cooled, 4-stoke, direct injection, and intercooled
Horsepower(HP) 195kw/265HP
Emission standard Euro 3/4/5
Upper
Mixer drum Max. Capacity 10CBM
Material High strength steel Q345, 5mm thickness
Vane Material Alloy steel Q345, 4mm thickness
Specification Feeding Speed (m3/min) ≥2.8
Discharging Speed (m3/min) ≥1.2
Discharging Residual rate(%) ≤0.5
Mixing Tank Rotating Speed (RPM) 0-17
Discharging range 180° full range
Driving system Option Option 1 Option 2 Option 3
Hydraulic Pump US EATON 5423 SAUER 75 SUNNY 56
Hydraulic Motor US EATON 5433 SAUER SUNNY 63
Reducer Germany ZF4300 brand Italy Bonfiglioli China local brand
Radiator China local brand
Water supply system Water Tank Capacity (liters) 400
Water supply type Pneumatic water supply
Control system Control Way Connecting Rod Controlling
Structure Features
  1. Mixer Tank and Vane use special anti-resistant material.
  2. Discharging slot and feeding plate are the same anti-resistant material as the tank.
  3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable.
  4. With famous brand driving system. Discharging fast, no residue.
Remarks 1. Color is optional



Product Photos

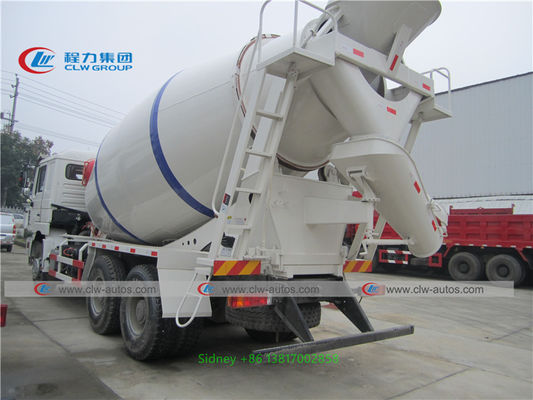

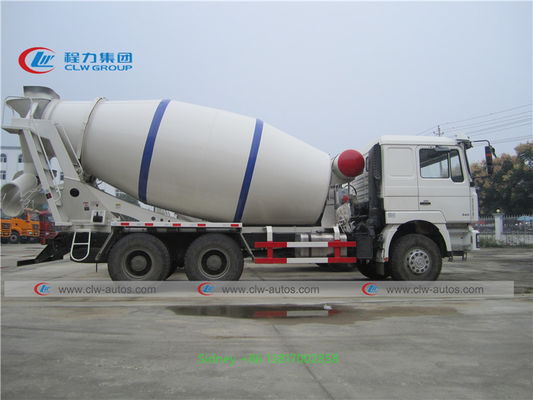

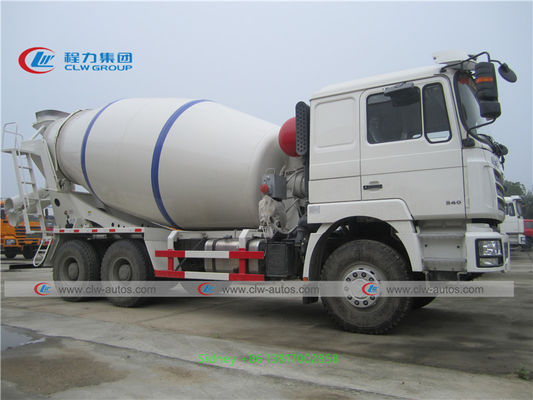

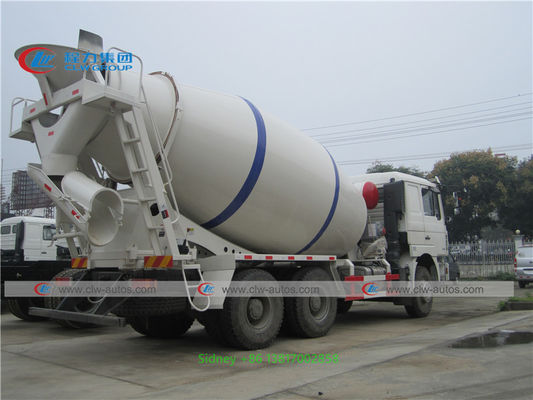

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 010 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 110 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 210 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 3

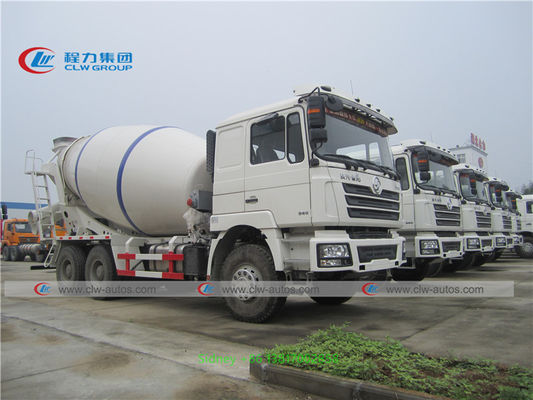

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 4

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 5



Truck Diagram

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 6


Parts


10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 7

Production workshop

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 8

Factory Overview

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 9

Overseas Exhibition and Local Support

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 10

10 Wheels 6x4 10cbm SHACMAN Concrete Mixer Truck 11

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of concrete mixer trucks I can order from your company?


A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied concrete mixer truck to any overseas companies?


A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
