DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank
DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank

Large Image :  DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, ISO, ASME
Model Number: CLW1020

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Naked package
Delivery Time: 30-35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Units/Month
Detailed Product Description
Tank Purpose: Storing Liquid Propane/Ammonia/Butane Gas For Gas Tank Material: Q345r, 16mndr, Q370r, SA516gr70, SA517, Etc.
Overall Size (L X W X H): 5260*1620*2210 (mm) Tank Diameter: DN1600mm, Etc.
Tank Thickness: Shell 10mm, Head 10mm. Tank Volume Options: 5-200cbm; Usually 50m3 60m3 80m3 100m3 120m3
Tank Capacity Options: 2ton-100ton; Usually 25ton, 30ton, 40ton, 50ton Design Pressure: 1.71MPa/17.1bar, 1.77MPa/17.7bar, 1.61MPa/16.1bar
Design Temperature: -20degree~50degree Corrosion Allowance: 1 Mm
Delivery Time: 30 Working Days Color And Logo: As Customer Request
Life Time: 20 Years
High Light:

Carbon Steel Q345R LPG Storage Tank

,

10CBM LPG Storage Tank

,

DN1600mm LPG Gas Storage Tank

High Quality LPG Storage Tanks 10 000 up to 200 000 Liters for Sale







Product Description


LPG storage tanks are specialized products for the storage of liquefied petroleum gas, belonging to special equipment. The material includes Q345R & Q370R, and AS-ME standard material SA516M & SA517M. The shape is cylindrical with 2 end plates. Usually, the Shell is always thicker than the end plate according to the volume of the tank. Liquefied petroleum gas is a flammable and explosive medium, so the storage tank of this medium should be strictly required during installation and use. Operators must comply with operating specifications. The production flow includes computer controlled cutting, computer controlled rolling, submerged arc welding, assembly, nondestructive testing, heat treatment, hydraulic test pressure, blasting, and paint. Perfect raw material with certificates.



Product Specification

Specification of 10CBM LPG Tank
Volume of Tank 10CBM/10,000Liters
Filling Weight 3990 kg
Tank Weight 2950 kg
Thickness of Shell (mm) 10 mm
Thickness ofHead (mm) 10 mm
Tank Diameter (mm) 1600 mm
External Dimensions (mm) (length x width x height) 5260 x1620 x 2210 mm
Material of Tank and Main Pressure Parts Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 17.7Bar
Corrosion Allowance 1 mm
Medium Density 420~590 kg/ cbm
Color & Logo Customised for you requests
Main accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,
Pressure gauge, Temperature Gauge.
List Of Safety Accessories
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-80 Stop Valve DN80 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-100 Safety Valve DN80 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 40ºC~60ºC

Reference Photos

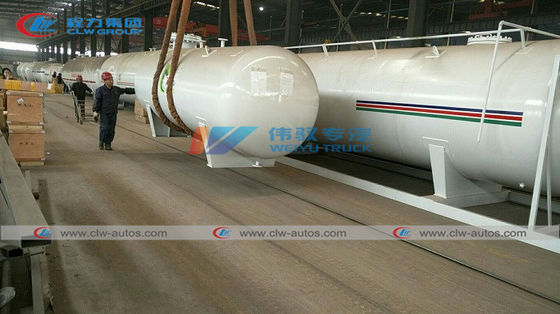

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank 0

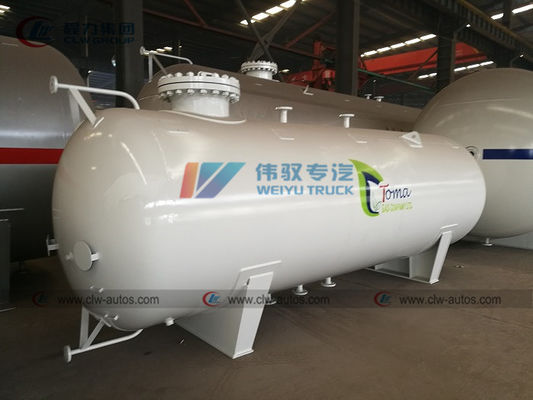

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank 1

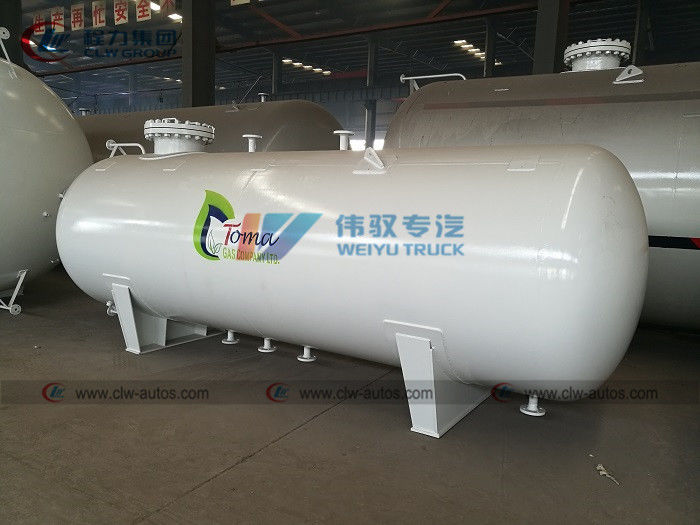

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank 2

We supply customized drawing for every storage tank

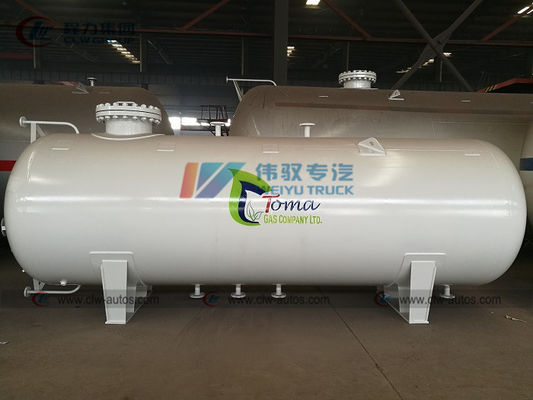

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank 3
Nozzle data
Characters Size Pressure(MPa) Connect Junction surface Purpose
a DN50 25 HG20592-WN RF Drain outlet
b DN50 25 HG20592-WN RF Liquid phase outlet
c1-2 DN50 25 HG20592-WN RF Gaseous phase balanced outlet
d DN50 25 HG20592-WN RF Liquid inlet
e M33*2     Screw-thread Thermometer connection
f1-2 DN25 25 HG20592-WN RF Lever gauge connection
g M20*1.5     Screw-thread Pressure Gage
h DN100 25 HG20592-WN RF Safety valve connection
i DN50 25 HG20592-WN RF Emptying mouth
j DN450 25 HG20592-WN FM Manhole



Main Structure Diagram

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank 4


We supply package solution for lpg station building as follows

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank 5



Production Process

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank 6

DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank 7



Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.




FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.


Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank


Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Contact Details
HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD

Contact Person: Ms. Flora

Tel: +8613971508969

Send your inquiry directly to us (0 / 3000)
