Dongfeng 145 10CBM Water Bowser Truck For Road Flushing

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 145 10CBM Water Bowser Truck For Road Flushing

Dongfeng 145 10CBM Water Bowser Truck For Road Flushing
Dongfeng 145 10CBM Water Bowser Truck For Road Flushing Dongfeng 145 10CBM Water Bowser Truck For Road Flushing Dongfeng 145 10CBM Water Bowser Truck For Road Flushing Dongfeng 145 10CBM Water Bowser Truck For Road Flushing Dongfeng 145 10CBM Water Bowser Truck For Road Flushing Dongfeng 145 10CBM Water Bowser Truck For Road Flushing

Large Image :  Dongfeng 145 10CBM Water Bowser Truck For Road Flushing

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW5079GD3

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD18925-29852
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 20-30 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Material: Q235 Carbon Steel Thickness: 4 Mm
Fuel: Diesel Driving Type: 4*2, Left/right Hand Driving
Pump: China Famous Brand/International Brand Suction Height: 7 Meters
Water Canon Range: 30 Meters Sprinkling Width: 14 Meters
Operating Video: Yes Use Manual: Yes
Front Spray And Rear Spray: Yes Warranty: One Year
LOGO: As Per Customer's Request
High Light:

10CBM Water Bowser Truck

,

Dongfeng 145 Water Bowser Truck

,

Dongfeng 145 Water Sprinkler Truck

Factory directly supply Dongfeng 145 model 10CBM water bowser water tank truck Cheap price



Watering truck, is also called as the sprinkler, and multi-function green watering truck.

It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment.

From another point, while being urgent, the sprinkler is also used as the fire fighting truck.

The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.

This kind of the watering truck could be one most important kind in all environmental trucks.


Product Description

Water bowser truck is suitable for washing all kinds of roads, trees, green belts, lawns, roads, factories and mines, and high-altitude buildings. It has the functions of water spraying, dust pressing, high and low spraying, pesticide spraying, guardrail washing, etc. It also has the functions of water transportation, drainage, and emergency fire fighting.

1. The truck can be equipped with advanced facilities such as medicine tray, medicine pump, anti-corrosion and rust prevention in the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :30 meters
5. Reliable and high quality water pump


Specifications of dongfeng 145 4X2 10tons/10cbm water bowser truck



Condition New condition/Left hand drive/4x2
Chassis Brand Dongfeng
Curb weight(kg) 5495 kg
Gross weight(kg) 12495 kg
Wheelbase(mm) 3950 mm
Dimensions(mm) 7400*2480*3000 mm
Front Loading Capacity (Ton) 4750
Rear Loading Capacity (Ton) 7745
Max. driving speed(km/h) 0 km/h
Clutch Reinforced diaphragm clutch
Brakes Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 9.00R20
Transmission Manual type, 6 Forwards and 1 reverse
Cabin Single row seat, Tiltable. It can accommodate two people. With air conditioner.
Engine Brand CUMMINS
Fuel type Diesel
Power(kw) 125 kw
Horsepower(HP) 170 HP
Cylinder number 4
Emission standard Euro 3
Upper
Water tank Capacity(cbm/tons) 10
Tank Dimension(mm) 4200*200*1500
Tank material Q235 carbon steel
Thickness(mm) 4
Water pump China local brand
Suction Height 7 meters
Function 1, Front Side Rear Sprinkling width≥ 14m
2, Water cannon range≥ 28m
Remarks 1. AM/FM radio
2. 2pcs water hose.
3. Color is optional

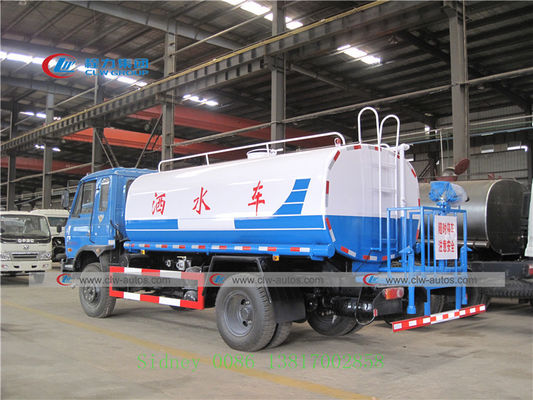

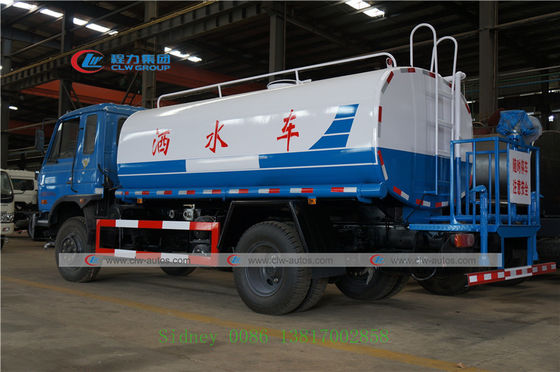

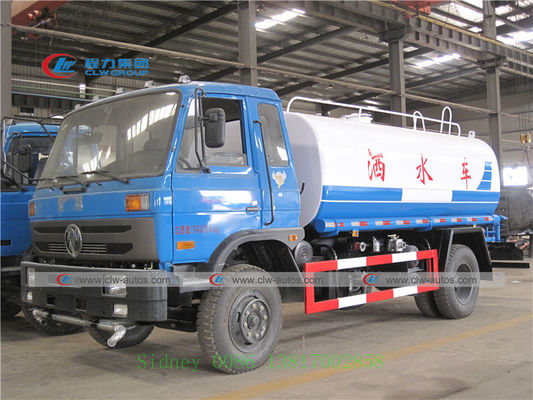

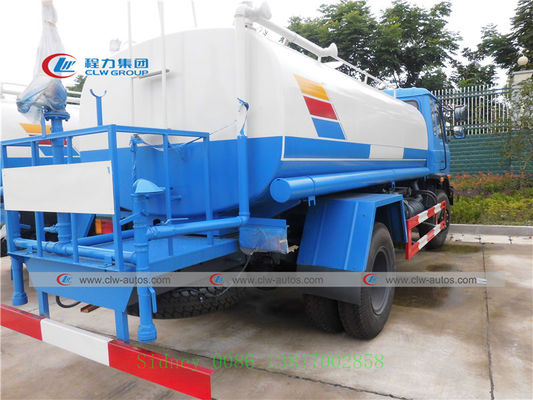

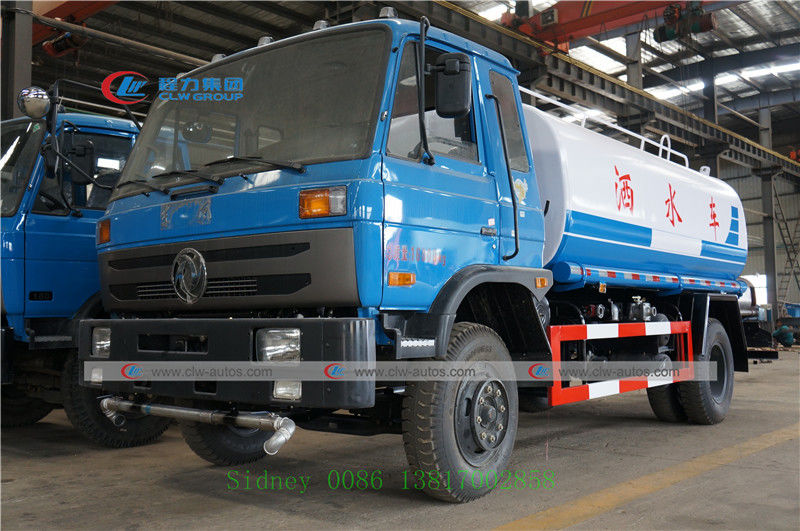

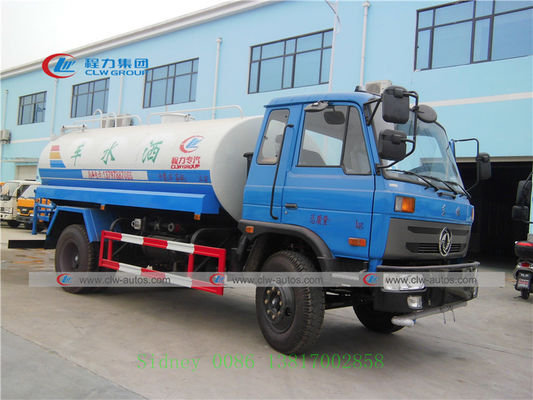

Reference photos for dongfeng water bowser truck

Dongfeng 145 10CBM Water Bowser Truck For Road Flushing 0Dongfeng 145 10CBM Water Bowser Truck For Road Flushing 1Dongfeng 145 10CBM Water Bowser Truck For Road Flushing 2Dongfeng 145 10CBM Water Bowser Truck For Road Flushing 3

Water Truck Diagram

Dongfeng 145 10CBM Water Bowser Truck For Road Flushing 4
Working Show
Dongfeng 145 10CBM Water Bowser Truck For Road Flushing 5

Truck Details
Dongfeng 145 10CBM Water Bowser Truck For Road Flushing 6
Dongfeng 145 10CBM Water Bowser Truck For Road Flushing 7



Water bowser truck production line:



Dongfeng 145 10CBM Water Bowser Truck For Road Flushing 8



After-Sale Service :



We will shoot detailed operation videos for customers on how to use the sprinkler and the precautions for car maintenance. The truck is equipped with some basic wearing parts, which is convenient for later use and replacement. We Provide a one-year warranty period, and provide factory-price accessories for life (the freight is paid by the customer).
