Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane

Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane
Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane

Large Image :  Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: CCC, ISO, BV, SGS
Model Number: CLW5076BPS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked Packed with Wax
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Chassis Brand: ISUZU, Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, Etc. Driving Model: LHD,Left-hand Drive
Engine Brand: Isuzu, 300HP Gearbox: 9Forwards & 2Reverse
Crane Brand: SANY Palfinger, XCMG, CLW, Etc. Crane Capacity: 5tons, 6.3tons, 8tons, 10tons, 12tons, Etc.
Crane Boom Type: Straight Boom Crane Boom Type: 3-Arm Telescopic Boom
Cargo Material: Q235 Carbon Steel Cargo Thickness: Side 2mm, Bottom 3mm
Logo And Painting: As Per Customer's Requirements Delivery Time: 30 Working Days
Warranty: 1 Year
High Light:

6X4 Truck Mounted Telescopic Crane

,

Isuzu Truck Mounted Telescopic Crane

,

Isuzu Truck Mounted Knuckle Boom Crane

Hot Sale Isuzu 6*4 Truck Mounted with 10 Tons Straight Telescopic or Knuckle Arm Crane






Product Description

1. Truck mounted crane(also called Truck with Crane, Truck Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
2. Truck mounted crane can be divided into various types as follows:
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Truck mounted crane;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Truck mounted crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons 50tons 60tons 80tons; 100tons 120tons 150tons Truck mounted crane;
4) According to crane type,there are telescopic and knuckle Truck mounted crane.



Feature
- Crane: Palfinger Brand
- Landing leg: Hydraulic control, top quality, easy for operation.
- Storage box: High quality carbon steel Q235
- Truck chassis: China famous brand


Product Specification

Condition New condition/Left hand drive/6X4
Chassis Brand ISUZU
Curb weight(kg) 8590 kg
Wheelbase(mm) 4600+1350 mm
Dimensions(mm) 10200*2500*3850 mm
Overhang (front/rear) (mm) 1500/2250 mm
Approach/Departure angle(°) 14/12
Axle Load(kg) 9000/13000/13000 kg
Max. driving speed(km/h) 80 km/h
Clutch Reinforced diaphragm clutch
Brakes Hydraulic oil brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Number 6pcs with one spare tire
Specifications 11.00R20
Transmission 9 Forwards and 2 Reverses
Cabin It can accommodate three people, With Air conditioner
Engine Brand ISUZU
Displacement(ml) 7800
Power(kw)/Horsepower/(HP) 300 HP
Emission standard Euro V
Crane Boom Type Straight type
Material Carbon Steel
Brand Palfinger
Max. Lifting Weight(tons) 10 tons
Extendable boom section 4
Working Platform 360°turning(left or right), H-shape legs 360°



Reference Photos

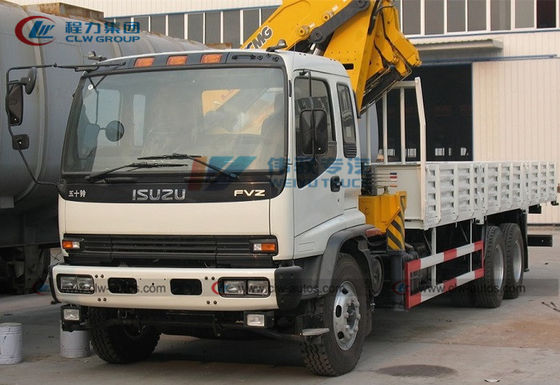

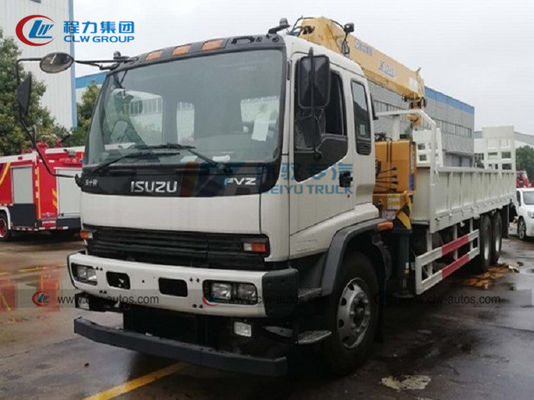

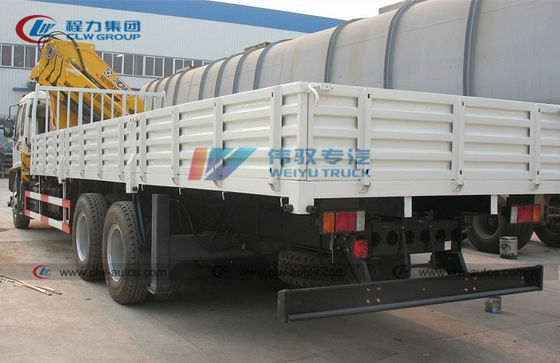

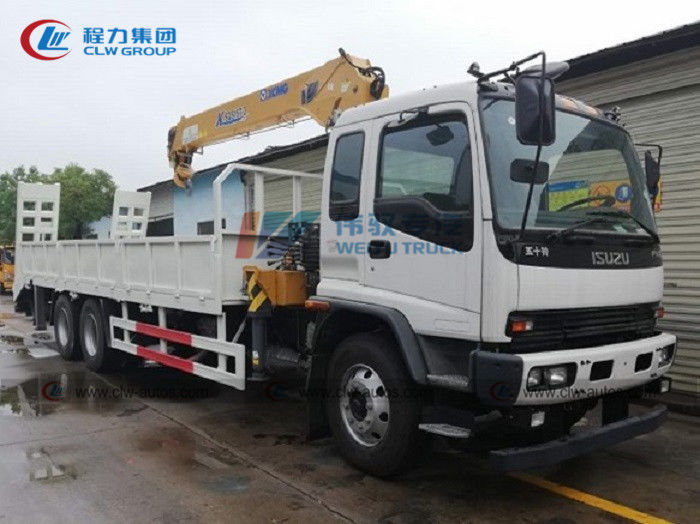

Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane 0

Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane 1



We supply package solution for crane trucks, and provide lots of crane brands for your choice

Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane 2



Working Situation
Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane 3
 Left Hand Drive Isuzu 6X4 Truck Mounted Telescopic Crane 4


Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
