Product Details:
Payment & Shipping Terms:
|
| Box Material: | Carbon Steel Q235B | Truck Brand: | Dongfeng |
|---|---|---|---|
| Truck Engine: | Cummins | Gearbox: | Fast 8Forward & 1 Reverse |
| Tire: | 10.00-20, 10.00R20, 11.00-20, 11.00R20 | Axle: | 5Ton Front Axle & 10Ton Rear Axle |
| High Light: | 16cbm Garbage Compactor Truck,Dongfeng Tianjin DFAC Garbage Compactor Truck,14cbm Compressed Garbage Truck |
||
1. Dongfeng Tianjin Chassis: Cummins Engine 190HP, Fast Gearbox 8Forward & 1 Reverse,
2. Heavy Duty Garbage Bin with different size options: 4000L to 18000L (4CBM to 18CBM)
2. Hydraulic Control Loading & Unloading System
3. Leakage Proof Devise to contain Sewage Water Inside
4. Automatic Key Control & Hydraulic Handle Control
5. Best Choice for Garbage Transporation Inside City.
Specifications
| Items | Parameter | ||
| Compression Tank Parameter | Tank Capacity | 14-16CBM | |
| Tank Material | Carbon Steel Q235 (Q345 for optional) | ||
| Tank Shape |
Curved Shape Tank (Square shape for optional) |
||
| Overall dimension (mm) | Length | 8470 | |
| Width | 2490 | ||
| Height | 3250 | ||
| Tank Thickness | Side | 5mm | |
| Floor | 5mm | ||
| Chassis | Chassis Brand | DongFeng | |
| Drive Mode | 4x2 | ||
| Tire type | 10.00-20 tire | ||
| Tire No. | 6+1 units | ||
| Max speed | 90 km/h | ||
| Cab |
1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player |
||
| Engine | Power | 133 kw / 180hp | |
| Fuel type | diesel | ||
| Emission Standard | Euro 2 & Euro 3 | ||
| Gearbox | Control type | Manual | |
| Gear | 9 forward & 1 reverse | ||

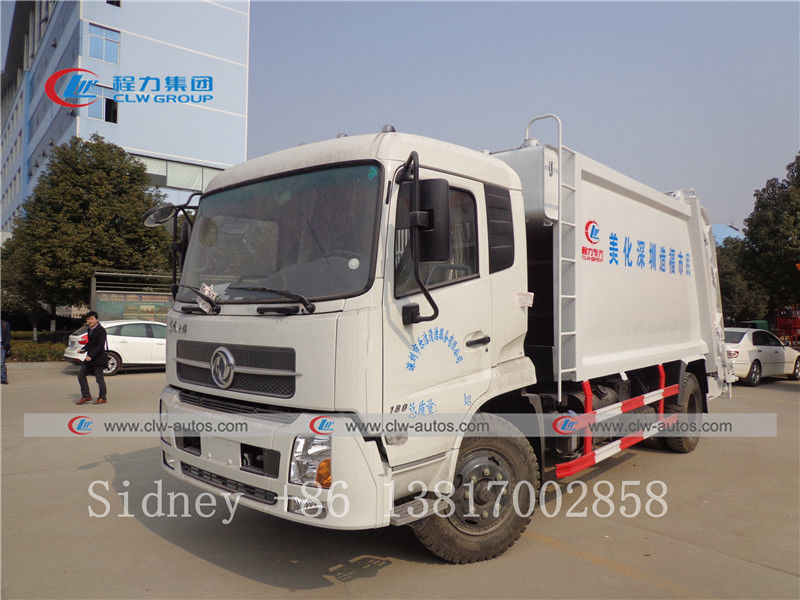

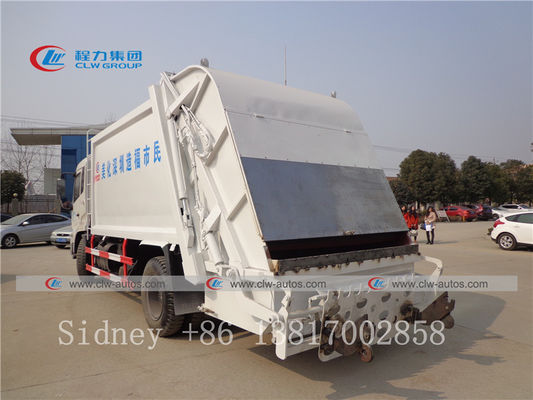

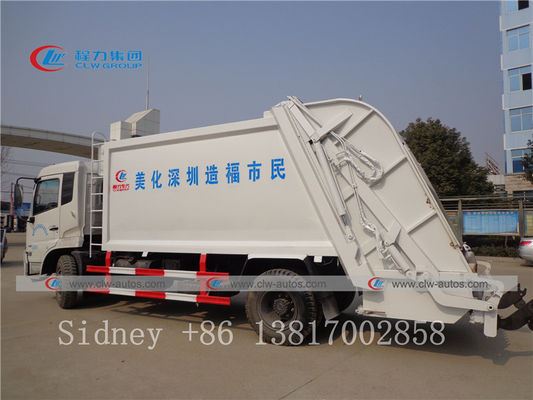

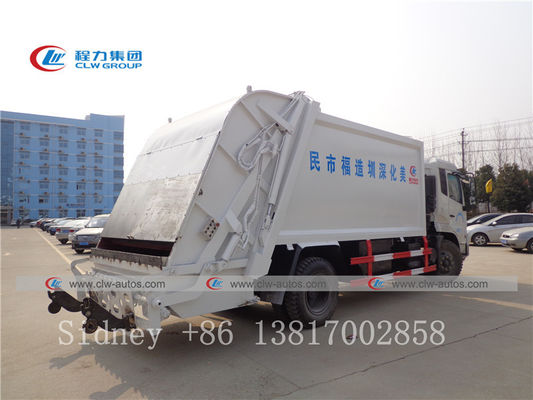

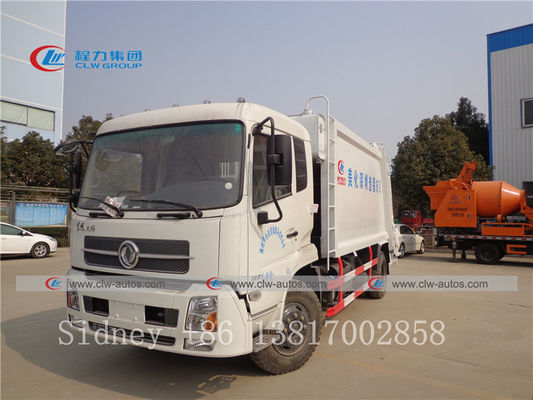

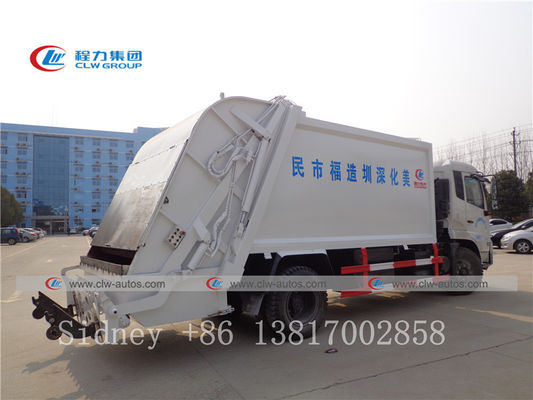

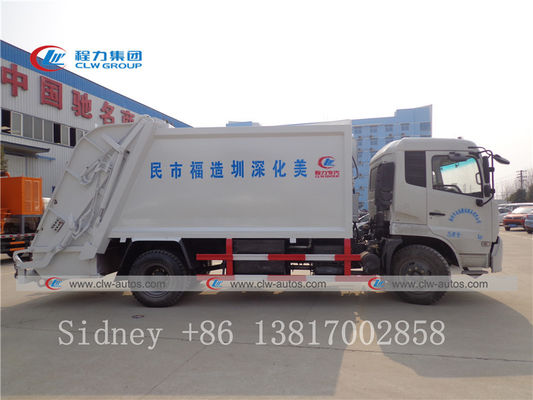

Product Photos
Truck diagram
Main parts
Factory overview
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
