Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck

Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck
Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck

Large Image :  Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck

Product Details:

Place of Origin: China
Brand Name: CLW / Chengli
Certification: CCC,ISO,
Model Number: CLW51K4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Naked Pack with Wax
Delivery Time: 20-30 Days
Supply Ability: 500Unit Per Month
Detailed Product Description
Box Material: Carbon Steel Q235B Truck Brand: Dongfeng
Truck Engine: Cummins Gearbox: Fast 8Forward & 1 Reverse
Tire: 10.00-20, 10.00R20, 11.00-20, 11.00R20 Axle: 5Ton Front Axle & 10Ton Rear Axle
High Light:

Dongfeng Tianjin Compression Garbage Truck

,

12cbm Compression Garbage Truck

,

14cbm Garbage Compactor Truck

Dongfeng Tianjin 4X2 12cbm 14cbm Garbage Compactor Truck Compression Garbage Truck



Description


1. Dongfeng Tianjin Chassis: Cummins Engine 190HP, Fast Gearbox 8Forward & 1 Reverse,

2. Heavy Duty Garbage Bin with different size options: 4000L to 18000L (4CBM to 18CBM)
2. Hydraulic Control Loading & Unloading System
3. Leakage Proof Devise to contain Sewage Water Inside
4. Automatic Key Control & Hydraulic Handle Control
5. Best Choice for Garbage Transporation Inside City.



Specifications

Product Name Garbage Compactor Truck
Chassis No. EQ1168
Driving Type 4*2
Gross Weight 15800kg
Related Loading Mass 10,000kg
Curb Weight 9500kg
Air condition Chassis original
Dimension 8710×2500×3300(mm)
Wheelbase 4700(mm)
Rear Axle Loading Capacity 5800kg
Front Axle Loading Capacity 10000kg
Approach angle 23°
Departure angle 14°
Front Suspension 1440mm
Rear Suspension 2770mm
Tire 10.00R20, 6+1 PCS
Max Speed 90(Km/h)
Engine parameters:
Model B190-50
Horse Power 190hp
Displacement 5900cc
Emission Standard Euro 5
Type 4 stroke,4 cylinders, in-line, water cooling
Gear Box
Gear Box Fast brand 8 forward, 1 reverse.
Superstructure Parameter:
Tank Volume 12CBM 14cbm
Tank Shape Arc-shape/Square Optional
Tank Material thickness Bottom:5mm Side:4mm
Tank Material Q345
Compression Ratio ≥2.5
The effective volume of the bucket ≥0.8m³
Loading cycle time ≤40 s
unload garbage time ≤45s
control method Automatic,Manual
Maximum pressure of hydraulic system 20MPa
Control System Siemens PLC
Engine power control Fully automatic control
Tumbler mechanism 240L Garbage bin(Others Optional)

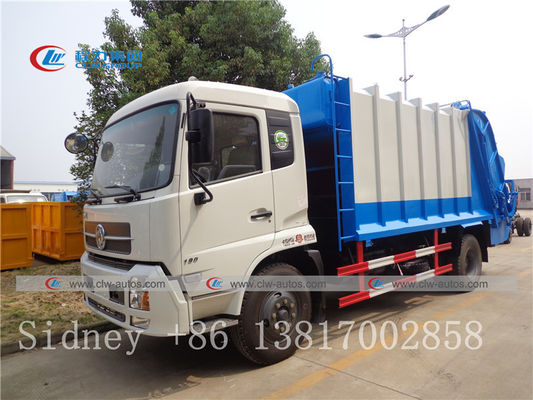

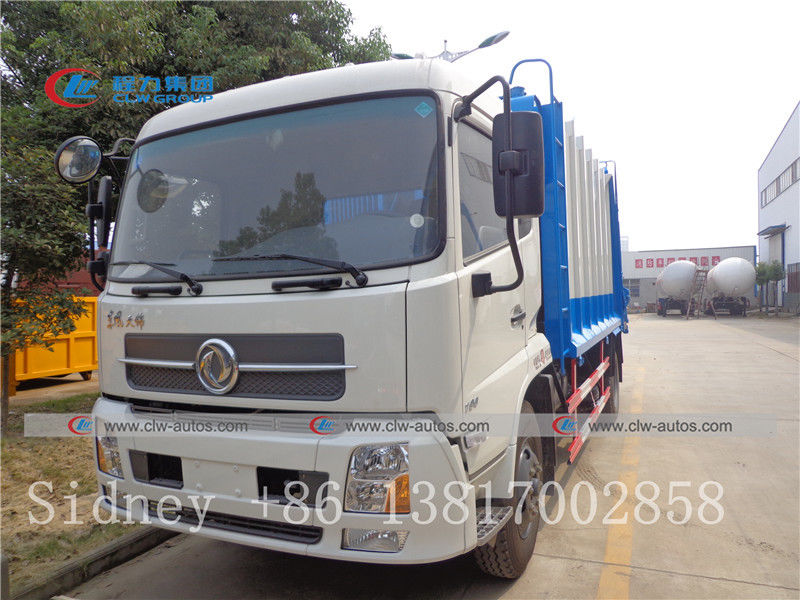

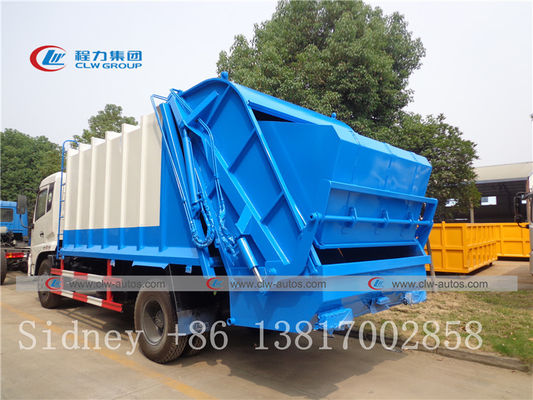

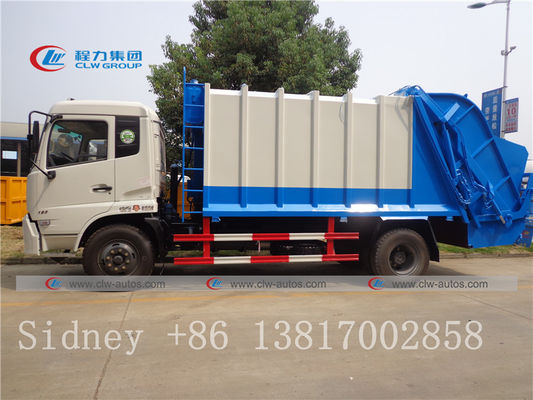

Product Photos

Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck 0Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck 1Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck 2Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck 3

Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck 4



Truck diagram

Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck 5



Main parts



Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck 6

Factory overview

Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck 7

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of garbage trucks I can order from your company?


A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied garbage truck to any overseas companies?


A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
