HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsGarbage Compactor Truck

Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck

Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck
Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck

Large Image :  Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck

Product Details:

Place of Origin: China
Brand Name: CLW / Chengli
Certification: CCC,ISO,BV,SGS
Model Number: CLW5073

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Naked Pack with Wax,bulk ship,ro-ro
Delivery Time: 20-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500Unit Per Month
Detailed Product Description
Box Material: Carbon Steel Q235B Truck Brand: Dongfeng,howo,jac,jmc,faw,forland,foton
Truck Engine: Chaochai Engine 102hp,120hp,170hp,190hp Gearbox: 6 Forward & 1 Reverse
Tire: 7.00R16,6 Pcs With One Spare Steering: Lhd,left Hand Drive,rhd,right Hand Drive
High Light:

Dongfeng Compression Garbage Truck

,

4X2 Compression Garbage Truck

,

5cbm Compressed Garbage Truck

Dongfeng 4X2 6wheels 5cbm Compressed Garbage Truck

Product Description

1. Dongfeng Chassis: Engine 102HP, Fast Gearbox 6Forward & 1 Reverse,

2. Heavy Duty Garbage Bin with different size options: 4000L to 18000L (4CBM to 18CBM)
2. Hydraulic Control Loading & Unloading System
3. Leakage Proof Devise to contain Sewage Water Inside
4. Automatic Key Control & Hydraulic Handle Control
5. Best Choice for Garbage Transporation Inside City.



Specifications



Garbage Box Volume
5CBM
Garbage Box Thickness
4mm side plate, 5mm bottom plate
Garbage Box Material
Carbon steel
Working pressure of hydraulic system
16Mpa
Overall Dimension
6500×2050×2450 (mm)
Gross Vehicle Weight
7360(Kg)
The Tare Weight
5430 (Kg)
The Payload
1930 (Kg)
Wheelbase
3308(mm)
Fuel Type
Diesel
Engine
Chaochai
Engine Model
CY4BK551
Engine Power
75 (kw)
Displacement
3707 (ml)
Emission Standards
Euro 3
Tire Size
7.00R16
Transmission
Fast,8 Speed,Manual
Brake System
Air brake
ABS
Yes
Air Conditioner
Optional

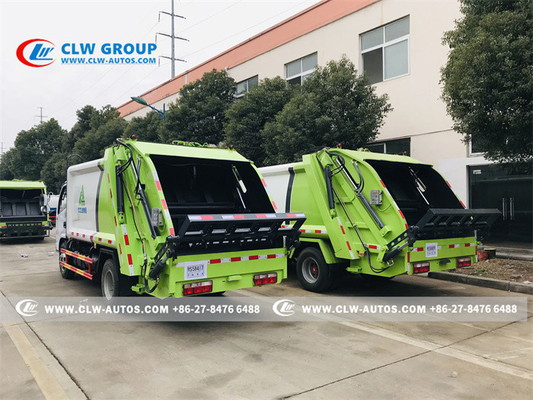

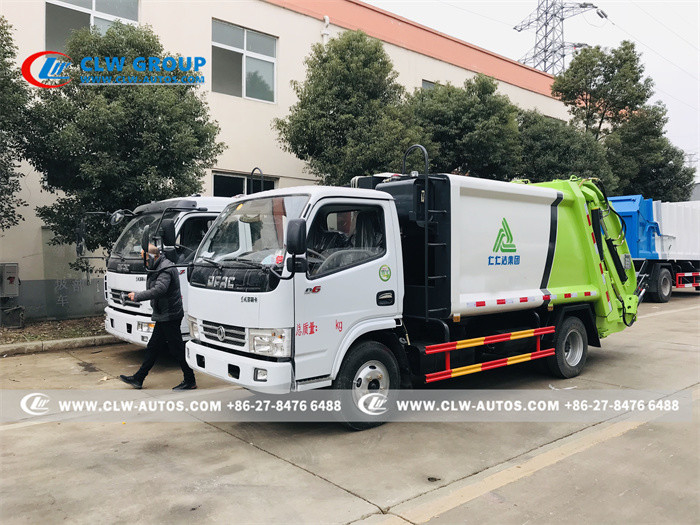

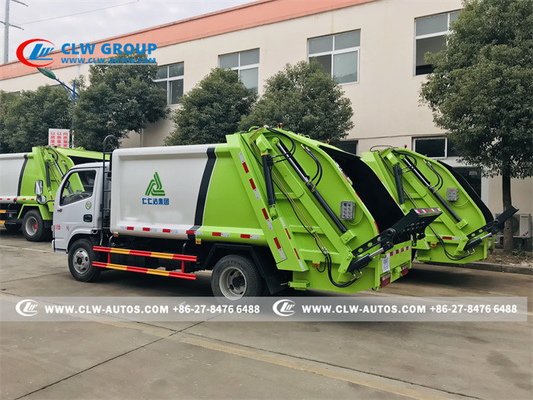

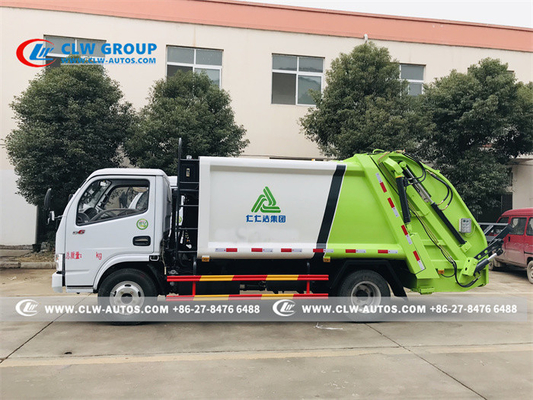

Product Photos

Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck 0Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck 1



Main parts

Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck 2

Truck Diagram

Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck 3



Factory overview

Dongfeng 4X2 6 wheels 5cbm Compression Garbage Truck 4

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of garbage trucks I can order from your company?


A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2: Have you supplied garbage truck to any overseas companies?


A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
