Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Chassis Brand: | Sinotruk Howo, Dongfeng, Foton, FAW, JAC, JMC, ISUZU, Etc. |
|---|---|---|---|
| Engine Brand: | Wd615.69, 336HP | Gearbox: | Fast, 10forwards And 2reverse |
| Crane Brand: | SANY, XCMG, CHENGLI, Etc. | Crane Boom Type: | Straight Telescopic Crane, Knuckle Crane |
| Max. Lifting Load: | 8tons | Boom Type: | Straight 4-Arm Telescopic Boom |
| Cargo Material: | Q235 Carbon Steel | Cargo Thickness: | Side 2mm, Bottom 3mm |
| Feature: | Truck Crane | Application: | Construction,Truck Crane |
| Color: | DEPENDS | Origin: | 100% China |
| Warranty: | 1 Year | ||
| High Light: | 336HP Heavy Duty Truck,HOWO Heavy Duty Truck,6X4 HOWO Truck |
||
Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
| Products Technical Specification | |||||||
| Chassis Brand | Sinotruk-HOWO | ||||||
| Chassis Model | ZZ1257 | ||||||
| Fuel type | Diesel | ||||||
| Emission Standard | Euro 2 | ||||||
| Cabin |
HW76, with A/C, one bunk Left hand Drive |
||||||
| Whole Vehicle main dimensions (mm) |
Overall dimensions (L×W×H) | 10100*2500*3710 | |||||
| Cargo body size | 6000*2300*600 | ||||||
| Wheel base | 4600+1350 | ||||||
| Front overhang | 1500 | ||||||
| Rear overhang | 2650 | ||||||
| Weight data (kg) | G.V.W | 25000 | |||||
| Curb weight (chassis) | 16100 | ||||||
| Max payload | 15000 ~20000kg | ||||||
| Engine | Model | WD615.69 | |||||
| Maximum power | 247kw / 336hp | ||||||
| Number of cylinders | 6 | ||||||
| Displacement (L) | 9.726 | ||||||
| Engine Manufacturer | CNHTC | ||||||
| Gear box | Model | HW19710 | |||||
| Number of gears | 10 forward gears & 2 reverse | ||||||
| Axle | Front / Rear Load capacity (ton) | HF7 / ST16 | |||||
| Suspension | Front / Rear | 10- Leaf spring / 12 leaf spring | |||||
| Brake system | Service brake | Air braking | |||||
| Electric device | Rated voltage | 24V | |||||
| Tyres & Quantity | 12R22.5 & 10+1 | ||||||
| Crane Description | |||||||
| Type | Straight arm crane Telescopic boom | ||||||
| Model | SQ14S | ||||||
| Max Lifting Capacity (kg) | 14000 | ||||||
| Maximum lift height (m) | 17.8 | ||||||
| Max Lifting Moment (t.m) | 35 | ||||||
| Recommend Power (kw) | 32 | ||||||
| Max Oil Flow of Hydraulic System (L/min) | 63 | ||||||
| Max Pressure of Hydraulic System (MPa) | 26 | ||||||
| Oil Tank Capacity (L) | 160 | ||||||
| Rotation Angle (°) | All Rotation | ||||||
| Crane Weight (kg) | 4800 | ||||||
| Installation Space (mm) | 1300 | ||||||
| Working radius (m) | 2.5 | 5 | 8 | 11 | 13.2 | 15.8 | |
| Lifting capacity (kg) | 14000 | 6000 | 3500 | 2300 | 1800 | 1200 | |

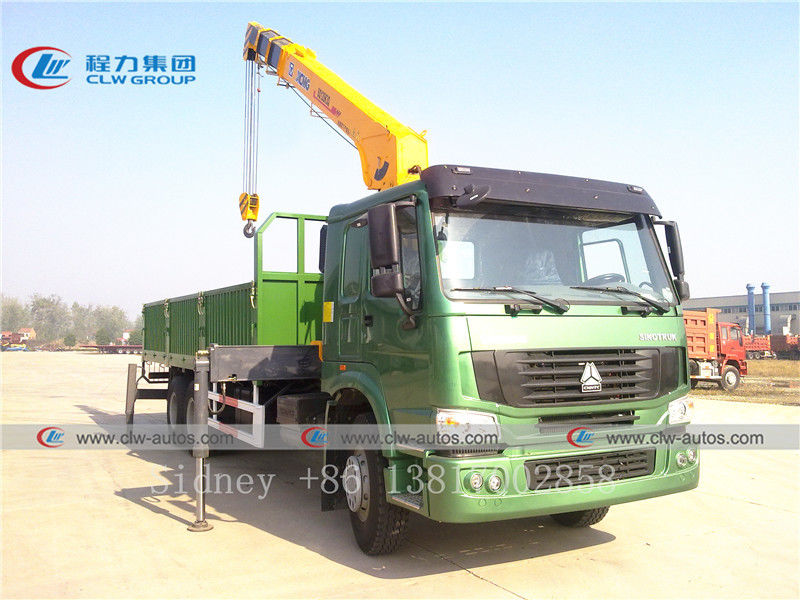

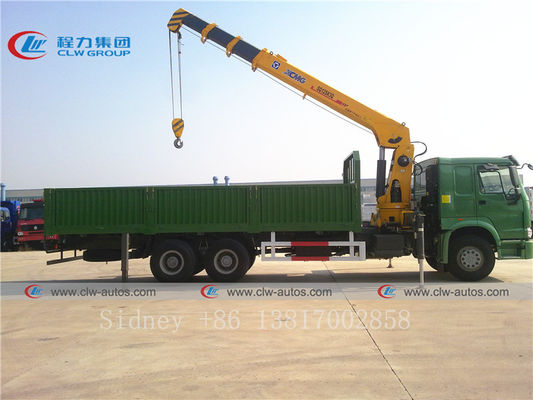

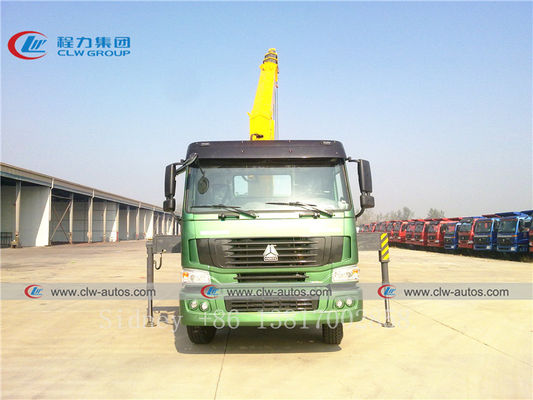

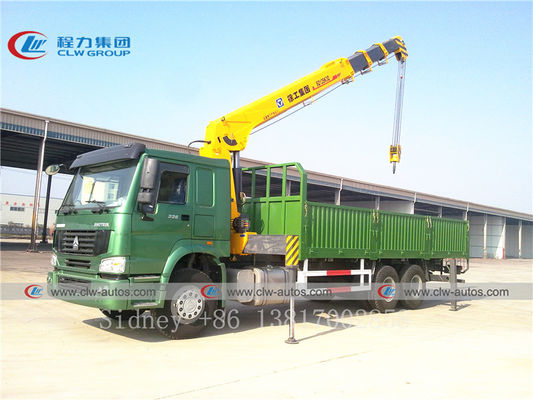

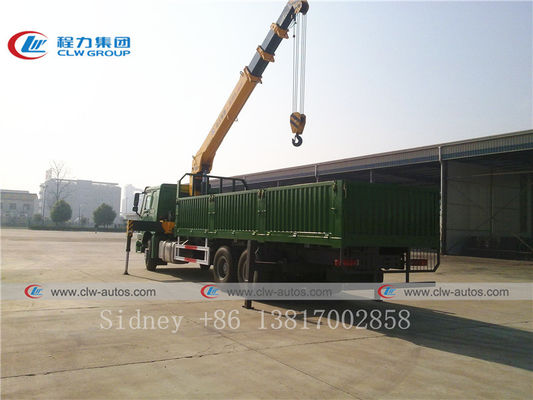

Reference Photos
Crane Details
Working Situation
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
