Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Water Tank, Water Sprinkler Water Bowser Truck |
|---|---|---|---|
| Drive Type: | 4X2 6 WHEELS 6 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 4000 Liters 5000 Liters 4 Tons, 5tons, 4T, 5T | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Function: | Water Delivery Transport, Water Spraying | Equipment: | Front Praying, Rear Side Sprinkler, |
| Engine: | F3.8s3141, FOTON Cummins Brand | Others: | With Water Pump |
| High Light: | 5000L Water Tank Truck,FOTON AUMARK-C33 Water Tank Truck,LHD Water Sprinkler Truck |
||
FOTON AUMARK-C33 4X2 small 5000L 5 tons Water Bowser Water Sprinkler Truck Water Tank Truck for Spraying
Product Description
Water tank truck is produced for transportation and distribution of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes.In order to achieve those different operations, each water tank truck could be equipped with various components to realize different function.
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck: High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
product Specification
| Vehicle model | AUMARK-C33 | |
| Cabin | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875*2030*2230 |
| Wheel base(mm) | 3360 | |
| Weight data | Curb weight(kg) | 2600 |
| Gross vehicle weight(kg) | 6495 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 95 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | Euro- | |
| Displacement(L) | 3.76 | |
| Rated Power(kw/rpm) | 105 | |
| Max torque (N.m/rpm) | 450 | |
| Gearbox | Model | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.2T |
| Rear axle | Type/Mainreducetion ratio | 5.5T/4.11 |
| Suspension | Front suspension/Leaf spring number | 3+1 |
| Rear suspension/Leaf spring number | 6+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Central drum brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(7.00R16) | |
Technical parameters of sprinkler
| tank | volume | 5m³ |
| Dimensions | Sectional shape: oval | |
| Tank material and thickness | Material and thickness of tank body: Q235B carbon steel, 4mm | |
| Wave breaker | Quantity: 1; Material thickness: Q235B carbon steel, thickness 4mm | |
| Manhole cover | Quantity: 1 piece; diameter: 500mm; material; aluminum alloy six-jaw can mouth | |
| Discharge port | 1 self-draining port at the tail of the tank; 1 pressure drain on one side of the tank; 1 fire hydrant interface; | |
| Climb the ladder | Install independent climbing ladder at the end of the tank | |
| Top guard | Install hand guards on both sides of the tank top | |
| Level gauge | The front part of the tank, plexiglass | |
| Tube box | Number: 2; Installation location: 1 each on the left and right sides of the tank Water diversion pipe: each pipe box has a built-in water diversion pipe, the length of the tank body is equal, with stainless steel male and female end joints |
|
| Water pump | model | Hangzhou Weilong 65QZ-40/45N stainless steel self-priming sprinkler pump |
| Limited Date | 40m³/h | |
| lift | 45m | |
| Water absorption depth | 6.5m | |
| Spraying device | control method | manual |
| Spray type | Front flush, side spray, back spray | |
| Sprinkler width | not lower than 14m | |
| Spray gun range | not lower than 28m | |
| Work platform | position | Rear of the tank |

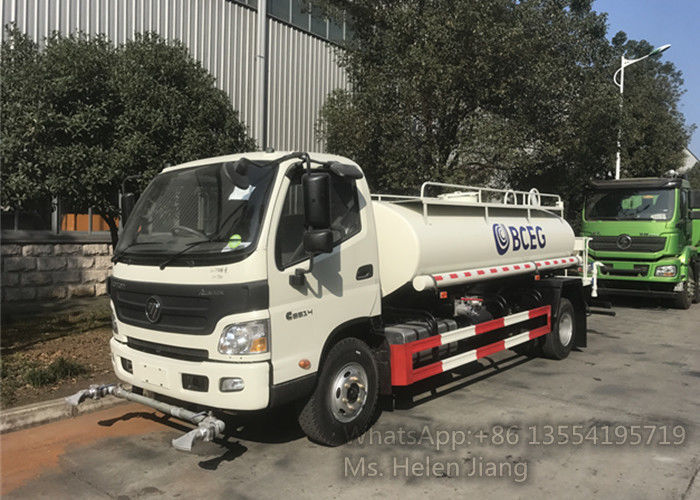

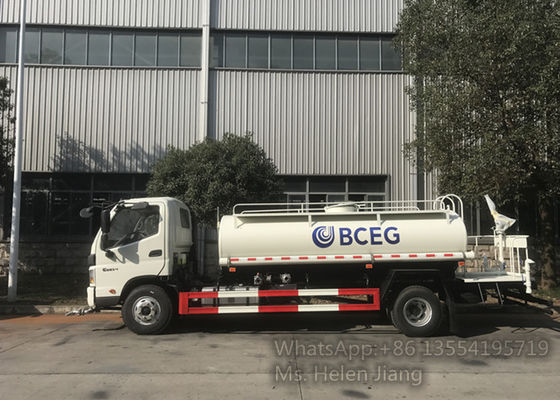

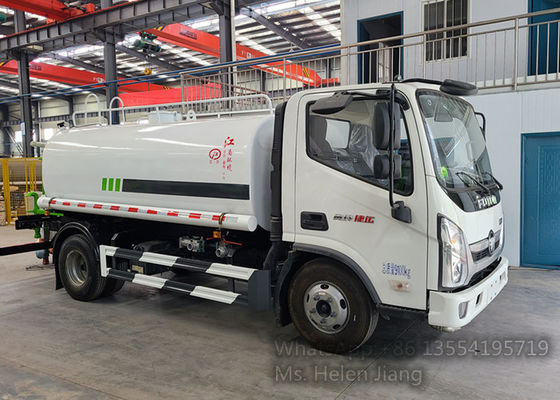

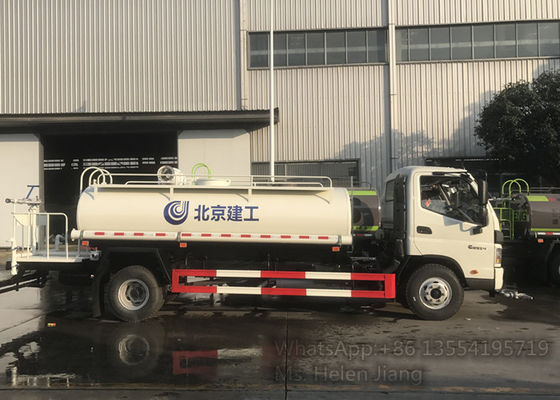

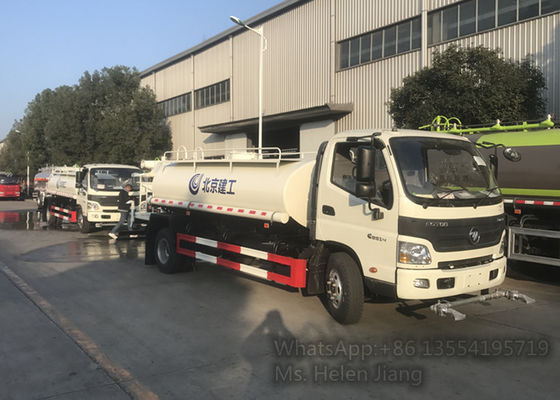

More Pcitures for FOTON AUMARK-C33 4X2 small 5000L 5 tons Water Bowser Water Sprinkler Truck Water Tank Truck for Spraying
Front , Side and Rear spraying for Water Sprinkler Truck:
Different Capacity of Water Tanker:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
FAQ
Q: Can I buy a sample of your product for testing?
A.Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
