Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Water Tank, Water Sprinkler Water Bowser Truck |
|---|---|---|---|
| Drive Type: | 4X2 6 WHEELS 6 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 4000 Liters 5000 Liters 4 Tons, 5tons, 4T, 5T | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Function: | Water Delivery Transport, Water Spraying Washing | Equipment: | Front Praying, Rear Side Sprinkler, |
| Engine: | F3.8s3141, FOTON Cummins Brand | Others: | With Water Pump |
| High Light: | 5MT Water Bowser Truck,4X2 Water Bowser Truck,FOTON AUMARK-S33 Water Sprinkler Truck |
||
China FOTON AUMARK-S33 6 Wheeler 4x2 5tons 5MT 5T 5000L Water Bowser Tanker Water Sprinkler Truck
Product Description
Water tank truck is produced for transportation and distribution of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes.In order to achieve those different operations, each water tank truck could be equipped with various components to realize different function.
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck: High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
product Specification
| Vehicle model | AUMARK-S33 | |
| Cabin | Single row/W2060/left rudder | |
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm | 5890×2105×2400 |
| Wheel base(mm) | 3360 | |
Weight data |
Curb weight(kg) | 3210 |
| Gross vehicle weight(kg) | 8275 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 105 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | EuroⅢ | |
| Displacement(L) | 3.76 | |
| Rated Power(kw/rpm) | 105 | |
| Max torque (N.m/rpm) | 450 | |
| Gearbox | Model | 6S558 |
| Front axle | Type/Mainreducetion ratio | 3.6T |
| Rear axle | Type/Mainreducetion ratio | 6T/5.286 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 8+6 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/(L8.25R1614L) | |
Technical parameters of sprinkler
| tank | volume | 5m³ |
| Dimensions | Sectional shape: oval | |
| Tank material and thickness | Material and thickness of tank body: Q235B carbon steel, 4mm | |
| Wave breaker | Quantity: 1; Material thickness: Q235B carbon steel, thickness 4mm | |
| Manhole cover | Quantity: 1 piece; diameter: 500mm; material; aluminum alloy six-jaw can mouth | |
| Discharge port | 1 self-draining port at the tail of the tank; 1 pressure drain on one side of the tank; 1 fire hydrant interface; | |
| Climb the ladder | Install independent climbing ladder at the end of the tank | |
| Top guard | Install hand guards on both sides of the tank top | |
| Level gauge | The front part of the tank, plexiglass | |
| Tube box |
Number: 2; Installation location: 1 each on the left and right sides of the tank Water diversion pipe: each pipe box has a built-in water diversion pipe, the length of the tank body is equal, with stainless steel male and female end joints |
|
| Water pump | model | Hangzhou Weilong 65QZ-40/45N stainless steel self-priming sprinkler pump |
| Limited Date | 40m³/h | |
| lift | 45m | |
| Water absorption depth | 6.5m | |
| Spraying device | control method | manual |
| Spray type | Front flush, side spray, back spray | |
| Sprinkler width | not lower than 14m | |
| Spray gun range | not lower than 28m | |
| Work platform | position | Rear of the tank |

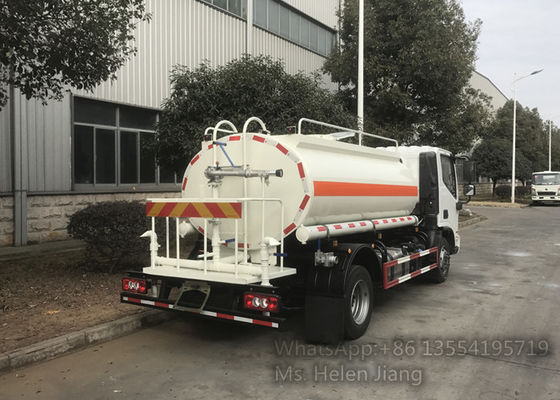

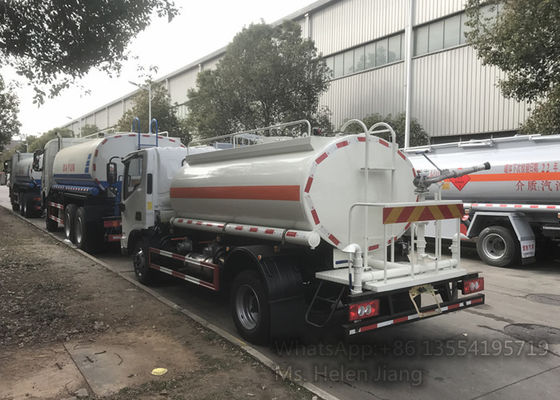

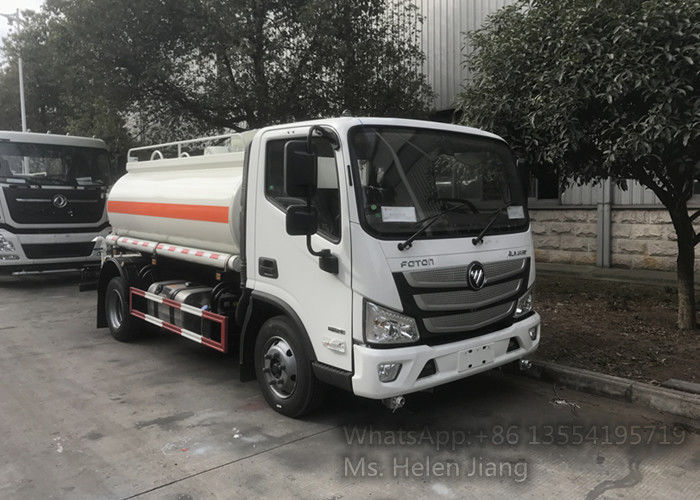

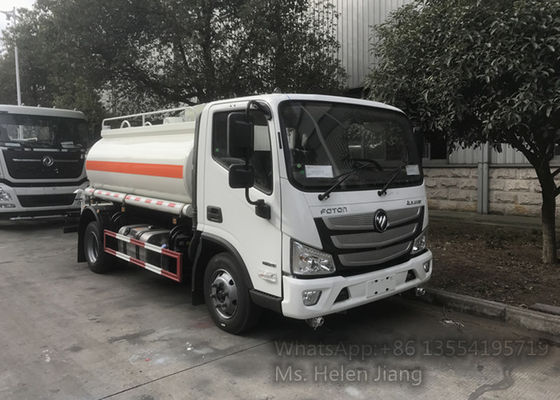

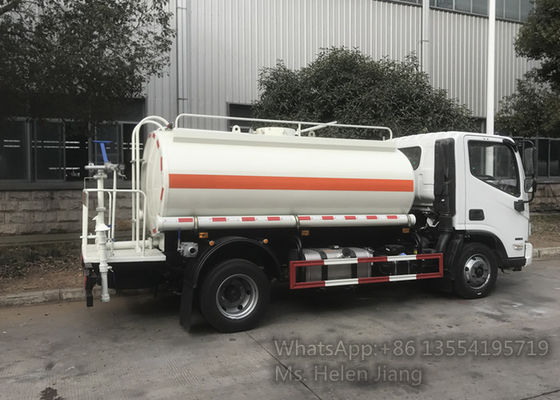

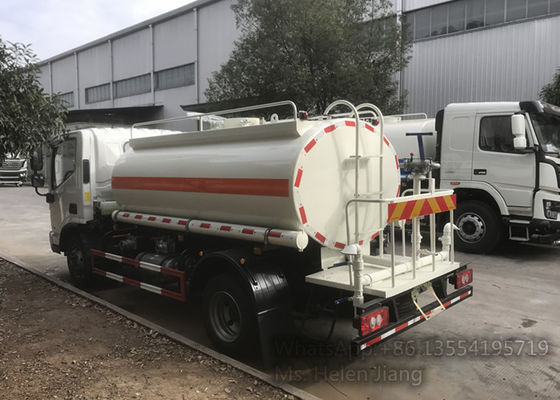

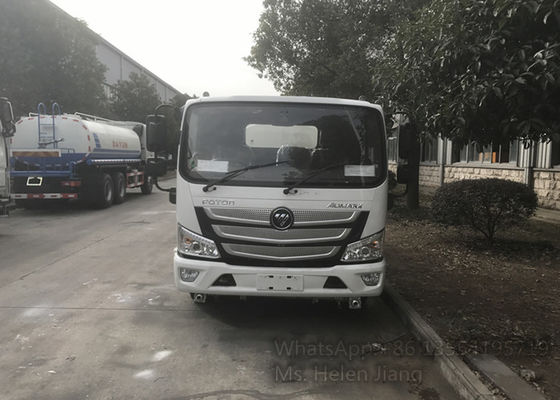

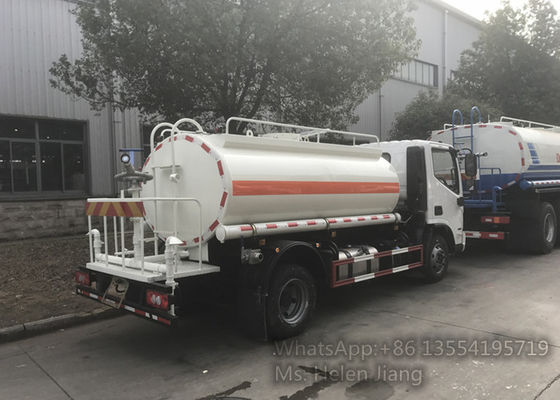

More Pcitures for China FOTON AUMARK-S33 6 Wheeler 4x2 5tons 5MT 5T 5000L Water Bowser Tanker Water Sprinkler Truck

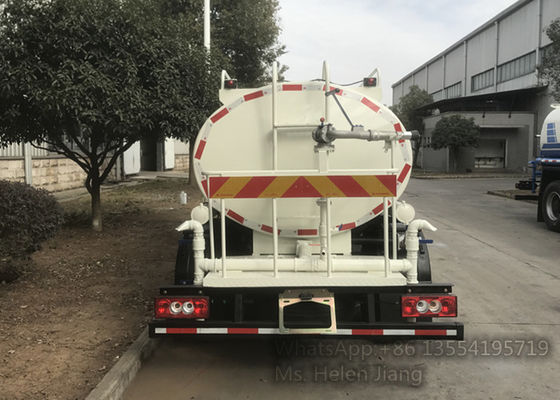

Front , Side and Rear spraying for Water Sprinkler Truck:
Different Capacity of Water Tanker:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
