Product Details:
Payment & Shipping Terms:
|
| Engine: | WD615.47, 371HP, | Drive Type: | 6x4, 10 Wheels, 10 Wheeler |
|---|---|---|---|
| Transmission: | Manual Control, | Drive Model: | Right Hand Drive, Or Left Hand Drive |
| Tank: | With Water Tank And Fire Sprinkling System. | Tank Material: | Carbon Steel, Or Stainless Steel |
| Equipment: | Fire Pump. Fire Brigade, Water Pump | Loading Capacity: | 20tons, 20 Tons, 20MT, 20T |
| Tank Volume: | 20CBM, 20000L, 20000 Liters, 20M3 | Fire Fighting Pump: | Chinese Or International Brand Italy |
| High Light: | 371HP Fire Fighting Truck,20000L Water Tank Fire Fighting Truck,Sinotruk HOWO Firefighter Fire Truck |
||
Sinotruk HOWO 6x4 371HP 20tons 20000Liters Water Sprinkler Tank Fire Fighting Truck for Forest Rescue
Product Description
Fire sprinkler is also known as fire sprinkler, forest fire truck, multi-function fire truck, multi-purpose sprinkler, airport fire sprinkler, street, town and village fire sprinkler function, is a combination of fire truck and sprinkler. The dual-purpose vehicle is between the fire truck and the sprinkler. It has the integrated purpose of fire fighting and sprinkling. Compared with the fire truck, although it lacks the equipment box, it has the same spray range as the fire truck and has the same fire fighting function.
Forest fire trucks are the main firefighting equipment used by forestry, forest farms, forestry fire prevention offices, and forestry firefighting to extinguish fires. They can be divided into forest water tank fire trucks, forest rescue fire trucks, and forest fire fighting tool vehicles.
- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
Features of fire rescue fighter truck:
---- HOWO chassis, perfect performance.
---- Snotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
Product Specification for Sinotruk HOWO 6x4 371HP 20tons 20000Liters Water Sprinkler Tank Fire Fighting Truck for Forest Rescue
| Cabin | HW 76 Standard Cab, Left hand drive, one sleeper. A/C With two bunks, 70° hydraulically tillable to the front as attached photo for ref. (picture just for reference) |
||||
| Vehicle Main Dimensions | (L x W x H)mm | ||||
| Wheel base (mm) | |||||
| Wheel track (front/rear) (mm) | |||||
| Approach/Departure angle(°) | |||||
| Weight in KGS | Tare Weight | ||||
| Loading Capacity | |||||
| Front axles loading capacity | |||||
| Rear axles loading capacity | |||||
| Max. driving speed(km/h) | |||||
| Engine | Brand | ||||
| Model | |||||
| Type | |||||
| Horse Power(HP) | |||||
| Emission standard | |||||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 300L | ||||
| Tire | 12R22.5 radial steel tire 11 Pieces including one spare | ||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||
| Tank | 20000L, carbon steel. Tank thickness:5mm, End plate thickness: 6mm. Equipped with front and rear Sprinkler. Equipped with pump and PTO (Suction lift >6m) Equipped with fire valve, water valve, and filter gauze. Equipped with water cannon. Equipped with fire brigade system, fire gun on top, (Sprinkling width>50m) |
||||
| Paint | Anti-corrosive | ||||

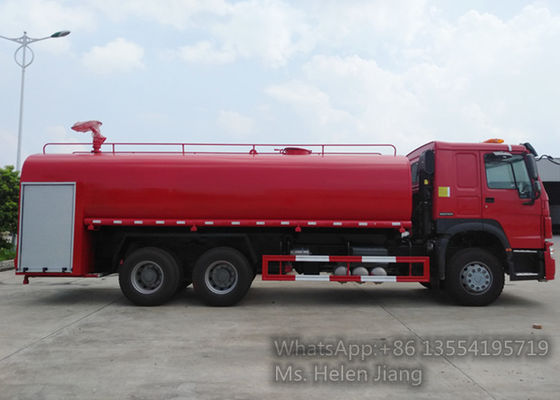

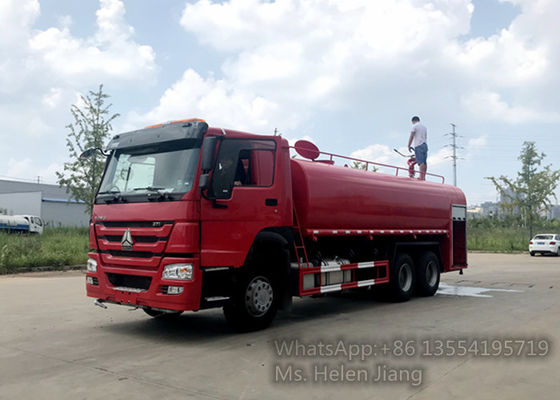

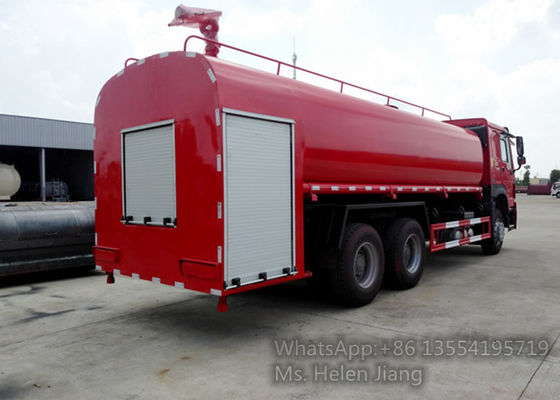

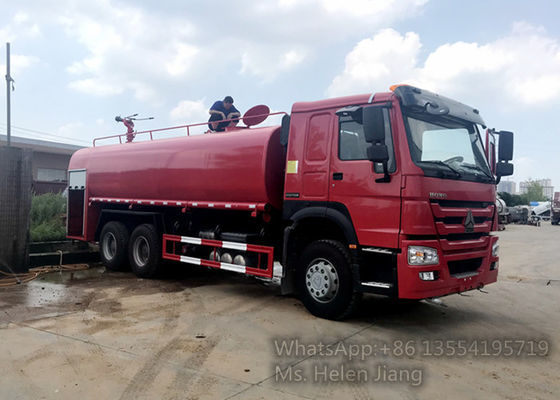

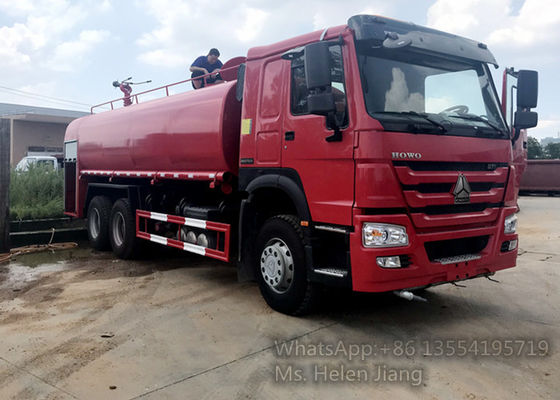

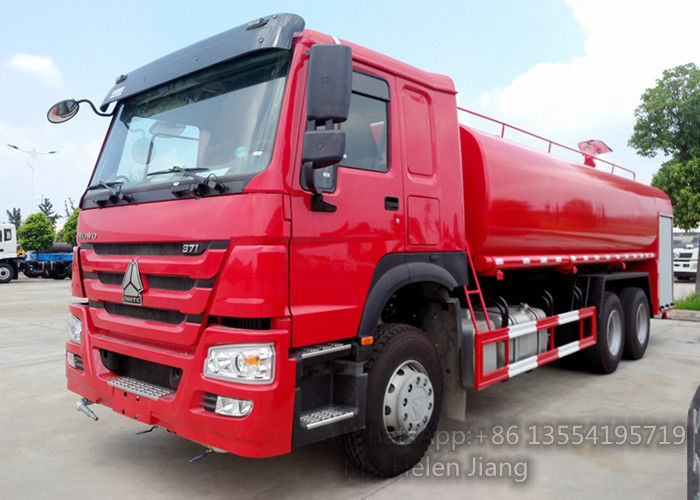

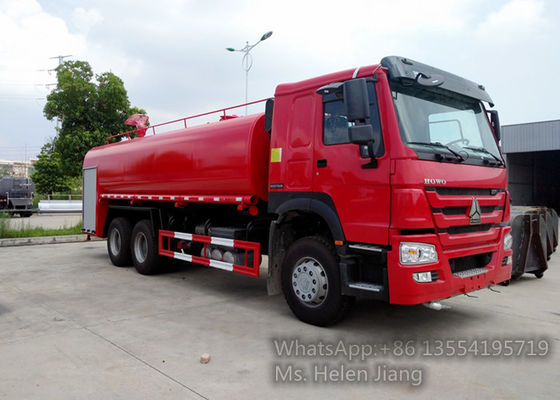

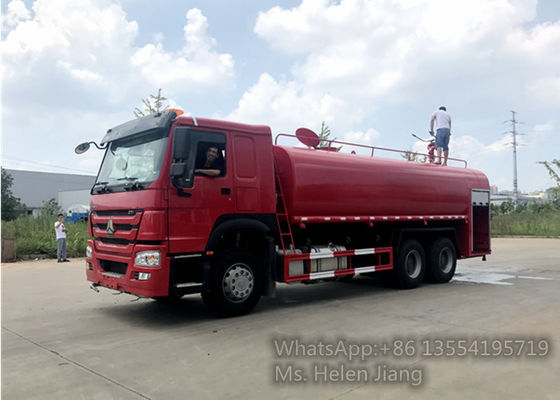

More Pictures for Reference:
Successful Cases:
Delivery for Fire fighting truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
