Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck

Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck
Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck

Large Image :  Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI
Brand Name: CLW
Certification: CCC, ISO9001
Model Number: CLW20210624

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: Negotiated
Packaging Details: Naked or Waxed before delivery
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per Month
Detailed Product Description
Chassis Brand: Dongfeng/Sinotruk HOWO/Foton/Shacman Extinguishing Agents: Water, Foam
Key Parts: Pump And Fire Gun Accessories: Standard Configure
Purpose: Fire Fighting Truck, Emergency Rescue Flow Rate Of Fire Monitor: 60L/S 1.0MPa
Water Pump: Chinese Or International Brand Material: Carbon Steel/Stainless Steel
Fire Fighting Pump: Chinese Or International Brand Fire Fighting Monitor: Chinese Or International Brand
Throw Range: Water 55m, Foam 50m Water Tanker: 6000L, 6CBM, 6M3, 6000 Liters
Foam Tanker: 2000L, 2CBM, 2M3, 2000 Liters On-Site Training: According To Client Request
High Light:

8CBM Fire Fighting Truck

,

266HP Fire Fighting Truck

,

Sinotruk HOWO 4X2 Fire Brigade Truck

 Sinotruk HOWO 4x2 6 wheels wheeler 266HP 8CBM 8000L Fire Fighting Truck with Water and Foam Tanker



Fire fighting truck, which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire Fighting Trucks can be divided into several types:
1-- According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2-- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3-- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4-- According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-- There are also fire rescue truck with special purpose as follows,
-- Foam supply fire truck;
-- Compressed air supply fire fighting truck;
-- Water tower fire truck ;
-- Earthquake rescue fire truck;


Features of fire rescue fighter truck:
---- HOWO chassis, perfect performance.
---- Snotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.



Description Parameters
Overall Dimension 7660×2500×3460
GVW 15560kg
Engine Model WD615.47
Engine Power 273kW
Wheelbase 4500mm
Driving Type 4X2
Max.speed 90km/h
Emission Standard 9726 ml
Passengers 1+1+4
Fire pump rated flow 60L/s@1.0Mpa;
water monitor rated flow 48-64L/s
Water monitor range Water range≥60m,foam≥55m
Approach angle ≥16°
Departure angle ≥23°
Water tank capacity 5CBM
Foam tank capacity 1CBM
Fire pump model CB10/60
Pressure gauge 0-1.6 Mpa, 0-2.5 MPa
Water monitor PL48



More Pictures for Reference:

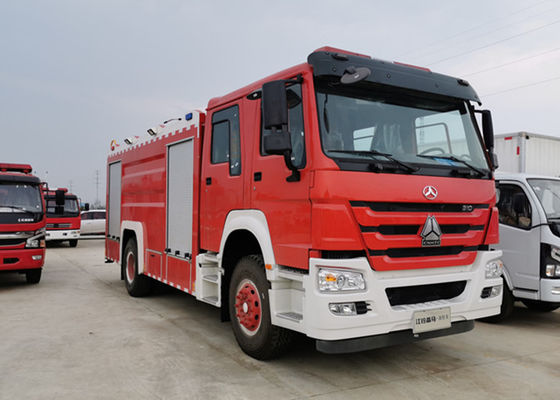

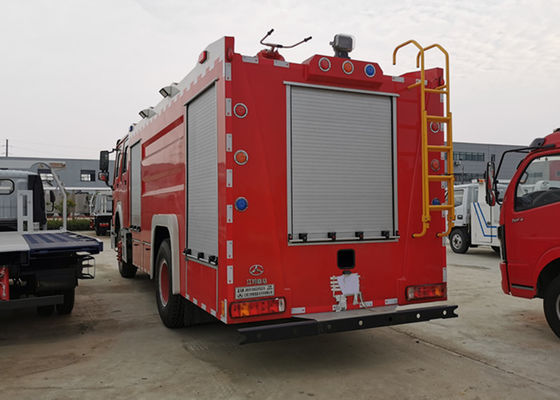

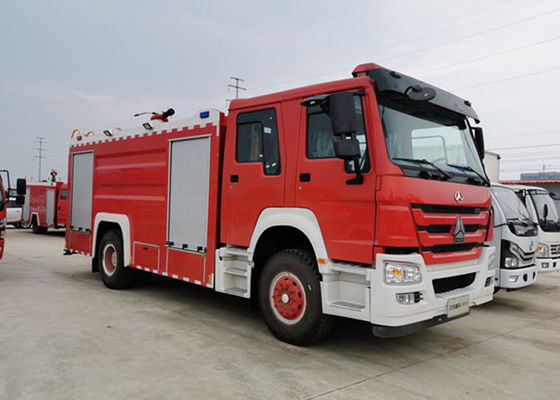

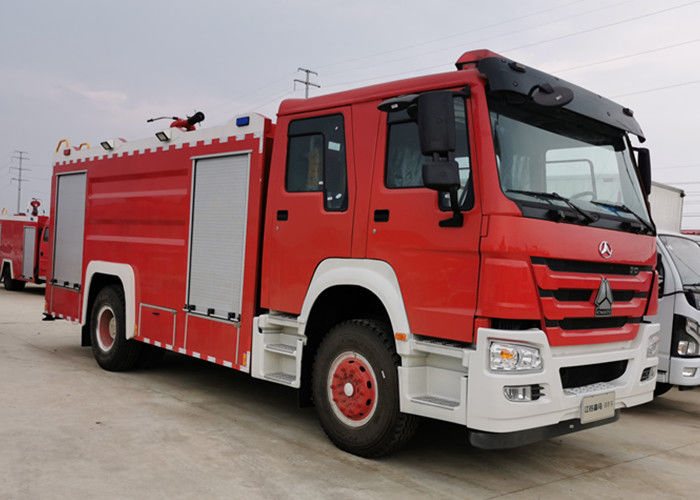

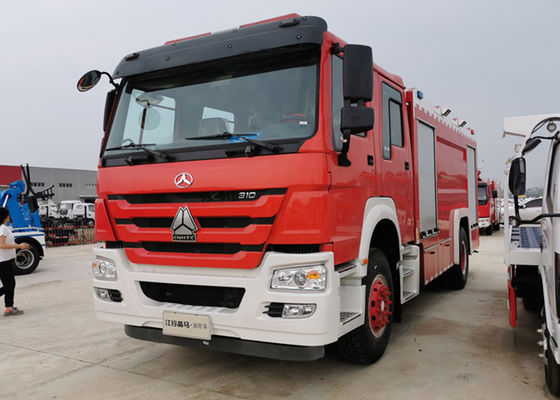

Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck 0Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck 1Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck 2Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck 3

Equipment come with fire trucks

Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck 4Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck 5

Production Procedure

Sinotruk HOWO 4X2 6 Wheels 266HP 8CBM Fire Fighting Truck 6

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
