Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng/Sinotruk HOWO/Foton/Shacman | Extinguishing Agents: | Water, Foam |
|---|---|---|---|
| Key Parts: | Pump And Fire Gun | Accessories: | Standard Configure |
| Purpose: | Fire Fighting Truck, Emergency Rescue | Flow Rate Of Fire Monitor: | 60L/S 1.0MPa |
| Water Pump: | Chinese Or International Brand | Material: | Carbon Steel/Stainless Steel |
| Fire Fighting Pump: | Chinese Or International Brand | Fire Fighting Monitor: | Chinese Or International Brand |
| Throw Range: | Water 55m, Foam 50m | Water Tanker: | 4000L, 4CBM, 4M3, 4000 Liters |
| Foam Tanker: | 1000L, 1CBM, 1M3, 1000 Liters | Capacity: | 5000L, 5tons, 5 Tons, 5T |
| High Light: | 5000L Firefighting Truck,6 Wheeler Firefighting Truck,Dongfeng Fire Rescue Truck |
||
Dongfeng 4x2 6 wheels wheeler 5CBM 5000L Fire Fighting Truck with Water and Foam Tanker
Fire fighting truck, which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Trucks can be divided into several types:
1-- According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2-- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3-- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4-- According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-- There are also fire rescue truck with special purpose as follows,
-- Compressed air supply fire fighting truck;
-- Water tower fire truck ;
-- Earthquake rescue fire truck;

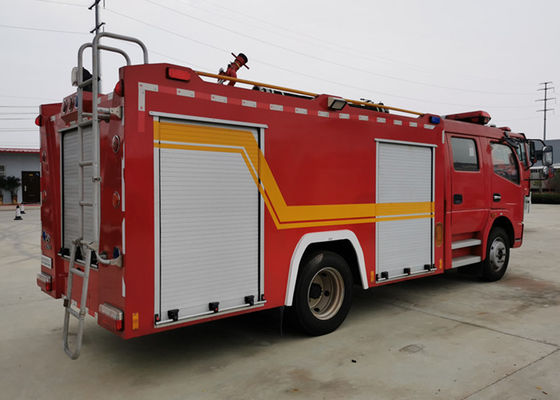

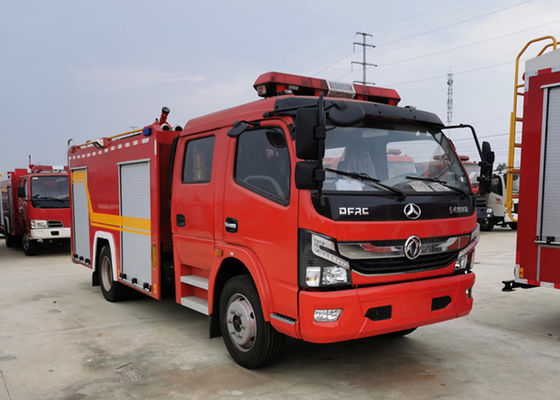

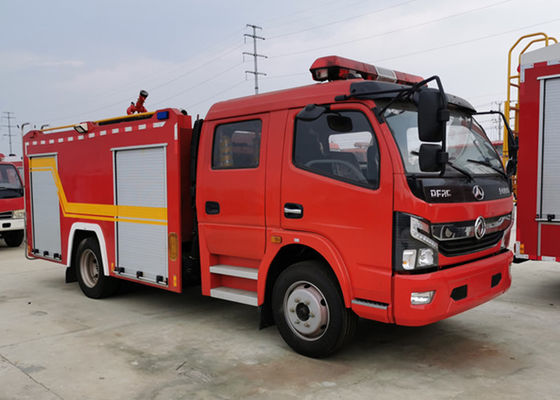

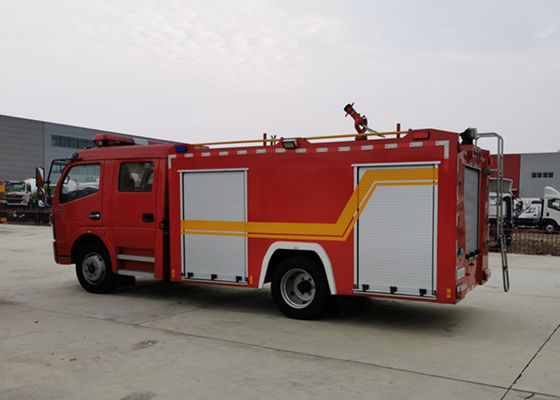

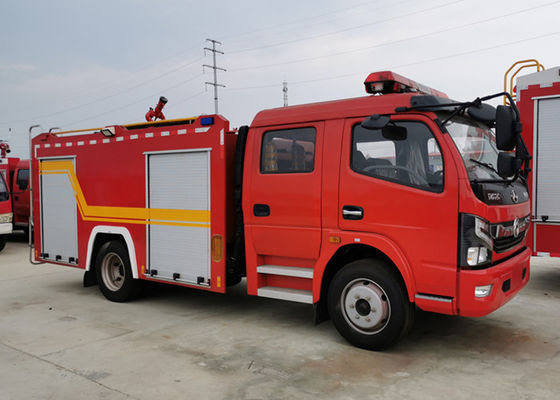

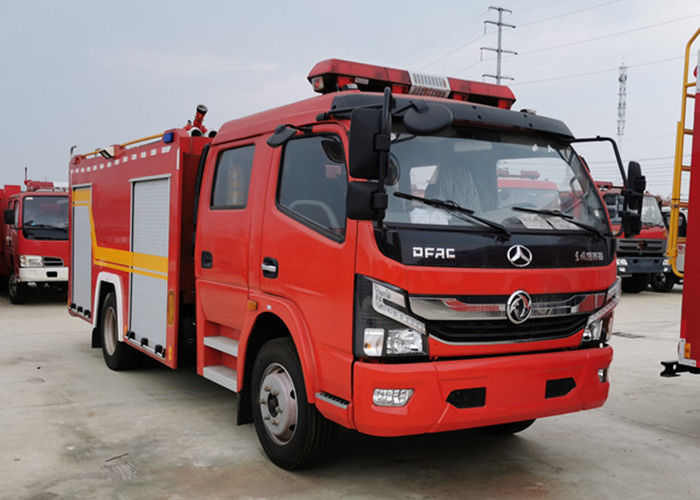

Dongfeng 4x2 6 wheels wheeler 5000L Rescue Emergency Fire Engine Fighting Truck
Features of fire rescue fighter truck:
---- Dongfeng chassis, perfect performance.
---- Snotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
| Name | Water tank fire fighting truck | |
| Chassis Model/ manufacturer | EQ1070 / DONGFENG | |
| Cab | cabin With Air-condition, | |
| Overall dimension (L*W*H) | 7500*2400*3000mm | |
| Total mass(KG) | 9400Kg | |
| Rated payload | 3050Kg | |
| Kerb weight | 5900Kg | |
| Front /rear suspension | 1180/1840mm | |
| Fuel type | Diesel oil | |
| Engine | Model | CY4102E3C, Water cooling |
| manufacturer | Dongfeng chaoyang diesel engine Co., LTD | |
| Rated power | 91kw/ 120HP | |
| Displacement | 3856ml | |
| Fuel Type | Diesel oil | |
| Driving type | 4*2 | |
| Wheel base | 3800mm | |
| Front/ rear tread | 1831/1640mm | |
| Type & size of tyre | 7.50-16 | |
| The number of tyre | 6+1(spare tire) | |
| Max speed | 95Km/h | |
| Technical parameter of fire fighting body | ||
| Liquid tanker | Volume | 3000L water tank |
| Material | high quality carbon steel plate, anti-rust treatment inside. |
|
| Fire fighting pump | Model | CB10/30 |
| Pressure: | 1.0Mpa | |
| Flux: | 30L/s | |
| Suction depth | :≥ 7m | |
| Suction time | ≤35s | |
| Fire fighting nozzle | Model: | SP30 |
| Range | ≥ 55m | |
| Horizontal rotation angle | 360 º | |
| Color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck | |
| Spare parts list | ||
| No. | Name | units |
| 1 | Electric siren | 1 |
| 2 | Emergency lamp | 1 |
| 3 | Fire axe | 1 |
| 4 | Fire hook | 1 |
| 5 | Fireman ladder | 1 |
| 6 | Medium pressure water gun | 1 |
| 7 | Fire fighting Nozzle | 1 |
| 8 | Fire hoses(B/S System) (65mm, 20m) | 4 |
| 9 | Suction pipe(100mm-2m) | 4 |
| 10 | Water Filter(100mm) and guide rope | 4 |
| 11 | Suction pipe wrench(100mm) | 4 |
| 12 | Fire hydrant wrench | 2 |
More Pictures for Reference:
Equipment come with fire trucks
Production Procedure
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
