Product Details:
Payment & Shipping Terms:
|
| Brand: | Foton | Fuel: | Diesel |
|---|---|---|---|
| Volum: | 5cbm,6cbm,7cbm,8cbm,9cbm,10cbm | Hydraulic Motor: | PMP,Eaton, Sauer Or Chinese Brand |
| Hydraulic Pump: | Zf, Bonfiglioli Or Chinese Brand | Reductor: | ZF, PMP,Bonfiglioli,Sauer |
| Drum Thickness: | 6mm With High Tensile Steel | Blade Thickness: | 5mm With Alloy Steel Q345 |
| Water Tank Volume: | 200L | Filling Rate: | 95% |
| Warranty: | 1 Year | User Manual: | Yes |
| LOGO: | As Customer's Request | ||
| High Light: | 5.5cbm Cement Mixer Truck,Foton Rowor Cement Mixer Truck,Q345 Steel Tank Concrete Mixer Truck |
||
Three main part of the concrete mixer truck:
1. German Rexroth Hydraulic pump, Motor, ZF reducer;
2. America Eton Hydraulic pump, Motor ;
3. Italy Bonfiglioli Reducer;
4. Italy PMP Hydraulic pump, Motor and reducer.
5. China brand pump, motor and reducer
The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.
Product Description
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Product Specification
| CHASSIS | Brand | FOTON | |
| Chassis Model (Model No. ) | BJ1162 | ||
| Drive Mode | 4х2 | ||
| Tire | 10.00-20 | ||
| Brake | Air brake | ||
| Engine | Model | YC6J180-33 | |
| Horsepower (Hp) | 180 | ||
| Dispalcement(ml)/Power(kw) | 6494/132 | ||
| Emission | Euro VI | ||
| Main Parameter | Overall dimension (MM) | L*W*H(mm) | 7385× 2490× 3650 |
| wheelbase(mm) | 3900 | ||
| Axles No. | 2 | ||
| Weight (KG) | Gross weight | 15965 | |
| Payload weight | 7900 | ||
| Kerb weight | 7870 | ||
| Leaf spring No. | 10/12+9 | ||
| Approaching/Deparature Angle(° ) | 24/31 | ||
| Front/Rear Trace(mm) | 1940/1870 | ||
| Front/Rear Suspension(mm) | 1420/2065 | ||
| Max speed(km/h) | 80 | ||
| Gear Box | 8 speed gearbox | ||
| Hydraulic Drive Parameters | Stirring Volume(M3) | 5---6 | |
| Filling Rate(%) | 63% | ||
| Rate of Feeding(M3/min) | ≥ 3 | ||
| Rate of Delivery(M3/min) | ≥ 2.0 | ||
| The Remaining Rate(M3/min) | ≤ 1.0 | ||
| Tube Service Speed(r/min) | 0-12 | ||
| Tube Dip(° ) | 11-15 | ||
| Oil Pump | Import from Italy | ||
| Hydraulic Motors | |||
| Decelerator | |||

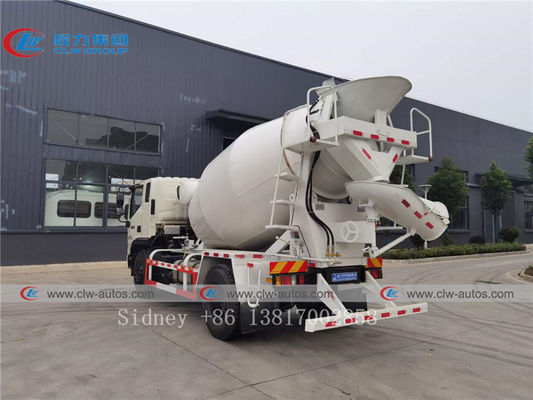

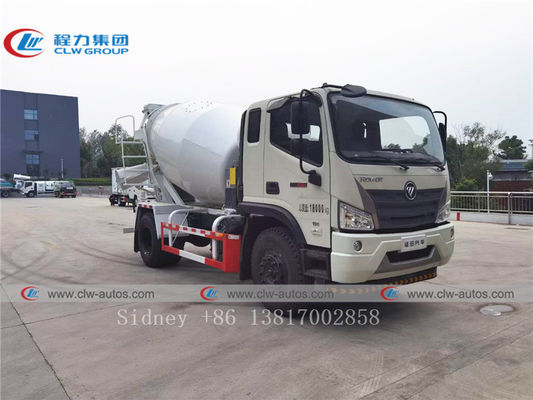

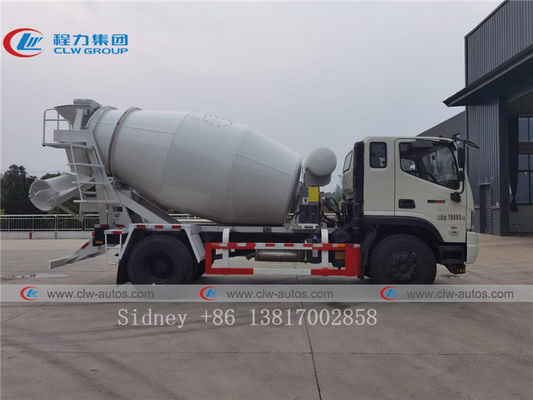

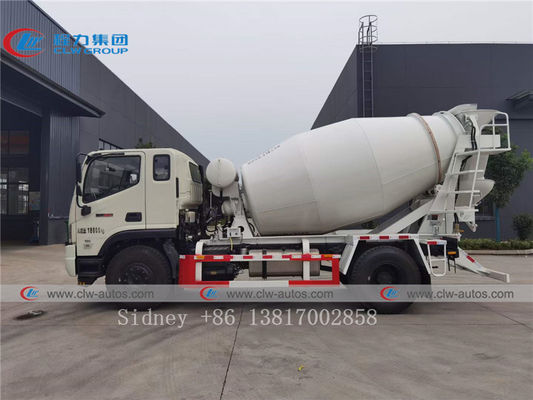

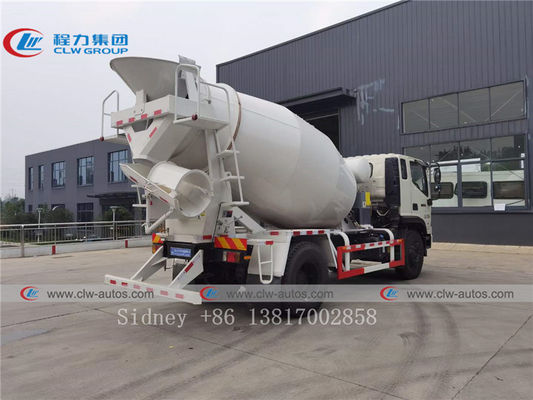

Reference Photos
Truck Diagram
Working Photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of concrete mixer trucks I can order from your company?
A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied concrete mixer truck to any overseas companies?
A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
