Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Chassis Brand: | Sinotruk Howo, Dongfeng, Foton, FAW, JAC, JMC, ISUZU, Etc. |
|---|---|---|---|
| Engine Brand: | Wd615.69, 336HP | Gearbox: | Fast,10forwards And 2reverse |
| Crane Brand: | SANY, XCMG, CHENGLI, Etc. | Crane Boom Type: | Straight Telescopic Crane, Knuckle Crane |
| Max. Lifting Load: | 8tons | Boom Type: | Straight 4-Arm Telescopic Boom |
| Cargo Material: | Q235 Carbon Steel | Cargo Thickness: | Side 2mm, Bottom 3mm |
| Feature: | Truck Crane | Application: | Construction,Truck Crane |
| Color: | DEPENDS | Origin: | 100% China |
| Warranty: | 1 Year | ||
| High Light: | Sinotruk HOWO Truck Mounted Crane,6x4 Truck Mounted Crane,10T Truck Mounted Boom Crane |
||
Description
1. Purpose: It is used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
Specification
| Truck Brand | SINOTRUK—HOWO | ||
| Chassis No | ZZ1257 | ||
| Cargo body size(LxWxH) | 6500x2650x600mm; floor3mm,side1.5mm | ||
| Dimension(Lx W xH) (mm) | 10350×2680×3900 | ||
|
Folding arm crane
|
Max.lifting capacity:10ton Max.lifting height:9.755m Max.lifting moment:20T.M Rotation angle:360°(all rotation) Oil flow of hydraulic system:40L/min Pressure of hydraulic system:28Mpa Oil tank capacity:160L Crane weight:3477kg Installation space:1150mm |
||
| Approaching angle/Departure angle(°) | 16/12 | ||
| Overhang(front/rear) (mm) | 1500/2875 | ||
| Wheel base (mm) | 4300+1350 | ||
| Max speed(km/h) | 102 | ||
| Curb weight(kg) | 14850 | ||
| Gross Vehicle weight(kg) | 25000 | ||
|
Engine
|
WD615.69, Inline 6 cylinders,supercharged intercooling,central supercharger,electric high pressure and common rail | ||
| Diesel | |||
| 336HP | |||
| Euro 2 | |||
| Transmission | Model | HW19710,10 forward&2 reverse | |
|
Brake system
|
Service brake | Dual circuit compressed air brake | |
| Parking brake |
spring energy, compressed air operating on rear wheels |
||
| Auxiliary brake | Engine exhaust brake | ||
|
Steering system
|
Model | ZF8198,hydraulic steering with power assistance | |
| Front axle | HF9 | ||
| Rear axle | HC16 | ||
| Tyre | 12R22.5, 10+1 spare | ||
|
Electrical system
|
Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cabin |
HW76 cab,one sleeper,with A/C all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
||

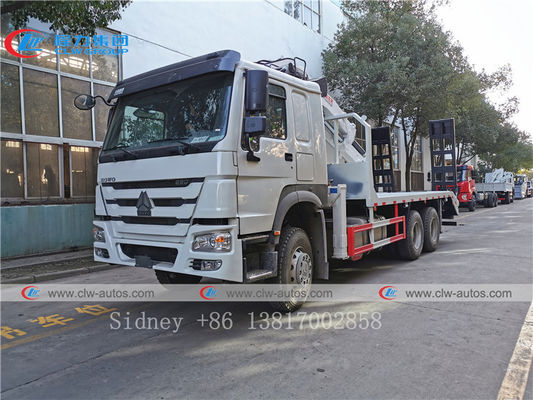

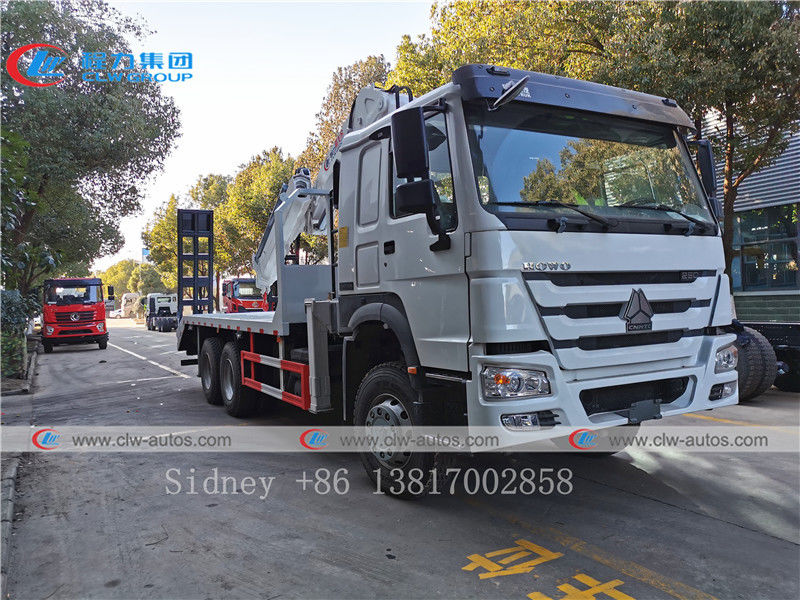

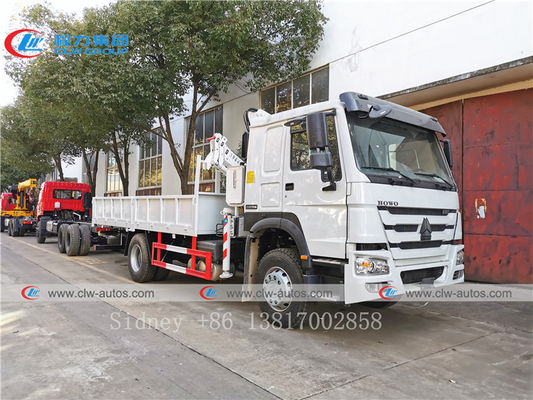

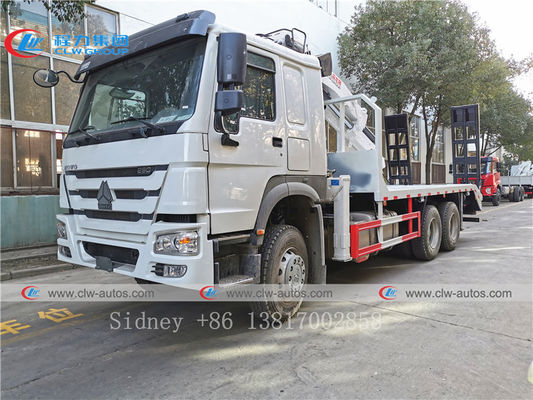

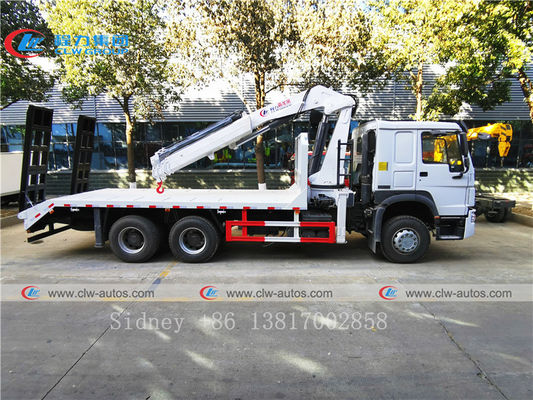

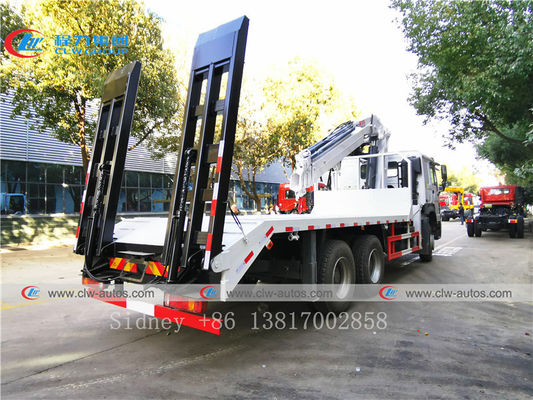

Reference Photos

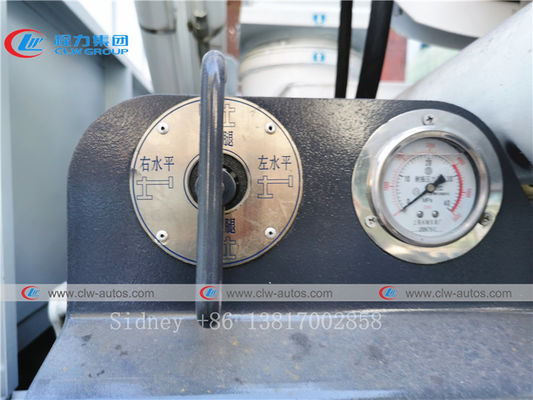

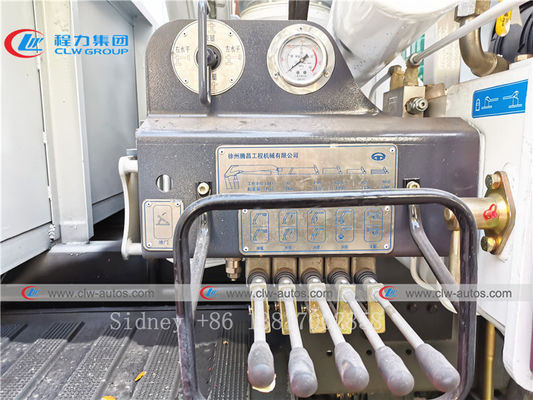

Crane Details
Working Situation
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
