Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Or Stainless Steel, Aluminum Alloy | Product Name: | Water Tank, Water Sprinkler Water Bowser Truck |
|---|---|---|---|
| Drive Type: | 6x4 10 Wheels, 10 Wheeler | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 18000 Liters 18000 Liters 18 Tons, 18tons, 18T, 18MT | Truck Brand: | CAMC |
| Tuck Function: | Water Delivery Transport, Water Spraying Washing | Equipment: | Front Praying, Rear Side Sprinkler, |
| Engine: | Cummins Brand, Or Weichai | Others: | With Water Pump |
| High Light: | CAMC Water Sprinkler Truck,18cbm Water Sprinkler Truck,6x4 Watering Truck |
||
CAMC 6x4 10 wheels 18000L 18 tons 18cbm Watering Tank Water Sprinkler Truck With Water Bowser
Product Description
Water tank truck is produced for transportation and distribution of industrial and drinking water, spraying and washing of streets and tunnels, dust and environmental control and fire-fighting purposes.In order to achieve those different operations, each water tank truck could be equipped with various components to realize different function.
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck: High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
product Specification
| Chassis Specification | ||||
| Item No. | Parameters | |||
| Chassis Brand | CAMC | Overall Dimension | 9800×2500×3250mm | |
| Gross Vehicle Weight | 28950 kg | Curb Weight | 8950 kg | |
| Loading Weight | 20000 Kg | Wheel Base | 4400 + 1350 mm | |
| Cabin | Row and half, Left Hand Driving | |||
| Engine | 375HP | |||
| Overhang( Front/Rear) | 1140/1810(mm) | |||
| Fuel type | Diesel | |||
| Axle load | 7000/13000/13000 (kg) | |||
| Angle(Approach/departure) | 16/22(°) | |||
| Transmission/Gearbox | 10 Forward & 2 Reverse Gear | |||
| Brake System | Pneumatic | |||
| Steering Gear | Power Assistant | |||
| Tire | 12R22.5, 10 Pieces with 1 spare tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Water Tanker | Tank Volume | 20000 Liters / 20m3 | ||
| Tank Material | 5mm Q235B Carbon Steel | |||
| Sprinkling System: | Suction height of Truck Pump | >7m | ||
| Full Tank Suction Time | <15 minutes | |||
| Sprinkling width of front/rear/side Sprinkler | ≥14m | |||
| Range of Water Cannon | ≥28m | |||
| Remarks | Other Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs | |||

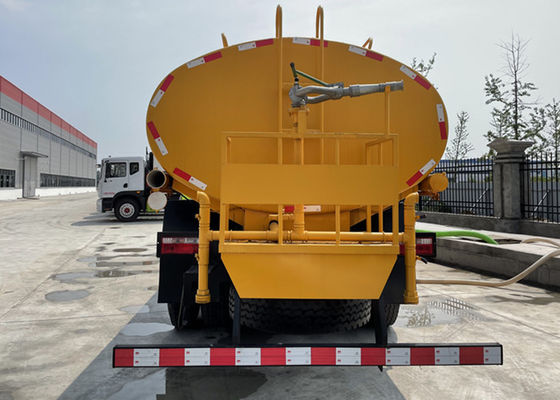

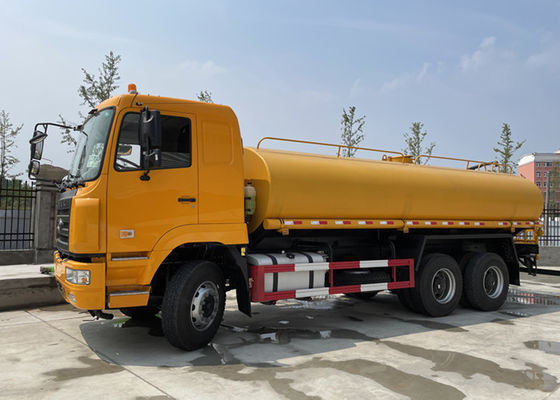

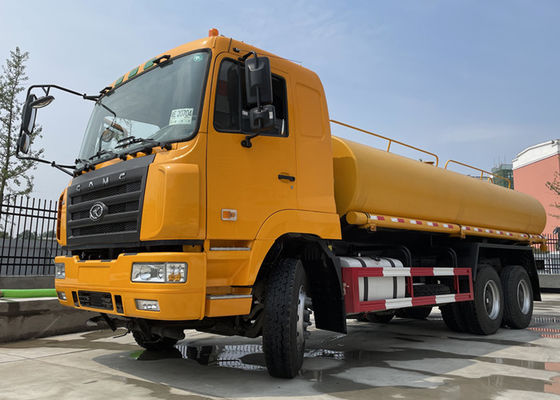

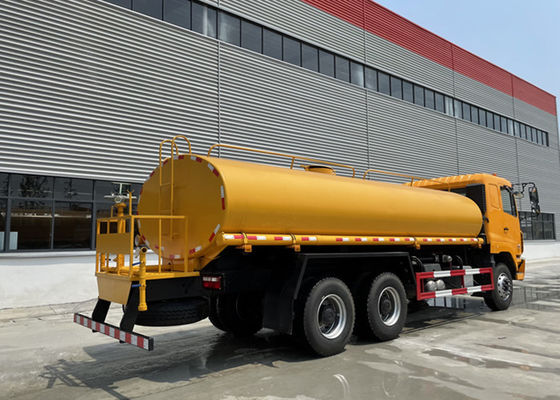

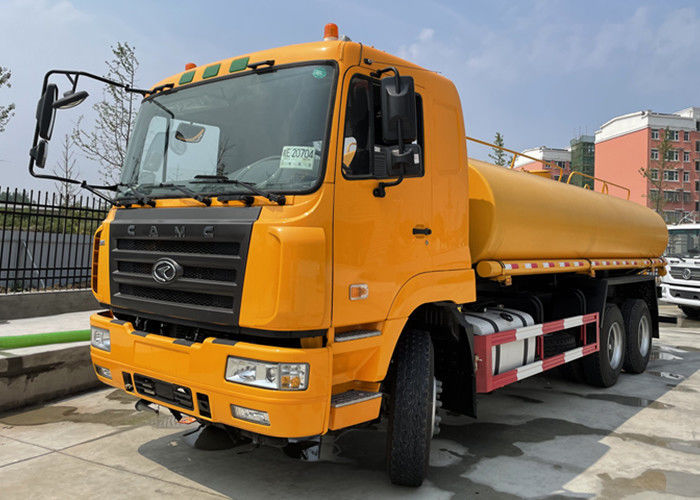

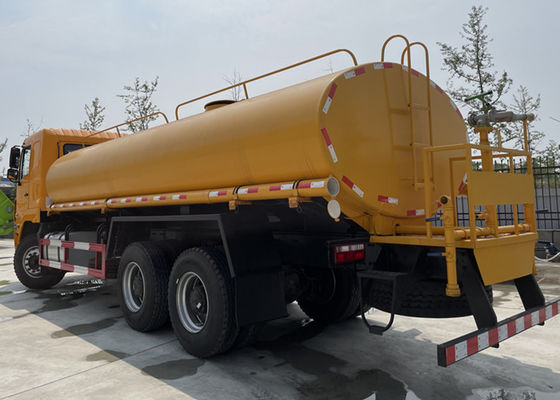

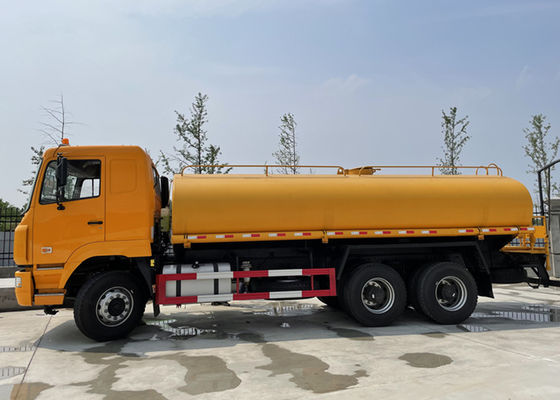

More Pcitures for CAMC 6x4 10 wheels 18000L 18 tons 18cbm Watering Tank Water Sprinkler Truck With Water Bowser
Different Capacity of Water Tanker:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
FAQ
Q: Can I buy a sample of your product for testing?
A.Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
